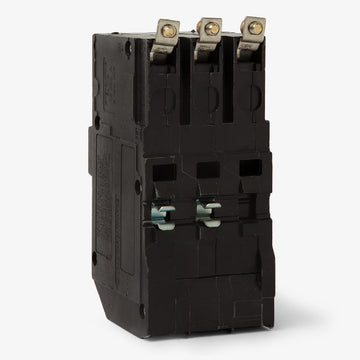

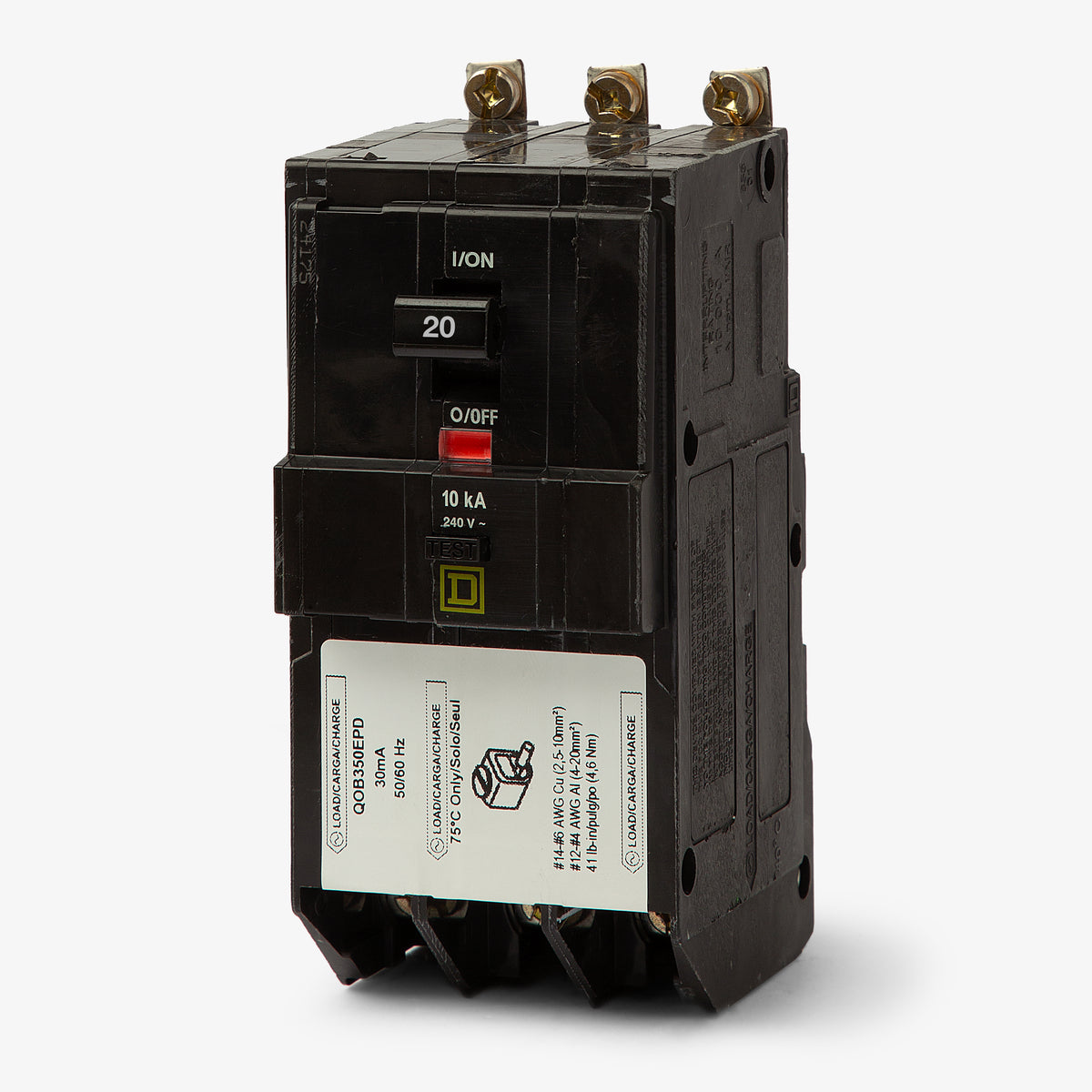

Schneider Electric / Square D QOB320EPD GFEP Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Schneider Electric / Square D
QOB320EPD
GFEP Miniature Circuit Breaker
Brand
Schneider Electric / Square D
SKU
QOB320EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Square D QOB320EPD - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
50A GFEP Miniature Circuit Breaker
Description

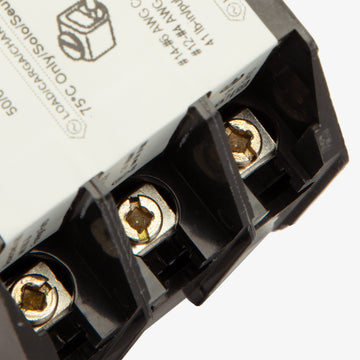

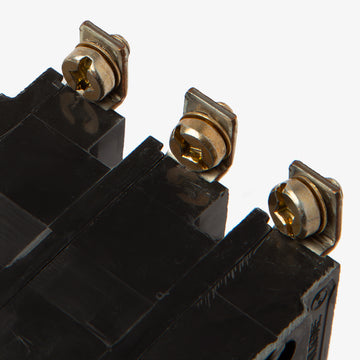

Built for commercial applications, the Square D QOB320EPD delivers 30mA ground-fault equipment protection (GFEP). This 3-pole, 20A miniature circuit breaker is designed to prevent machinery damage from low-level ground faults. It mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. The pressure plate terminals accept 14-8 AWG copper or 12-8 AWG aluminum wiring. Rated for 10kA at 240VAC, it features a Visi-Trip indicator for fast identification of tripped circuits.Specifications
| Brand | Schneider Electric / Square D |
|---|---|
| Part Number | QOB320EPD |
| Series | QOB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersCan I install the QOB320EPD in a standard QO load center?
No. The QOB320EPD is a bolt-on circuit breaker designed specifically for Square D NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
What does the EPD designation mean on this breaker?
EPD stands for Equipment Protection Device. It indicates the breaker includes integral ground fault protection calibrated at a 30mA trip threshold. This is designed to prevent equipment damage from low-level ground faults, rather than providing the 5mA personnel protection found in standard Class A GFCI breakers.
How many panel spaces does the QOB320EPD require?
This 3-pole miniature circuit breaker requires three standard spaces in an NQ or NQOD panelboard.
How is the neutral connection handled on the QOB320EPD?
This breaker includes a pigtail neutral wire that must be connected directly to the neutral bar in the panelboard to ensure the ground fault equipment protection functions correctly.
Does this breaker include a tripped circuit indicator?
Yes, the QOB320EPD features the Square D Visi-Trip indicator, which provides a clear visual flag when the breaker has tripped due to an overcurrent or ground fault condition.
