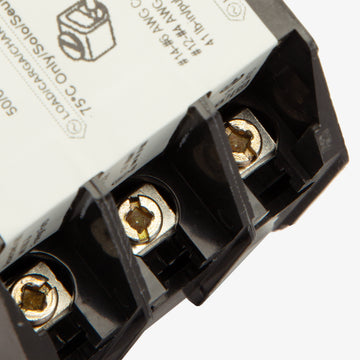

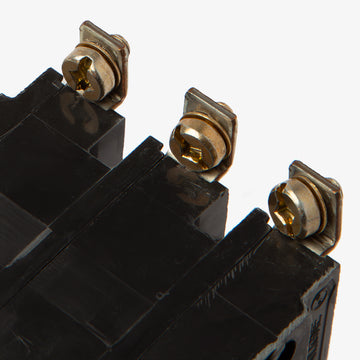

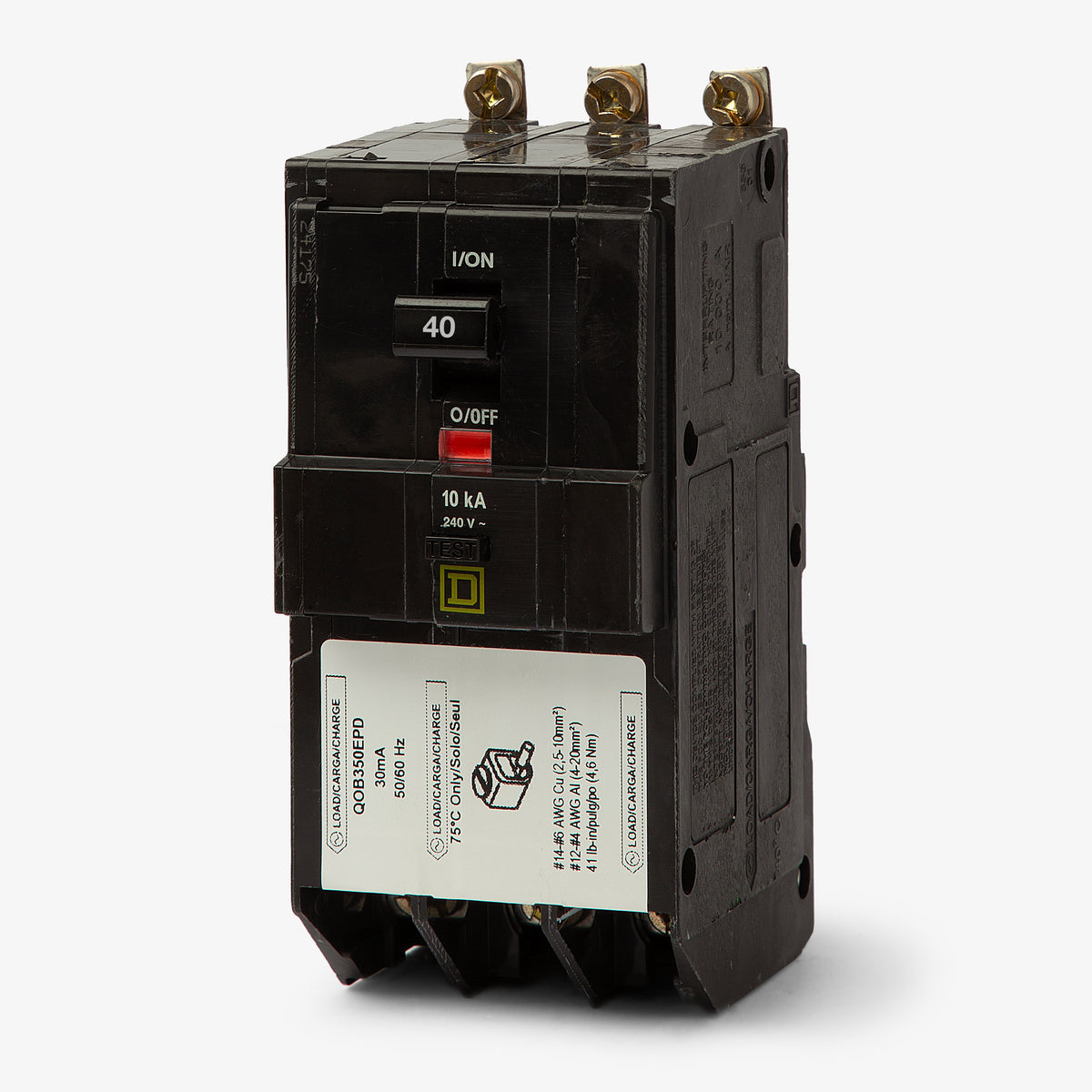

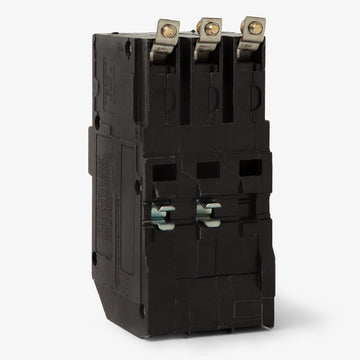

Square D QOB340EPD GFEP Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Square D
QOB340EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB340EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB340EPD - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFEP Miniature Circuit Breaker
Schneider Electric / Square DQOB320EPD
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Shielding critical three-phase loads from electrical damage, this 40A equipment protection device features a specialized 30mA ground fault trip threshold. The bolt-on mounting style guarantees a robust connection within Square D NQ and NQOD panelboards, preventing loose seating in high-vibration commercial settings. With a 10kA interrupting capacity at 240VAC and a built-in Visi-Trip flag, facility managers gain enhanced safety and rapid visual diagnostics during fault events.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB340EPD |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, RoHS Compliant, Mercury Free |
Product FAQs
6 answersWhich panelboards are compatible with the QOB340EPD circuit breaker?
This bolt-on breaker is designed exclusively for Square D NQ and NQOD panelboards. It will not fit in standard QO load centers, which require plug-on breakers.
How many panel spaces does the QOB340EPD require?
This 3-pole breaker requires three standard 0.75-inch spaces in an NQ or NQOD panelboard.
What is the ground fault trip sensitivity for this breaker?
The QOB340EPD is an Equipment Protection Device (EPD) with a 30mA ground fault trip threshold. It is designed to protect machinery and equipment from low-level faults, not for Class A personnel protection which requires a 5mA threshold.
Does this breaker require a neutral connection?
Yes, it features a pigtail neutral that must be connected to the panelboard neutral bar for the ground fault equipment protection (GFEP) circuitry to function correctly.
How can I tell if the QOB340EPD has tripped due to a fault?
This breaker includes the Square D Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a highly visible red flag appears in the indicator window, allowing for rapid identification of the tripped circuit.
What is the difference between the QOB340EPD and the QO340EPD?
The QOB340EPD features a bolt-on connection for NQ and NQOD panelboards, while the QO340EPD has a plug-on connection for standard QO load centers. Their electrical ratings and 30mA equipment protection capabilities are identical.
