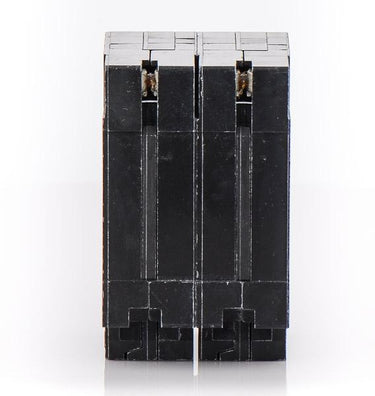

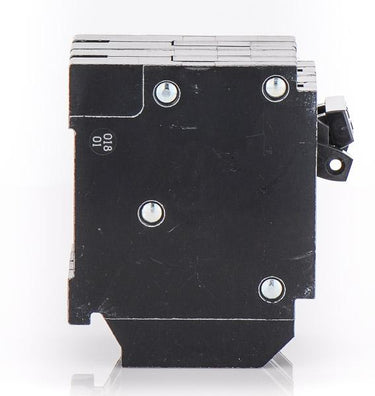

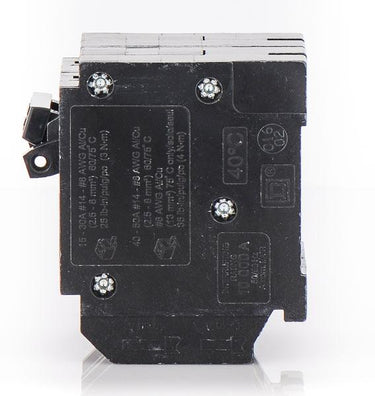

Square D HOMT2020230 20/30A Quad Tandem Miniature Circuit Breaker
- 20/30A
- 4 Pole
- Plug-On
Square D
HOMT2020230
20/30A Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT2020230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT2020230 - 20/30A Quad Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOMT2020230 - 20/30A Quad Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOMT2020230 |
| Series | HOMT |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Square D HOMT2020230 - 20/30A Quad Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOMT2020230-R |
| Series | HOMT |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
15/30A Quad Tandem Miniature Circuit Breaker
30/30A Quad Tandem Miniature Circuit Breaker
15/25A Quad Tandem Miniature Circuit Breaker
Description

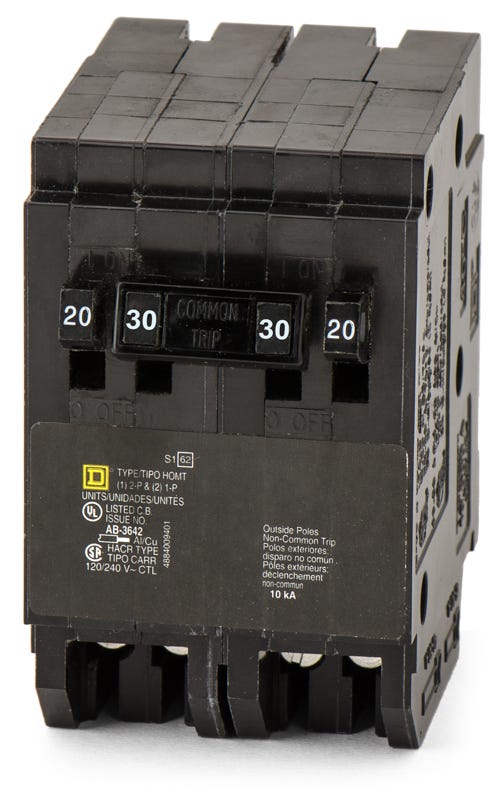

Maximizing panelboard real estate, the HOMT2020230 offers four circuits in a compact form. It features two 20A single-pole outer circuits and a 30A double-pole inner circuit. This plug-on breaker mounts into Square D Homeline load centers. Occupying only two spaces, it provides an ideal solution for fully populated residential panels. Rated 10kAIC at 120/240V, it relies on proven thermal-magnetic trip mechanisms. The center poles feature a common trip function, and the unit is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOMT2020230 |
| Series | HOMT |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
8 answersHow many panel spaces does the HOMT2020230 require?
This quad tandem breaker requires two standard 1-inch spaces in a compatible Square D Homeline load center.
What is the internal pole configuration of this quad breaker?
The HOMT2020230 features two independent 1-pole 20A outer circuits and one 2-pole 30A inner circuit with a common trip mechanism.
Can I install the HOMT2020230 in a Square D QO or standard Siemens panel?
No, this breaker is exclusively designed for Square D Homeline load centers that are rated to accept tandem breakers. It is not interchangeable with QO, Siemens, or other panel brands.
What wire sizes and materials are accepted by the terminals on this breaker?
The box lugs on this breaker are rated to accept 14 AWG to 8 AWG copper or aluminum conductors.
Is there an alternate catalog number for the retail packaged version of this breaker?
Yes, the HOMT2020230CP is the exact same circuit breaker, but it is sold in retail blister packaging.
Is the HOMT2020230 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Are the inner and outer poles on this breaker tied together?
The 30A inner poles feature a common trip function for 240V applications. The 20A outer poles operate as independent 120V circuits and do not have a handle tie.
Does this breaker support Class CTL load centers?
Yes, this is a Class CTL (Circuit Total Limiting) breaker. It includes a physical rejection feature that prevents it from being installed in panel spaces not specifically designed to accept tandem breakers.
