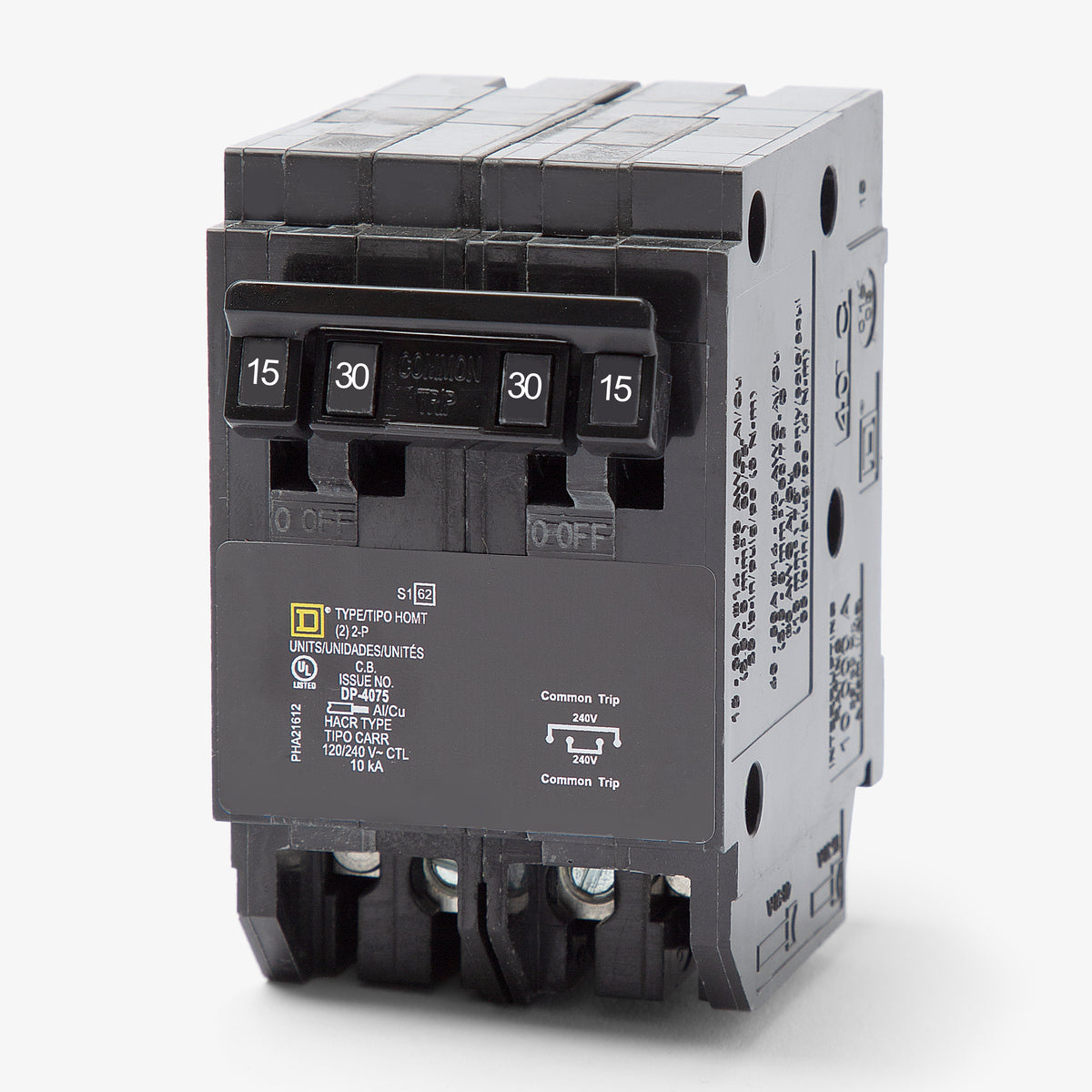

Square D HOMT215230 15/30A Quad Tandem Miniature Circuit Breaker
- 15/30A
- 4 Pole
- Plug-On
Square D
HOMT215230
15/30A Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT215230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT215230 - 15/30A Quad Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
20/30A Quad Tandem Miniature Circuit Breaker
30/30A Quad Tandem Miniature Circuit Breaker
15/25A Quad Tandem Miniature Circuit Breaker
Description
Part of the Homeline family, the Square D HOMT215230 integrates a 15A 2-pole and a 30A 2-pole breaker into one quad tandem package. This supplies multiple loads from a minimal footprint. The plug-on design installs into Square D Homeline load centers. Fitting four poles into two spaces provides exceptional flexibility for residential retrofits. Featuring a 10kAIC capacity at 120/240VAC, this breaker includes common trip functionality. It is UL listed and HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Series | HOMT |
| Amperage | 15/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quad Tandem, Common Trip |
Product FAQs
6 answersHow are the 15A and 30A circuits configured on the HOMT215230?
This quad tandem breaker provides two independent 2-pole circuits in a two-space footprint. The outer poles form a 15A 2-pole circuit, and the inner poles form a 30A 2-pole circuit. Both feature common trip functionality.
Which electrical panels are compatible with the HOMT215230 quad tandem breaker?
This breaker is designed exclusively for Square D Homeline load centers and CSED devices that accept tandem breakers. It is not compatible with Square D QO panels or load centers from other manufacturers.
How many panel spaces does the HOMT215230 require?
This quad tandem breaker requires two standard 1-inch spaces in a Homeline load center to provide four poles of overcurrent protection.
Is the HOMT215230 suitable for use with air conditioning and heating equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a dedicated 15A or 30A 2-pole circuit.

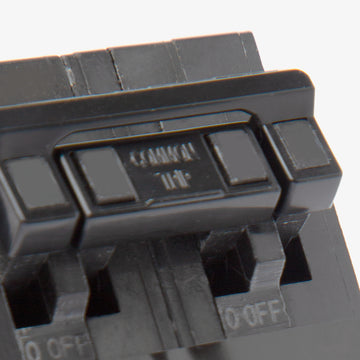

Does this quad breaker feature a common trip mechanism?
Yes, both the 15A outer circuit and the 30A inner circuit have independent common trip mechanisms. If one leg of either 2-pole circuit experiences a fault, both legs of that specific circuit will trip simultaneously.
Can I install this quad tandem breaker in any slot within my Homeline panel?
It must be installed in panel slots designated for tandem breakers. Check your load center wiring diagram to verify which spaces accept tandem or quad breakers.
