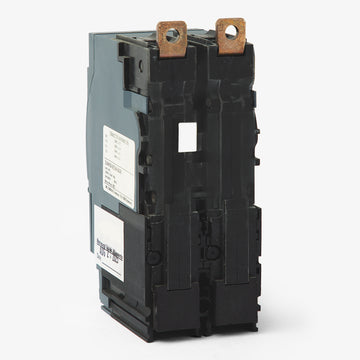

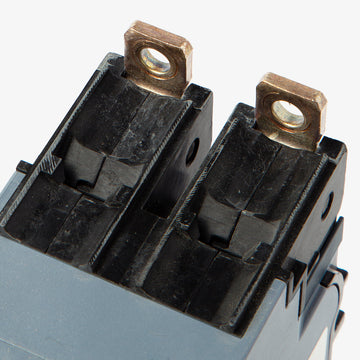

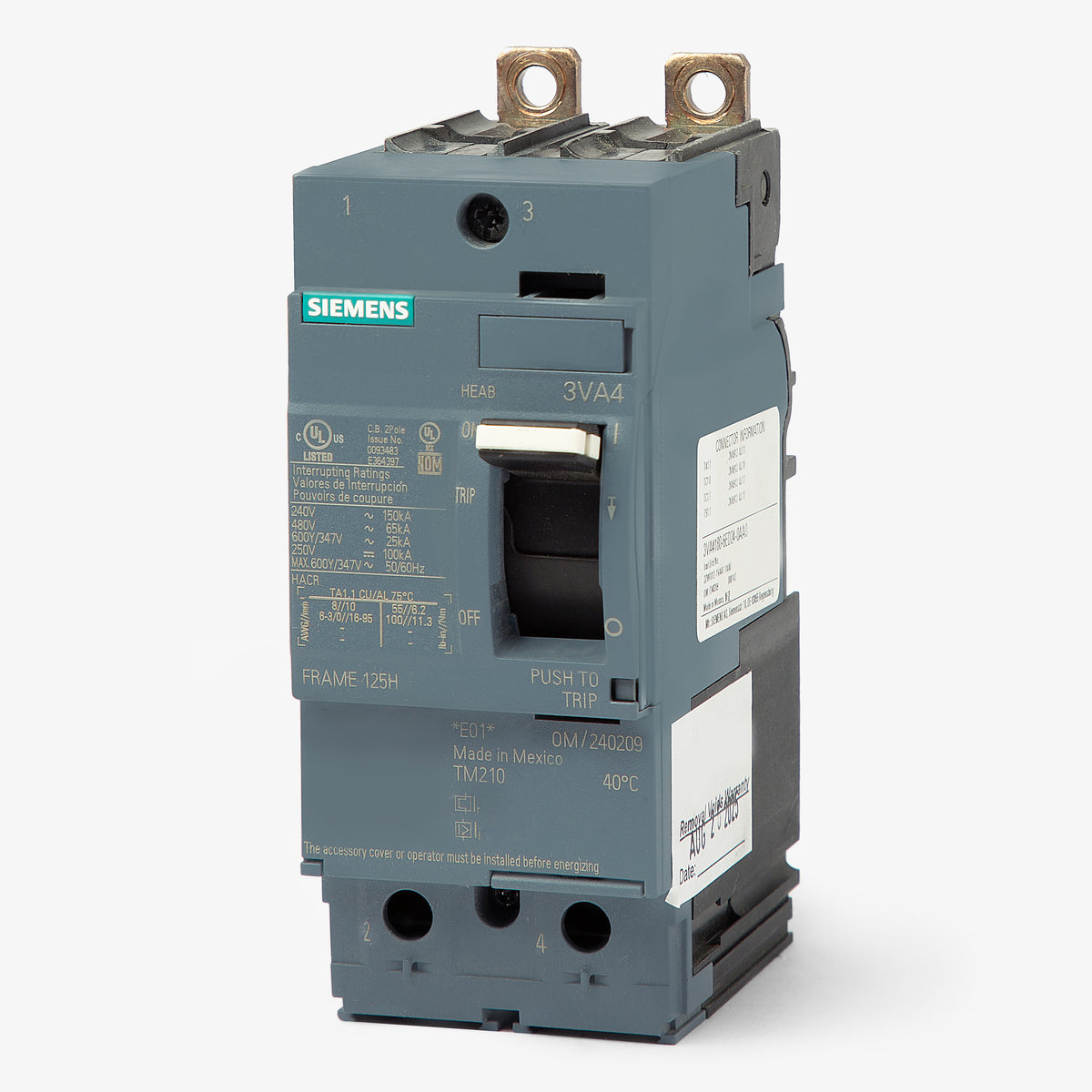

Siemens 3VA4110-6ED24-0AA0 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
3VA4110-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4110-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4110-6ED24-0AA0 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON 3VA4 series, this 100A, 2-pole molded case circuit breaker provides robust power distribution for commercial and industrial facilities. It features fixed thermal and magnetic trip settings for dependable LI protection. Designed for bolt-on installation, this unit mounts into Siemens P1, P2, and P3 panelboards. It serves as a direct replacement for legacy HEAB series breakers. Rated 65kA at 480VAC, this current-limiting breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4110-6ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the Siemens 3VA4110-6ED24-0AA0?
This 100A bolt-on circuit breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. It requires the appropriate mounting strap kit for your specific panel type.
What wire sizes do the factory-installed lugs accept on this breaker?

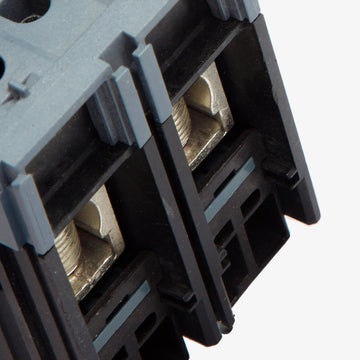

The load-side lugs on this 3VA41 frame breaker accept copper or aluminum (Cu/Al) wire gauges ranging from 14 AWG to 3/0 AWG.
Can the 3VA4110-6ED24-0AA0 replace older Siemens breakers?
Yes, this SENTRON 3VA4 series breaker serves as a direct replacement for legacy Siemens HEAB series and ED-frame (such as the ED42B100) 100A, 2-pole breakers in existing panelboards.
Is this breaker suitable for direct current (DC) applications?
Yes, the 3VA4110-6ED24-0AA0 is rated for use on DC systems up to 250VDC, providing an interrupting capacity of 100kAIC at 250VDC.
Can the Siemens 3VA4110-6ED24-0AA0 be reverse fed?
Yes, this thermal-magnetic molded case circuit breaker is UL listed for reverse feed applications, allowing it to be back-fed without compromising its protective functions.
Are the trip settings adjustable on this 100A breaker?
No, this breaker features a TM210 thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) trip settings.
Is this Siemens 100A breaker HACR rated?
Yes, the 3VA4110-6ED24-0AA0 is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment group motor circuits.
