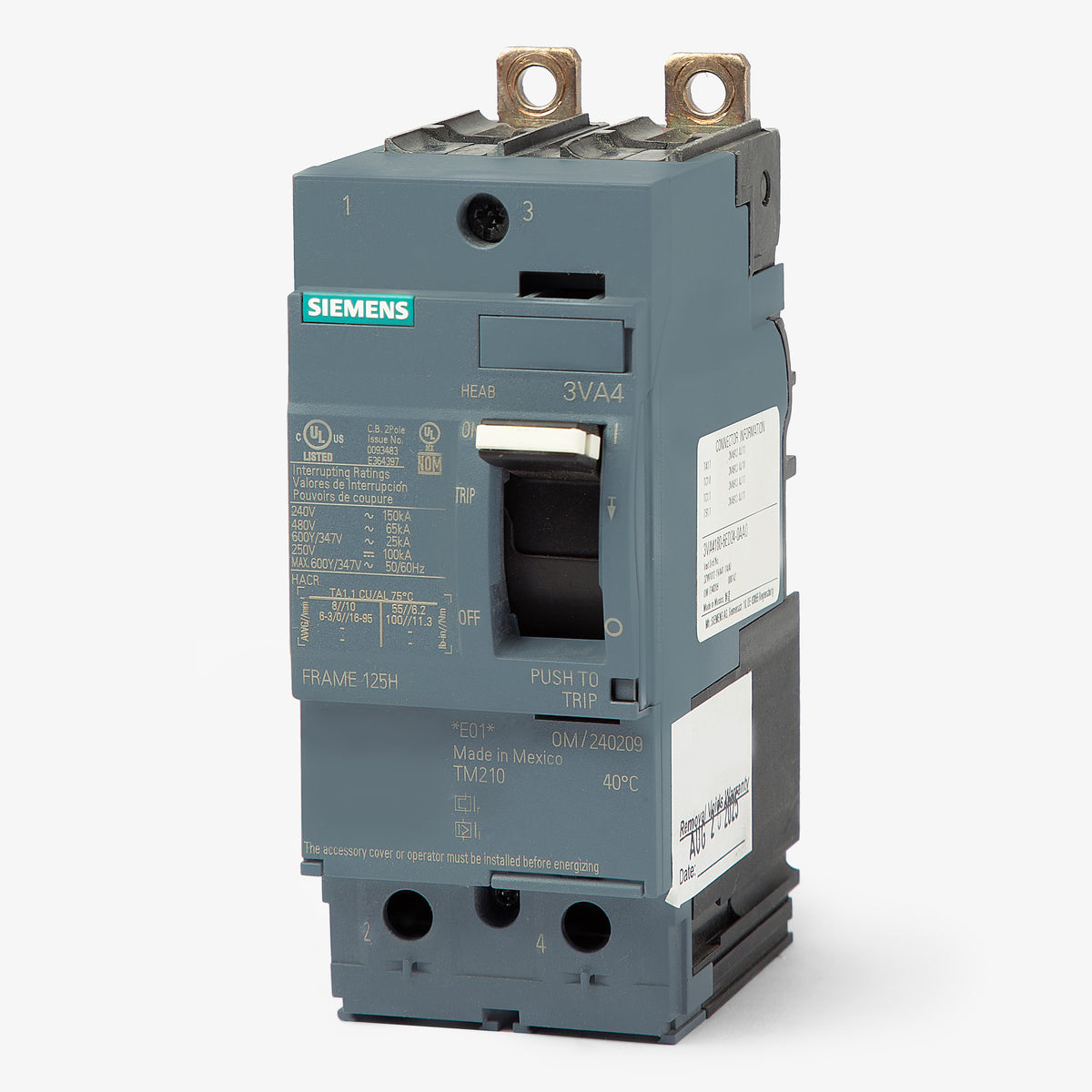

Siemens 3VA4170-6ED24-0AA0 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
3VA4170-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4170-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4170-6ED24-0AA0 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Built for high-fault environments, this 70-amp Sentron 3VA4 breaker offers robust thermal-magnetic trip functions with a 65kAIC rating at 480VAC. It fits into Siemens P1, P2, P3, P4, and P5 panelboards as well as compatible switchboards. Serving as an exact replacement for older HED42B070 and HHED62B070 models, the device ensures minimal downtime during facility upgrades. Current limiting technology and reverse feed capability add installation versatility.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
8 answersWhich Siemens panelboards are compatible with the 3VA4170-6ED24-0AA0?
This 3VA41 frame breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
What wire sizes and materials are accepted by the lugs on this breaker?

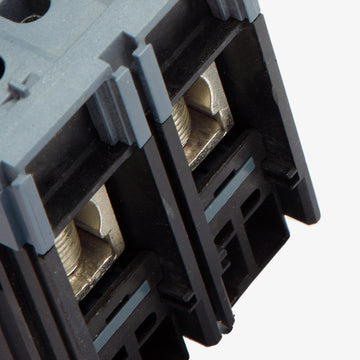

The factory-installed lugs accept 8 AWG to 3/0 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Can this 2-pole breaker be used in DC applications?
Yes, the 3VA4170-6ED24-0AA0 is rated for DC applications up to 250V DC, providing an interrupting capacity of 100kA at that voltage.
What does the LI trip function indicate on this 3VA4 breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both thermal and magnetic trip settings are fixed on this specific model.
How does the 3VA4170-6ED24-0AA0 mount into the panelboard?

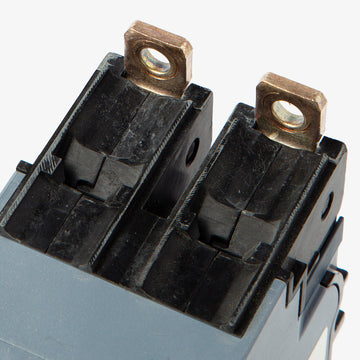

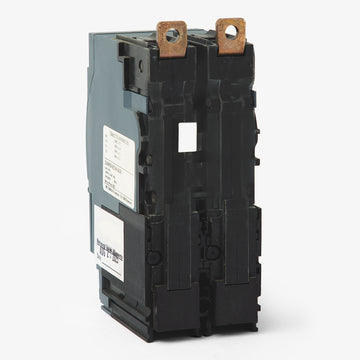

This is a bolt-on molded case circuit breaker. It secures directly to the panelboard bus using bolted connections rather than a plug-in or DIN rail mounting method.
Which older Siemens breakers does the 3VA4170-6ED24-0AA0 replace?
This 3VA4 series breaker serves as a direct replacement for legacy HED42B070 and HHED62B070 models, offering upgraded current limiting technology while fitting the same panelboard applications.
Is this breaker suitable for use on a 480V system with high fault current?
Yes, it features a high interrupting rating of 65kAIC at 480V AC, making it suitable for commercial and industrial systems with substantial available fault current.
Can the 3VA4170-6ED24-0AA0 be reverse fed?
Yes, this breaker features reverse feed capability, allowing for versatile installation options when wiring the line and load connections.
