Siemens 3VA4190-6ED24-0AA0 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
3VA4190-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4190-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

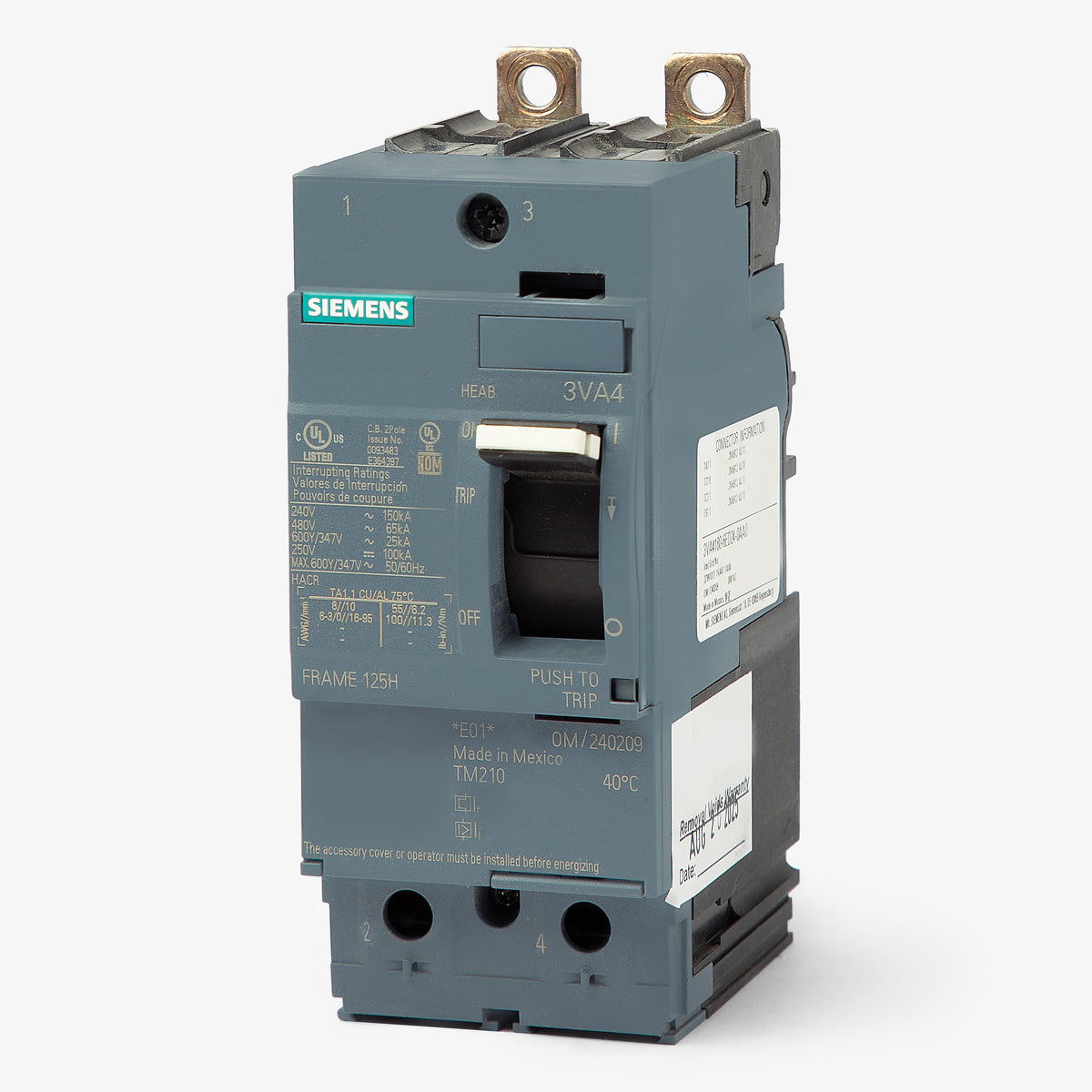

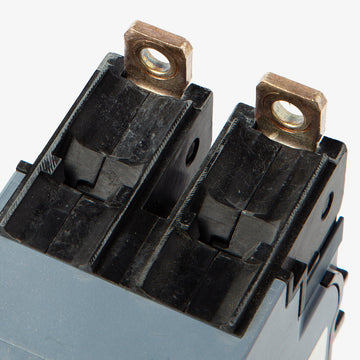

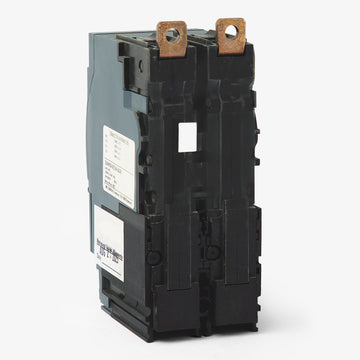

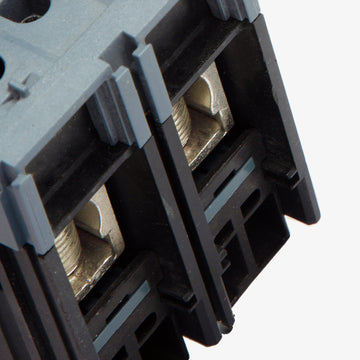

Siemens 3VA4190-6ED24-0AA0 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
A high-performance solution for industrial facilities, the Siemens 3VA4190-6ED24-0AA0 is a 90A, 2-pole molded case circuit breaker. It is equipped with a TM210 thermal-magnetic trip unit for reliable overload and short-circuit mitigation. This bolt-on breaker mounts into Siemens P1, P2, and P3 panelboards, effectively replacing the legacy HHED62B090 frame. With a Class H interrupting rating of 65kAIC at 480V, it offers superior current-limiting capabilities and reverse feed operation.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the 3VA4190-6ED24-0AA0 circuit breaker?
This bolt-on breaker is designed for use with Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
What wire sizes and materials are supported by the terminal lugs on this breaker?
The factory-installed lugs accept wire gauges from 8 AWG up to 3/0 AWG. They are rated for both copper (Cu) and aluminum (Al) conductors.
Can the 3VA4190-6ED24-0AA0 be used in DC voltage applications?
Yes, this thermal magnetic breaker is rated for DC applications, providing an interrupting capacity of 100kA at 250V DC.
What does the LI trip function specify for this 3VA41 frame breaker?
The LI designation indicates Long-Time and Instantaneous trip functions. On this specific model, both the thermal (overload) and magnetic (short circuit) trip settings are fixed.
What frame family does the 3VA4190-6ED24-0AA0 belong to?
It is part of the Siemens SENTRON 3VA molded case circuit breaker family, specifically utilizing the 3VA41 frame type.
