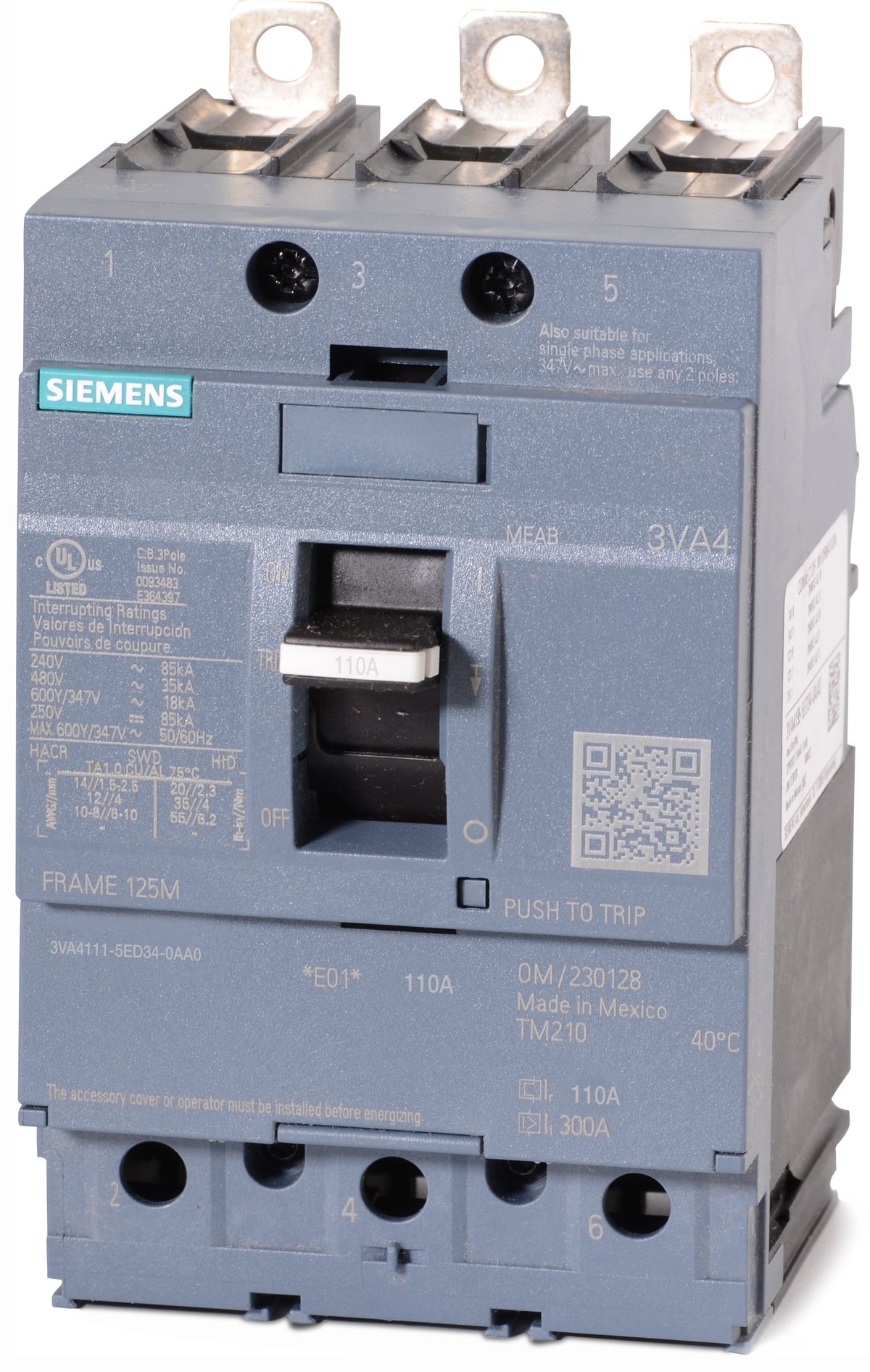

Siemens 3VA4111-5ED34-0AA0 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
Siemens
3VA4111-5ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4111-5ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4111-5ED34-0AA0 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, this 110-amp Sentron breaker provides reliable long-time and instantaneous trip functions. It integrates into Siemens P1, P2, and P3 panelboards or switchboards requiring robust power distribution. This model acts as a modern upgrade for discontinued HED43B110 breakers. The bolt-on configuration includes standard load side lugs and supports reverse feeding. With a 35 kAIC rating at 480VAC, it offers excellent current-limiting performance.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting |
Product FAQs
7 answersWhat panelboards are compatible with the 3VA4111-5ED34-0AA0 circuit breaker?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.
Can the 3VA4111-5ED34-0AA0 be used to replace older Siemens breakers?
Yes, this 3VA41 frame breaker serves as a modern upgrade and direct replacement for the discontinued HED43B110 circuit breaker.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed load side lugs accept wire gauges from 14 AWG up to 3/0 AWG. Ensure proper torque specifications are followed during installation.
What does the LI trip function indicate on this breaker?
The LI designation means this thermal-magnetic breaker features fixed Long-Time (L) overload protection and fixed Instantaneous (I) short-circuit protection.
Can this breaker be used in DC applications?
Yes, it is rated for up to 250VDC with an interrupting capacity of 85kA, making it suitable for specific direct current systems.
Is this a bolt-on or plug-in breaker?
This is a bolt-on molded case circuit breaker, requiring a bolted connection to the panelboard bus for secure electrical contact.
What frame size does the 3VA4111-5ED34-0AA0 belong to?
It is part of the Siemens 3VA41 frame group, which encompasses breakers up to 125A within the SENTRON family.
