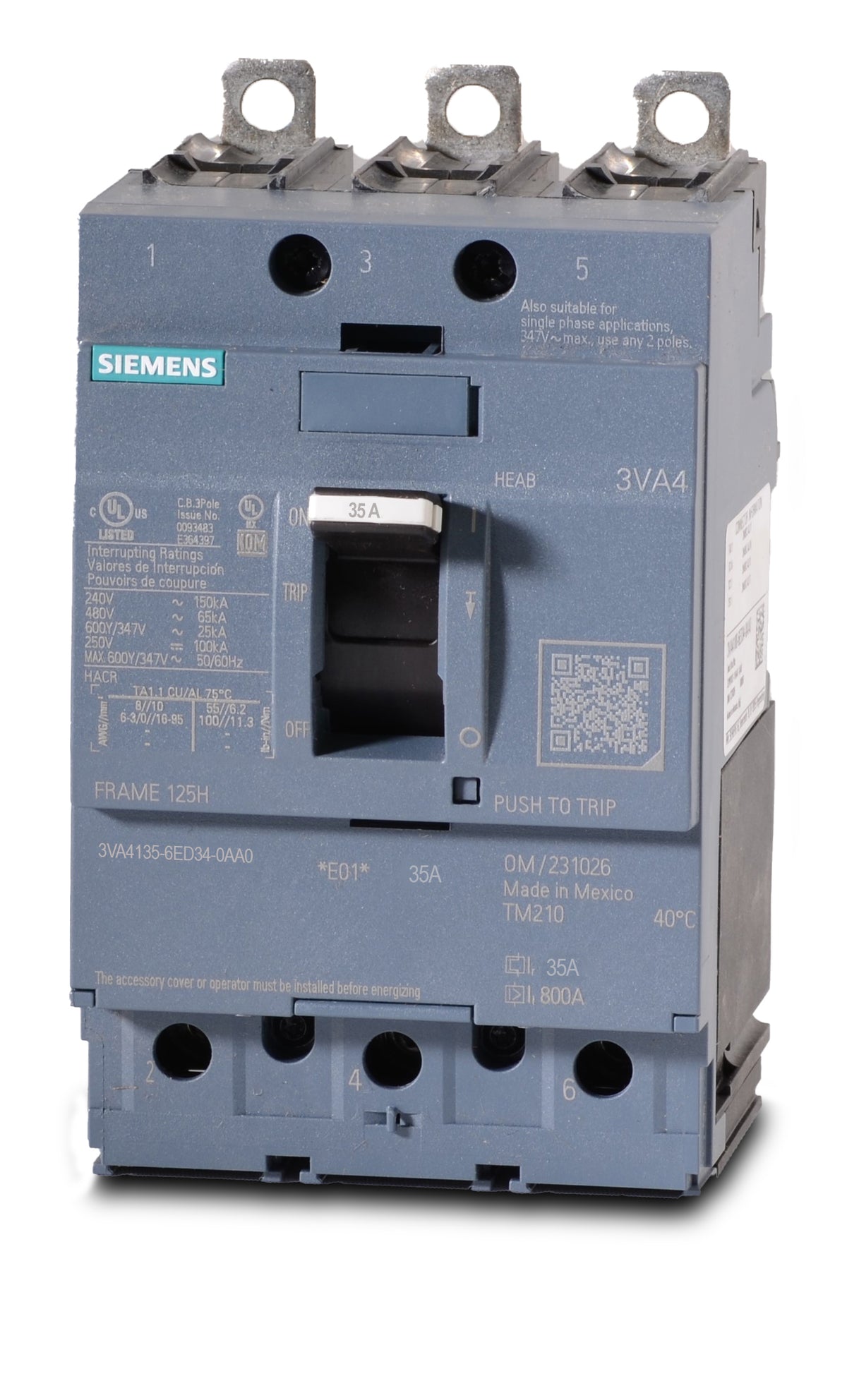

Siemens 3VA4135-6ED34-0AA0 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Siemens
3VA4135-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4135-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4135-6ED34-0AA0 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4135-6ED34-0AA0 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Sold out
Quantity
Siemens 3VA4135-6ED34-0AA0 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built to handle three-phase power distribution, this 35A molded case circuit breaker provides reliable long-time and instantaneous protection. It fastens securely into Siemens P1, P2, P3, P4, and P5 panelboards, acting as a modern substitute for HED43B035 and HHED63B035 units. The 3VA4 frame device delivers 65kAIC at 480VAC and 100kAIC at 240VAC for robust fault clearing. Current limiting capabilities and a reverse feed design make it highly adaptable for complex commercial setups.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the 3VA4135-6ED34-0AA0 breaker?
This 3VA41 frame breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards. Proper mounting hardware or strap kits may be required depending on the specific panelboard type.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 14 AWG to 8 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors. Ensure proper torque specifications are followed during installation.
Can the 3VA4135-6ED34-0AA0 be used in DC voltage applications?
Yes, this breaker is rated for DC applications up to 250V DC, where it provides an interrupting capacity of 100kA.
Are the thermal and magnetic trip settings adjustable on this 35A breaker?
No, the 3VA4135-6ED34-0AA0 features a fixed thermal and fixed magnetic trip unit (LI). Neither the long-time nor the instantaneous trip functions can be adjusted in the field.
What is the maximum interrupting rating for this breaker in a 480V system?
In a 480V AC or 480Y/277V AC system, this breaker provides a maximum interrupting rating of 65kAIC. It must be installed in systems where the available fault current does not exceed this value.
Does this breaker mount onto a standard DIN rail?
No, the 3VA4135-6ED34-0AA0 is a bolt-on molded case circuit breaker. It requires bolted connections to the panelboard bus and is not designed for DIN rail mounting.
What type of protection does the LI trip function code indicate?
The LI designation means the breaker provides Long-Time (thermal) overload protection and Instantaneous (magnetic) short-circuit protection. This is standard for general-purpose thermal-magnetic breakers.
