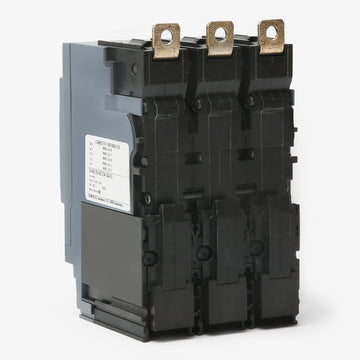

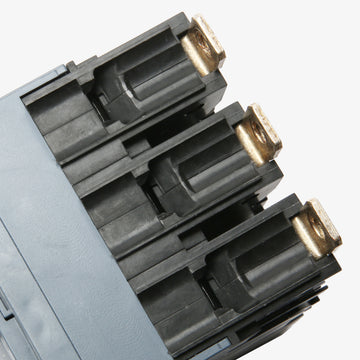

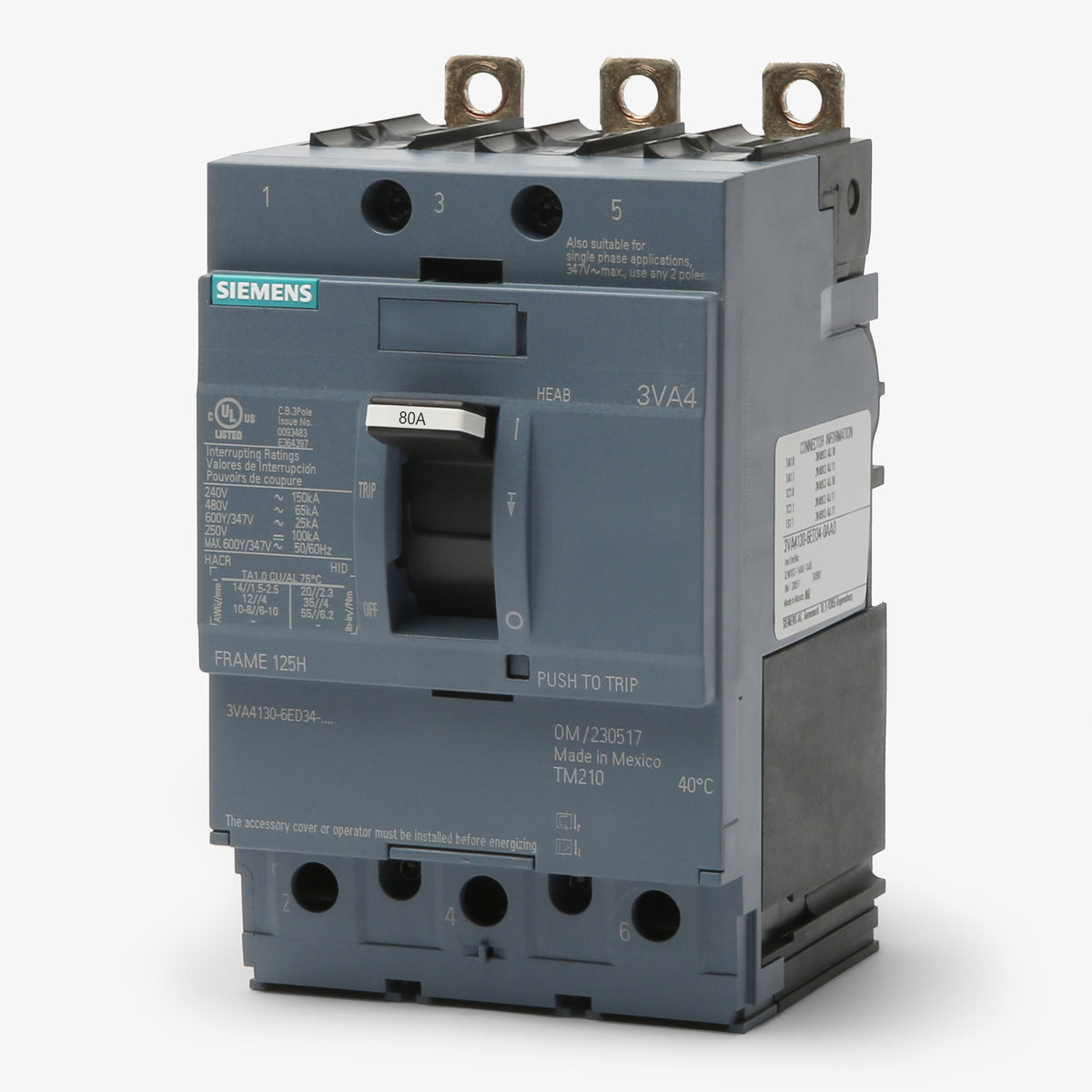

Siemens 3VA4180-6ED34-0AA0 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
3VA4180-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4180-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4180-6ED34-0AA0 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4180-6ED34-0AA0 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4180-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB11) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Sold out
Quantity
Siemens 3VA4180-6ED34-0AA0 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB11) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial applications, the Siemens 3VA4180-6ED34-0AA0 is a 3-pole molded case circuit breaker with a 3VA4 UL 125 frame. It utilizes a TM210 fixed thermal-magnetic trip unit to provide dependable long-time and instantaneous (LI) protection for 80A circuits. This bolt-on breaker mounts into Siemens P1, P2, and P3 panelboards. It serves as an exact replacement for the legacy HHED63B080. It features a 65kAIC rating at 480V, reverse feed capability, and HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4180-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (3VA9133-0JB11) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich legacy Siemens breaker does the 3VA4180-6ED34-0AA0 replace?
This 3VA4 model serves as an exact direct replacement for the legacy Siemens HHED63B080 molded case circuit breaker.
What panelboards are compatible with this bolt-on breaker?
It is designed for mounting directly into Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the line and load connections be reversed during installation?
Yes, this unit features reverse feed capability, allowing flexibility for line or load terminations at either end of the breaker.

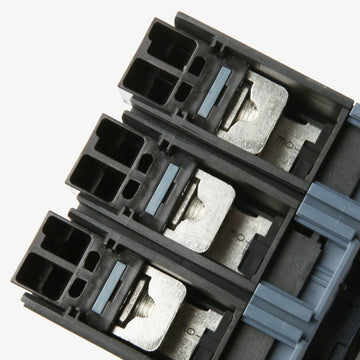

What conductor sizes and materials do the included lugs support?
The factory-installed lugs accept both copper and aluminum wire ranging from 14 AWG up to 3/0 AWG.
Is the TM210 trip unit field adjustable?
No, the TM210 trip unit provides long-time and instantaneous (LI) protection with fixed thermal and fixed magnetic settings that cannot be altered.
Is this breaker suitable for use with mechanical equipment like air conditioners?
Yes, it carries an HACR certification, approving it for safe use with commercial heating, air conditioning, and refrigeration applications.
