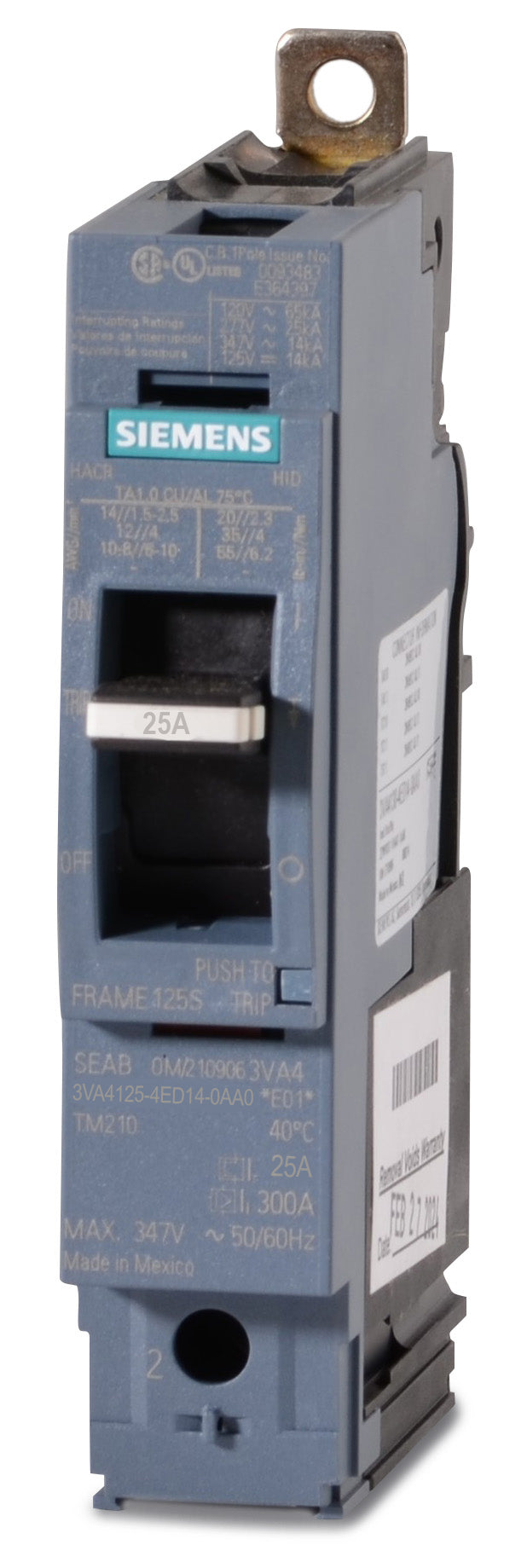

Siemens 3VA4125-4ED14-0AA0 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Siemens
3VA4125-4ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4125-4ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4125-4ED14-0AA0 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
A compact solution for commercial systems, the Siemens 3VA4125-4ED14-0AA0 is a 1-pole, 25A molded case circuit breaker. It offers precise long-time and instantaneous protection. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards. It provides a seamless upgrade path for systems using the discontinued ED41B025, ensuring a perfect fit. Featuring a 65kA rating at 120VAC, it includes reverse feed capabilities and is fully HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 14kA @ 125VDC, 14kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, HID Rated |
Product FAQs
5 answersWhich Siemens panelboards accept the 3VA4125-4ED14-0AA0 circuit breaker?
This bolt-on breaker is engineered for installation in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.
What are the wire size requirements for the terminal lugs?
The factory lugs on this breaker accept 14 AWG to 8 AWG copper conductors and 12 AWG to 8 AWG aluminum conductors.
Is this circuit breaker rated for direct current (DC) applications?
Yes, the 3VA4125-4ED14-0AA0 is rated for use in DC systems up to 125VDC with an interrupting capacity of 14kA.
Can the trip unit settings be adjusted in the field?
No, this model features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection settings are factory set and cannot be modified.
Does this breaker support DIN rail mounting?
No, this is a bolt-on molded case circuit breaker designed to bolt directly to the busbars of compatible Siemens distribution equipment.
