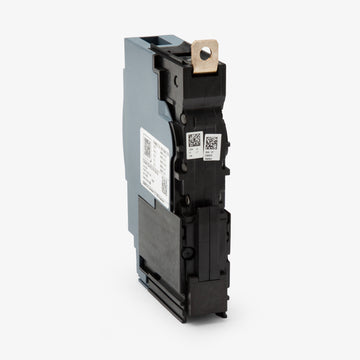

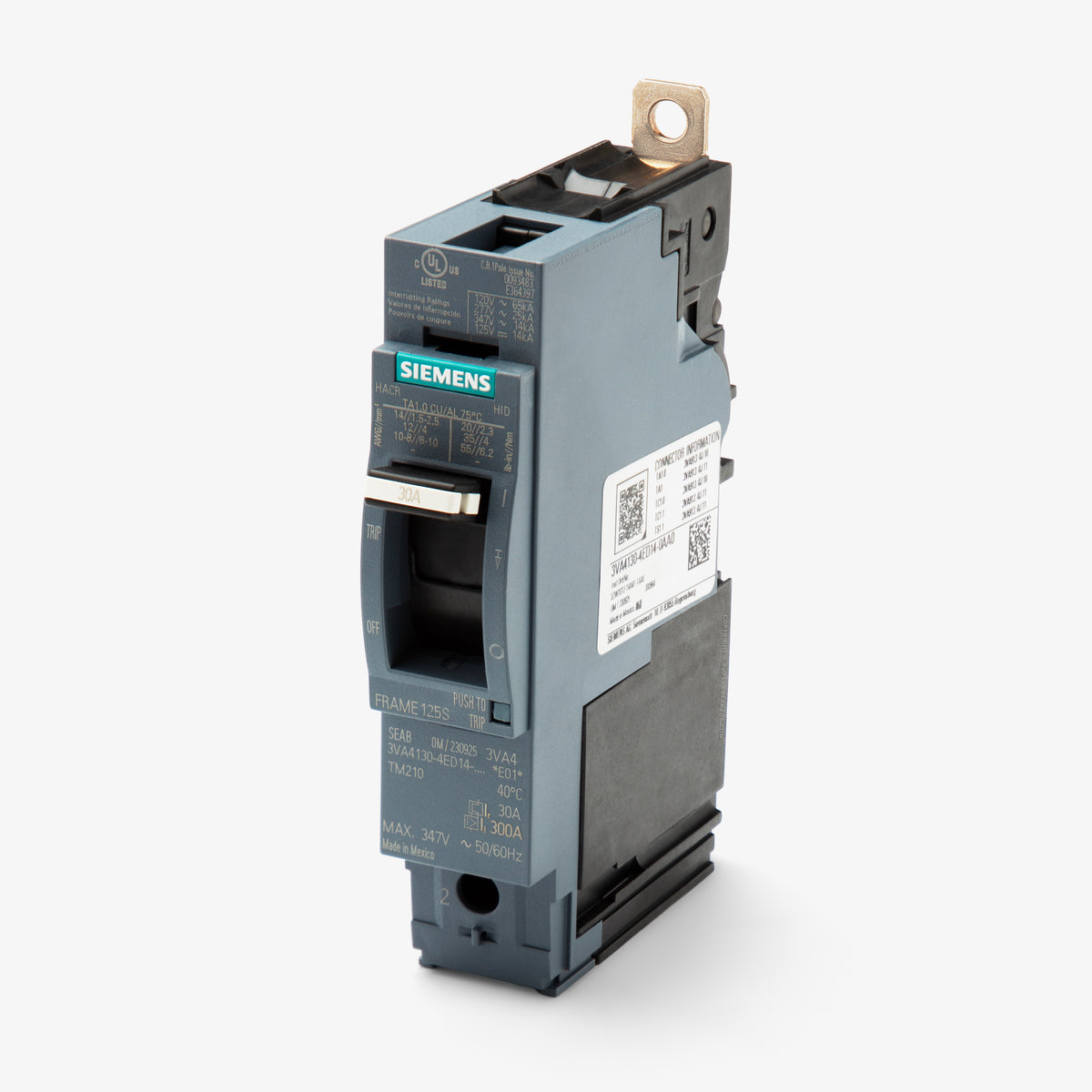

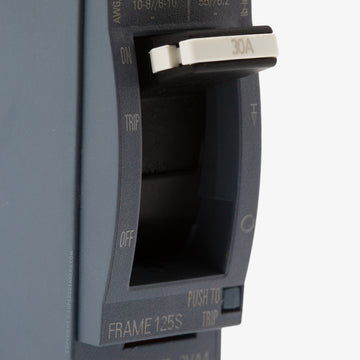

Siemens 3VA4130-4ED14-0AA0 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
3VA4130-4ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-4ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-4ED14-0AA0 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens 3VA4130-4ED14-0AA0 is a 1-pole, 30A molded case circuit breaker. It features a fixed thermal-magnetic trip unit to deliver reliable overcurrent protection. This bolt-on MCCB is engineered to fit Siemens P1, P2, and P3 panelboards. It acts as a direct upgrade and replacement for legacy ED41B030 breakers, simplifying facility updates. Rated 65kAIC at 120V, this breaker includes current-limiting capabilities and is HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4130-4ED14-0AA0 |
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 14kA @ 125VDC, 14kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersCan the 3VA4130-4ED14-0AA0 replace older Siemens ED-frame breakers?
Yes, this 3VA4 series breaker is designed as a direct upgrade and replacement for legacy ED41B030 circuit breakers in Siemens panelboards.
Which panelboards are compatible with this 30A breaker?
This bolt-on breaker is engineered for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.

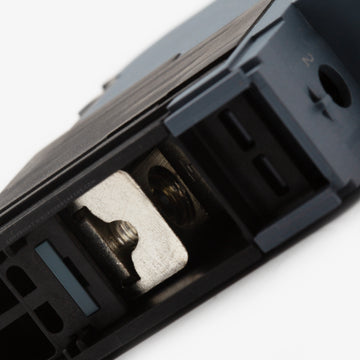

What wire sizes and materials are accepted by the lugs on this breaker?
The load-side lugs accept 14 AWG to 8 AWG copper or aluminum (Cu/Al) wire.
How does this 1-pole breaker connect to the panel bus?

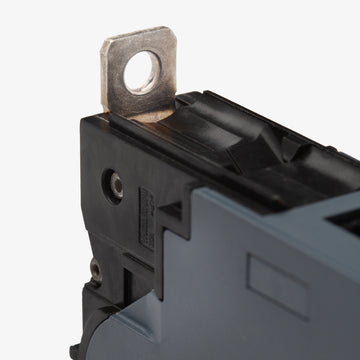

It features a bolt-on mounting style for secure connection to the panelboard bus, with a lug provided on the load side for the branch circuit wiring.
Is this breaker suitable for direct current (DC) applications?
Yes, it is rated for 125VDC with an interrupting capacity of 14kAIC, in addition to its standard AC voltage ratings.
Is this breaker HACR and HID rated?
Yes, this breaker is HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) rated, making it suitable for commercial HVAC and lighting loads.
Does the 3VA4130-4ED14-0AA0 feature adjustable trip settings?
No, it utilizes a TM210 thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) protection. The instantaneous trip is permanently set to 10 times the continuous current rating (300A).
What does the LI trip function code indicate on this breaker?
The LI designation means the breaker provides Long-Time (overload) and Instantaneous (short-circuit) protection, which is standard for thermal-magnetic trip units.
