Siemens 3VA4125-4ED34-0AA0 Circuit Breaker
- 25
- 3 Pole
- Bolt-On
Siemens
3VA4125-4ED34-0AA0
Circuit Breaker
Brand
Siemens
SKU
3VA4125-4ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4125-4ED34-0AA03 Pole Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4125-4ED34-0AA03 Pole Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4125-4ED34-0AA0 |
| Series | 3VA |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | AWG 14 to AWG 8, Cu, AWG 12 to AWG 8, Al |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens 3VA4125-4ED34-0AA03 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | AWG 14 to AWG 8, Cu, AWG 12 to AWG 8, Al |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description

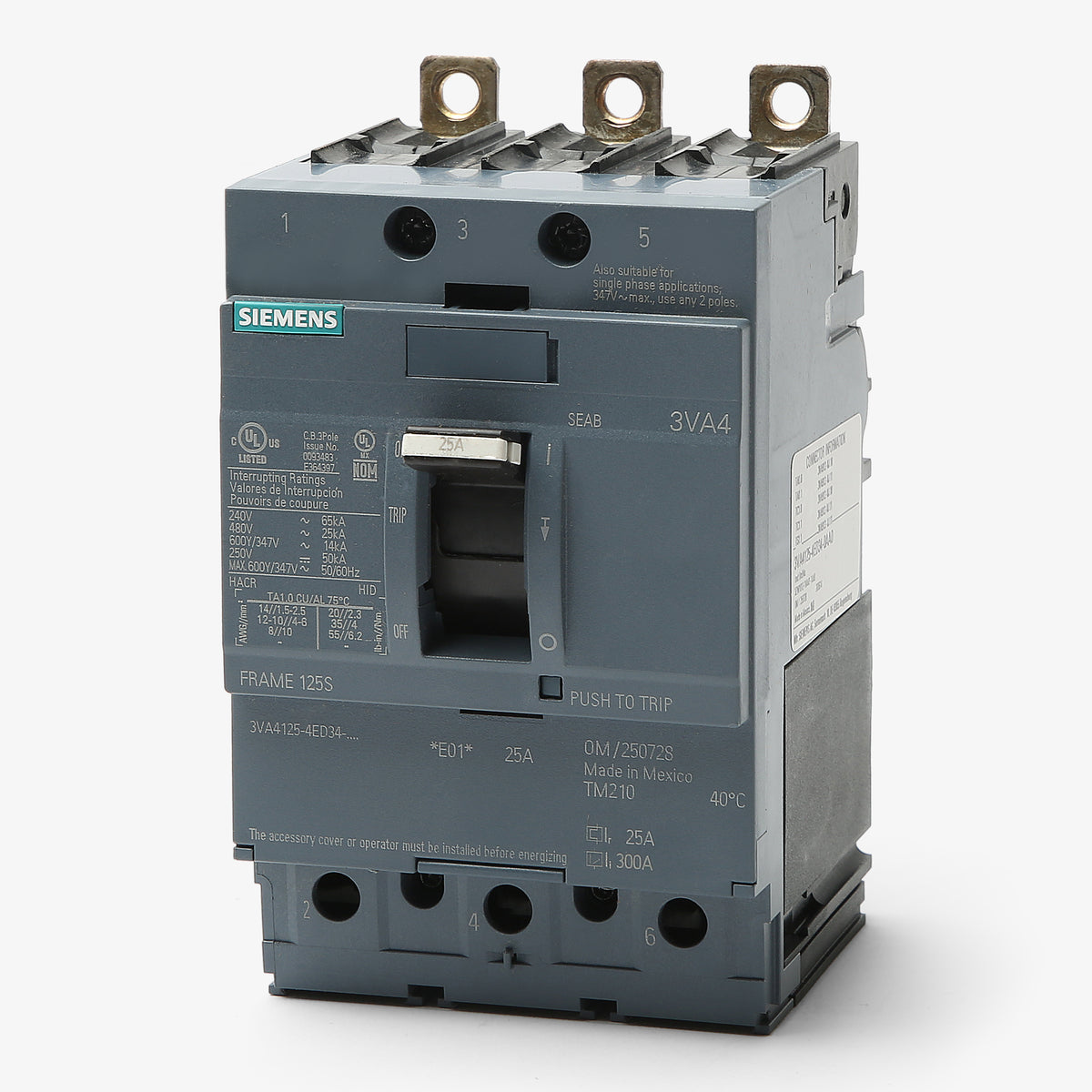

Siemens 3VA4125-4ED34-0AA0 3 Pole Circuit Breaker
The Siemens 3VA4125-4ED34-0AA0 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 480V. It has an interrupting rating of 25kAIC at 480V.
Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4125-4ED34-0AA0 |
| Series | 3VA |
| Amperage | 25 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards |
| Wire Gauge | AWG 14 to AWG 8, Cu, AWG 12 to AWG 8, Al |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersCan the Siemens 3VA4125-4ED34-0AA0 be reverse fed?
Yes, all Siemens 3VA41 thermal-magnetic molded case circuit breakers are UL listed for reverse feed applications.
What older breaker lines does the 3VA41 series replace?
The 3VA41 frame serves as the modern replacement for legacy Siemens BQD, ED, and xGB frame circuit breakers in commercial panelboards.
What is required to mount this breaker in legacy Siemens panelboards?
While it is directly compatible with modern Siemens P1, P2, and P3 panelboards and switchboards, installing it into older legacy systems will require a 3VA adapter strap kit or main breaker kit.
What wire sizes are compatible with the lugs on this circuit breaker?
The included lug terminals accept 14 to 8 AWG copper conductors and 12 to 8 AWG aluminum conductors.
What does the "4" following the amperage in the 3VA4125-4ED34-0AA0 part number signify?
It indicates a Siemens Class S interrupting rating. This provides a maximum interrupting capacity of 25 kA at 480 VAC and 65 kA at 240 VAC.
Are the thermal and magnetic trip points adjustable on this breaker?
No, this model features a fixed thermal and fixed magnetic (LI) trip unit, meaning the long-time overload and instantaneous short-circuit protection thresholds cannot be changed.
Is this circuit breaker rated for use in direct current systems?
Yes, it carries a 250 VDC voltage rating with a 50 kA interrupting capacity, allowing integration into DC electrical distribution.
What is the frame size of the 3VA4125-4ED34-0AA0?
It utilizes the Siemens 3VA41 molded case frame, which supports a maximum continuous current of 125 amps. This specific unit is factory set for a 25 amp continuous current rating.
