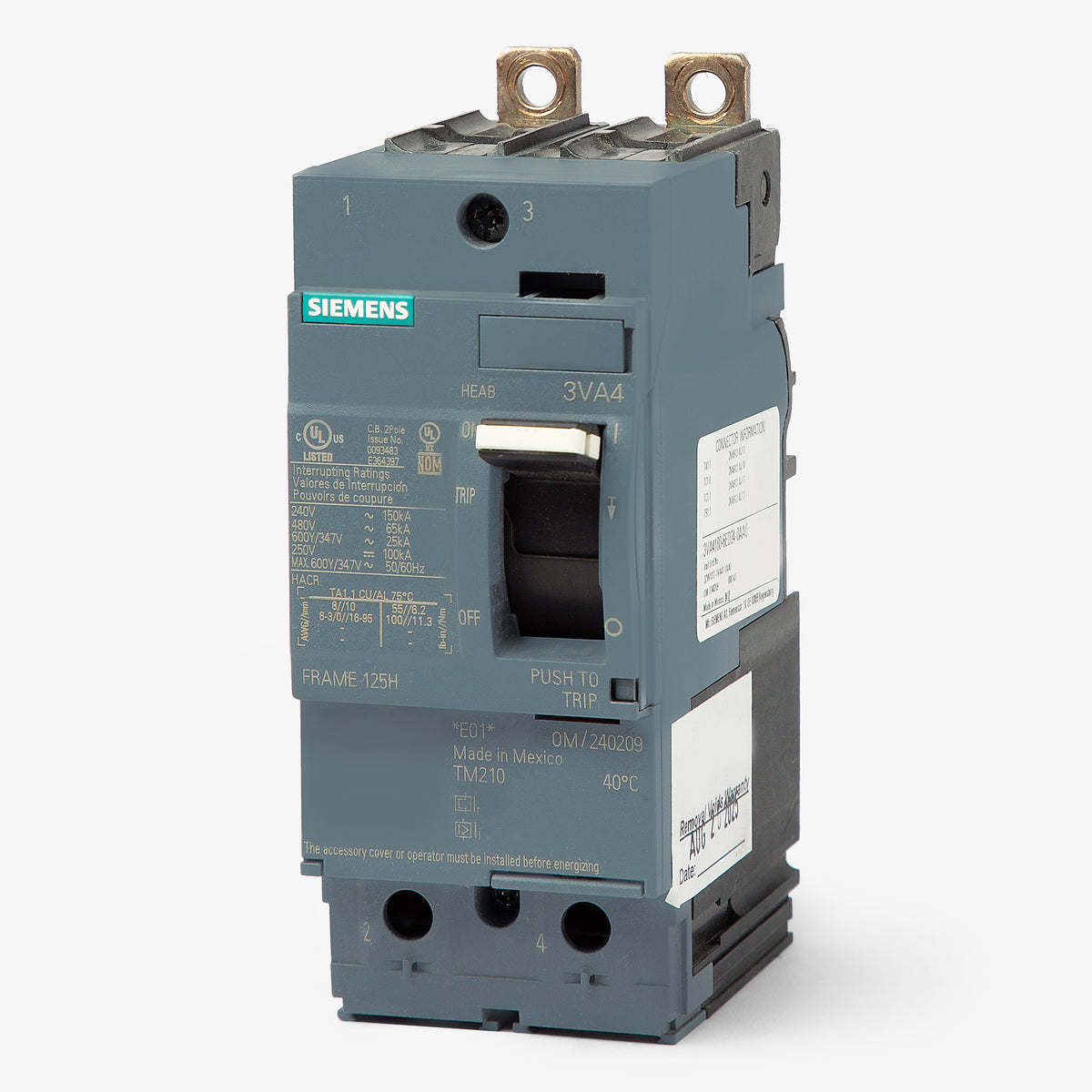

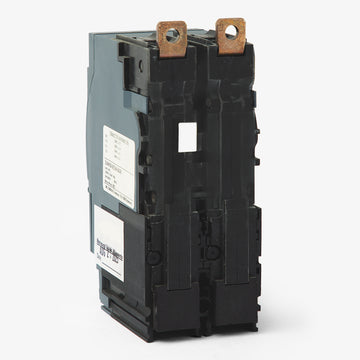

Siemens 3VA4125-6ED24-0AA0 Molded Case Circuit Breaker
- 25A
- 2 Pole

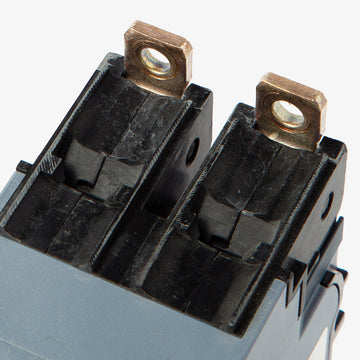

- Bolt-On
Siemens
3VA4125-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4125-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4125-6ED24-0AA0 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the 3VA4125-6ED24-0AA0 is a 2-pole, 25A bolt-on MCCB from the SENTRON 3VA4 family. It features fixed thermal and magnetic trip units to deliver reliable LI protection. This bolt-on breaker is designed for use with Siemens P1, P2, and P3 panelboards. It serves as a modern replacement for legacy HEAB Series and HED42B025 breakers, requiring a mounting kit for installation. Offering 100kA interrupting capacity at 240VAC, this breaker is HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the 3VA4125-6ED24-0AA0 breaker?
This bolt-on molded case circuit breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards. Installation into these panels requires the appropriate 3VA41 twin mounting strap kit, which must be sourced separately.
Can this breaker replace older Siemens legacy breakers?
Yes, the 3VA4125-6ED24-0AA0 serves as a modern replacement for legacy Siemens HEAB Series and HED42B025 circuit breakers. You will need the correct 3VA41 mounting hardware kit to retrofit this breaker into existing panelboards.
What does the LI trip function mean for this 25A breaker?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (overload) and Instantaneous (short-circuit) protection. Both the thermal and magnetic trip settings are fixed and cannot be adjusted in the field.
Is this Siemens 3VA41 breaker suitable for DC voltage applications?
Yes, this breaker is rated for use in direct current systems, providing a 100kA interrupting capacity at 250V DC. Note that while the breaker is DC rated, Siemens P1 panelboards are generally not approved for DC voltage systems, so P2 or P3 panels should be used for DC applications.

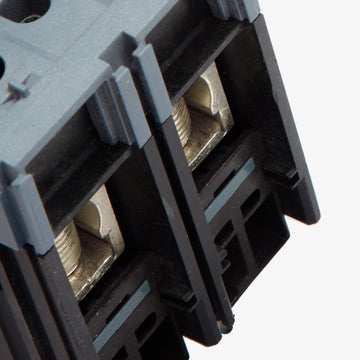

What wire sizes are accepted by the load side lugs on this breaker?
The factory-installed lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Always torque the lug screws to the manufacturer specifications printed on the breaker faceplate.
Does this breaker snap onto a standard DIN rail?
No, this is a bolt-on molded case circuit breaker designed to mount directly to the busbars of a panelboard or switchboard using a strap kit. It does not snap onto a standard 35mm DIN rail without a specialized Siemens DIN rail adapter accessory.
