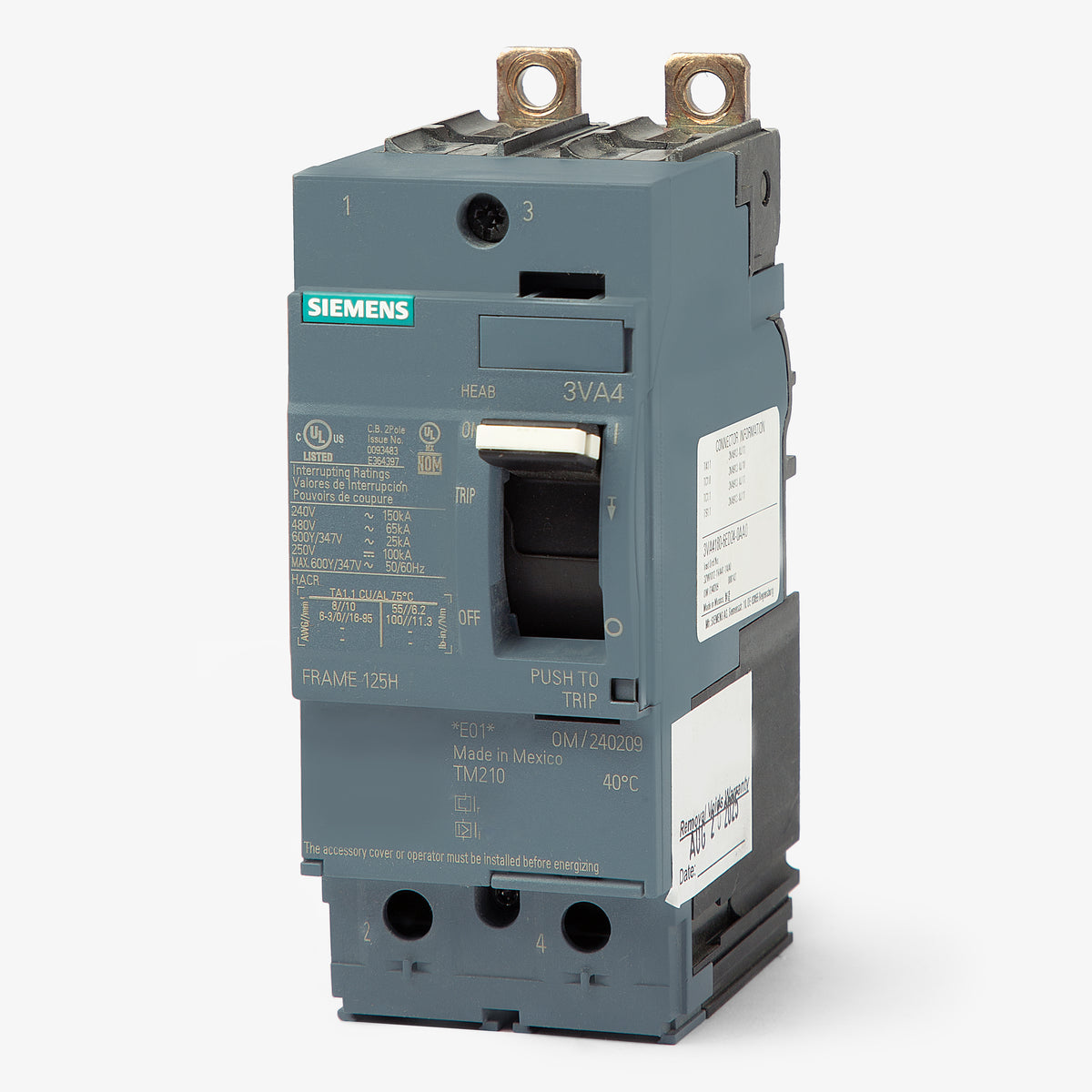

Siemens 3VA4130-6ED24-0AA0 Molded Case Circuit Breaker
- 30A
- 2 Pole

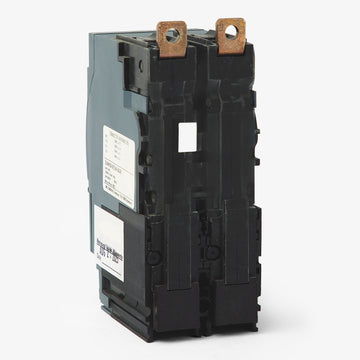

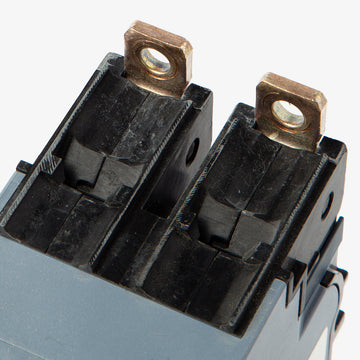

- Bolt-On
Siemens
3VA4130-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-6ED24-0AA0 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens 3VA4130-6ED24-0AA0 is a 2-pole, 30A molded case circuit breaker. It features a fixed thermal-magnetic trip unit providing reliable long-time and instantaneous (LI) branch protection. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards. It serves as a drop-in replacement for discontinued HEAB series and HED42B030 breakers. Rated for 65kAIC at 480V, this Class H breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|

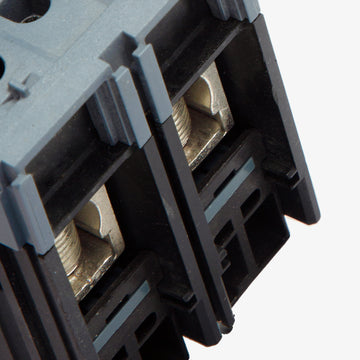

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the 3VA4130-6ED24-0AA0 circuit breaker?
This breaker installs into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. Note that a specific mounting strap or hardware kit is typically required based on your panel configuration.
Can the 3VA4130-6ED24-0AA0 replace older legacy Siemens breakers?
Yes, this 3VA41 frame breaker serves as a drop-in replacement for discontinued HEAB series and HED42B030 circuit breakers.
What type of protection does the LI trip function provide?
The LI designation indicates a thermal-magnetic trip unit equipped with fixed long-time overload protection and fixed instantaneous short-circuit protection.
What breaking capacity class does the 3VA4130-6ED24-0AA0 fall under?
This unit features a Class H breaking capacity, which provides a 65kA interrupting rating at 480VAC and 100kA at 240VAC.
Is the 3VA4130-6ED24-0AA0 rated for HVAC equipment or reverse feeding?
Yes, this breaker is HACR rated for heating, air conditioning, and refrigeration applications, and it is reverse feed capable.
