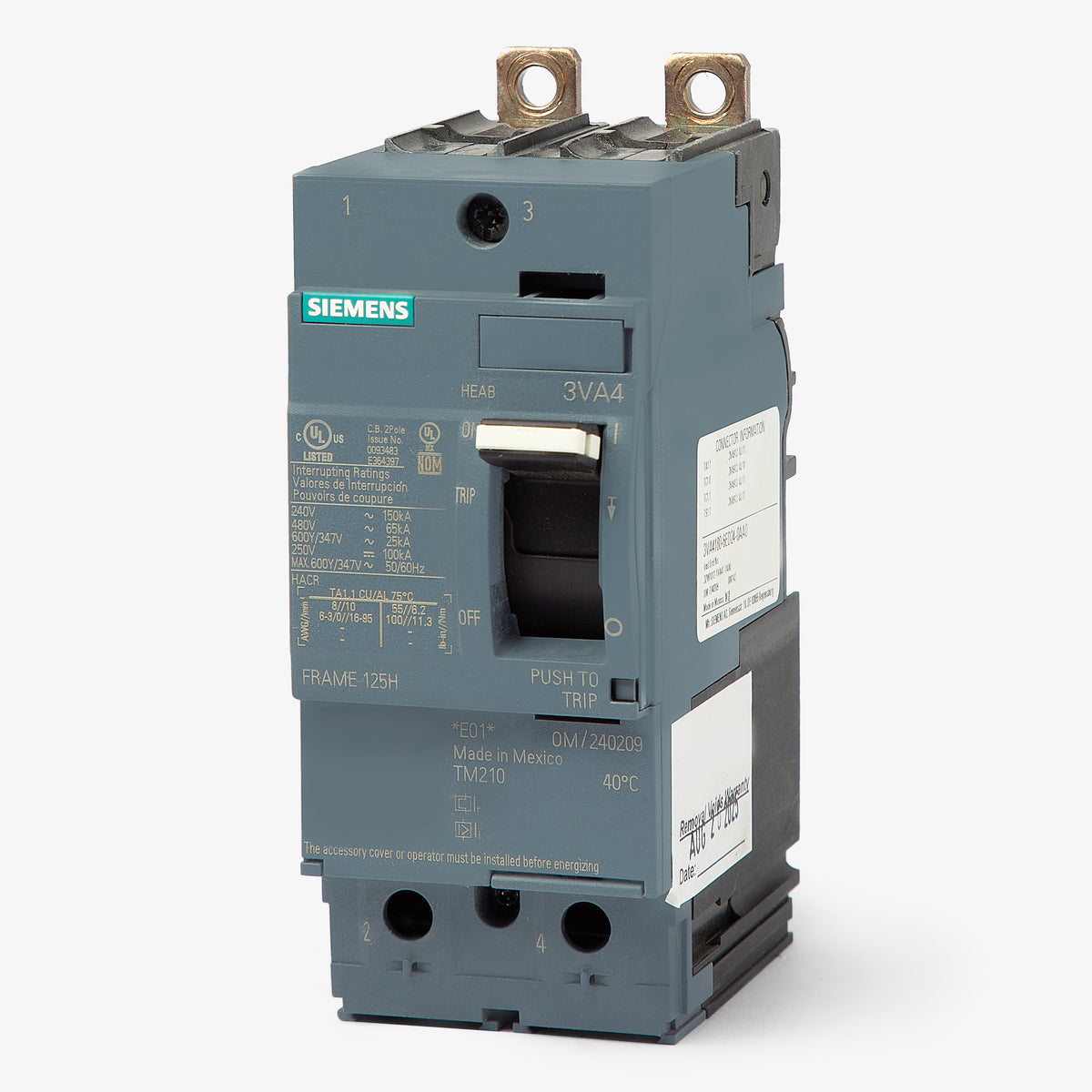

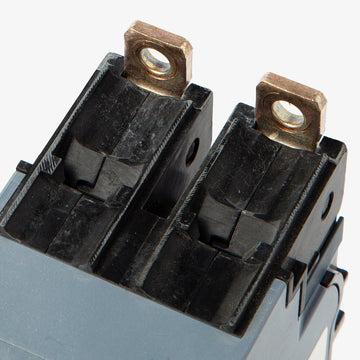

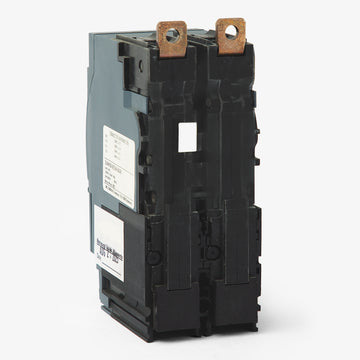

Siemens 3VA4135-6ED24-0AA0 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Panel Mount
Siemens
3VA4135-6ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4135-6ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4135-6ED24-0AA0 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
Description
Designed for demanding industrial environments, this two-pole 35A panel mount breaker offers fixed thermal and magnetic trip functions within the 3VA4 frame. It integrates seamlessly into Siemens P1, P2, and P3 panelboards as well as switchboards, replacing discontinued ED62B035 models. With a robust 65kAIC rating at 480VAC and 100kAIC at 240VAC, it handles high fault currents efficiently. This HACR-rated component includes load side lugs and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|

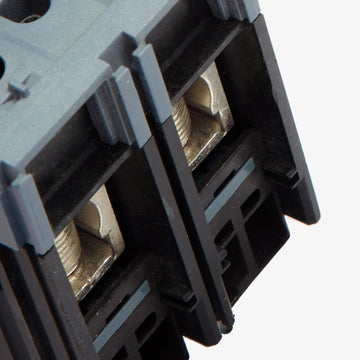

| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip, HID Rated |
Product FAQs
9 answersWhat panelboards are compatible with the 3VA4135-6ED24-0AA0?
This breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards. You will need the appropriate strap kit or mounting hardware specific to your panelboard type for installation.
What wire sizes and materials are accepted by the terminals on this breaker?
The factory-installed lugs accept 14 AWG to 8 AWG wire. They are rated for both copper (Cu) and aluminum (Al) conductors.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
What does the LI trip function indicate on this Siemens breaker?
The LI designation means the breaker provides Long-Time (thermal) and Instantaneous (magnetic) protection. The long-time function protects against sustained overloads, while the instantaneous function trips the breaker immediately during a short circuit.
Is the 3VA4135-6ED24-0AA0 rated for direct current (DC) applications?
Yes, this breaker carries a DC interrupting rating of 100kA at 250V DC, making it suitable for applicable direct current systems.
Can the 3VA4135-6ED24-0AA0 be reverse fed?
Yes, all Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications.
What legacy Siemens breaker does the 3VA4135-6ED24-0AA0 replace?
This 3VA4 series breaker is the direct replacement for the discontinued Siemens ED62B035 molded case circuit breaker.
Is mounting hardware included with the 3VA4135-6ED24-0AA0?
No, mounting hardware and strap kits are typically sold separately. You will need the specific mounting kit designed for your Siemens P1, P2, or P3 panelboard or switchboard.
Can I use this 2-pole breaker in a 3-phase panelboard?
Yes, this 2-pole breaker can be installed in a 3-phase panelboard, but it will only draw power from two of the three phases. It is commonly used to supply 240V or 480V single-phase loads from a 3-phase system.
