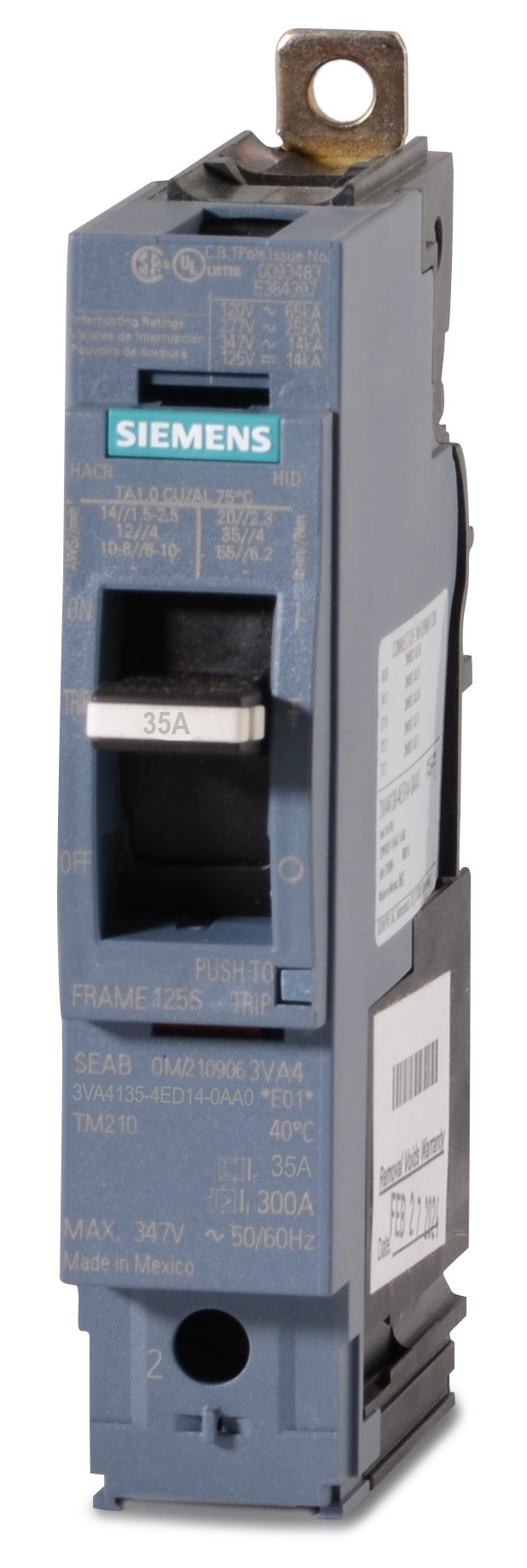

Siemens 3VA4135-4ED14-0AA0 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Panel Mount
Siemens
3VA4135-4ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4135-4ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4135-4ED14-0AA0 - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens 3VA4135-4ED14-0AA0 delivers robust overcurrent protection in a compact 1-pole footprint. This 35A panel mount MCCB utilizes a fixed thermal-magnetic trip unit for dependable long-time and instantaneous fault clearing. It installs into Siemens P1, P2, P3, P4, and P5 panelboards, serving as a modern replacement for legacy ED41B035 breakers. Rated for 25 kAIC at 277VAC, this Class S breaker is HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 25kA @ 277VAC, 14kA @ 125VDC, 14kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
7 answersCan the 3VA4135-4ED14-0AA0 replace older Siemens circuit breakers?
Yes, the 3VA4 series serves as a modern, direct replacement for legacy Siemens SEAB and ED4 series breakers, such as the ED41B035, in existing electrical apparatus.
Is the 3VA4135-4ED14-0AA0 suitable for reverse feed applications?
Yes, all Siemens 3VA41 thermal-magnetic trip circuit breakers are UL listed for reverse feed applications, providing flexibility for various installation requirements.
Can this 35A breaker be used in DC electrical systems?
Yes, the 3VA4135-4ED14-0AA0 is rated for use in DC applications up to 125 VDC, providing an interrupting capacity of 14 kAIC.
What does the 0AA0 suffix indicate in the 3VA4135-4ED14-0AA0 catalog number?
The 0AA0 suffix indicates that this is a standard breaker shipped without any factory-installed internal accessories, such as auxiliary switches or shunt trips. These accessories can be ordered separately for field installation.
What type of wire connections does this breaker support?
This panelboard-mounted breaker comes standard with an aluminum load-side lug that accepts 14 AWG to 8 AWG copper or aluminum wire. The line side features a bolt-on connection for direct bus mounting.
What type of trip unit is included in the 3VA4135-4ED14-0AA0?
It features a TM210 thermal-magnetic trip unit with fixed thermal (overload) and fixed magnetic (short-circuit) settings, providing standard Long-Time and Instantaneous (LI) protection.
What frame size is the 3VA4135-4ED14-0AA0?
This breaker belongs to the 3VA41 frame size, which has a maximum continuous current rating of 125A, though this specific model is factory-set for 35A.
