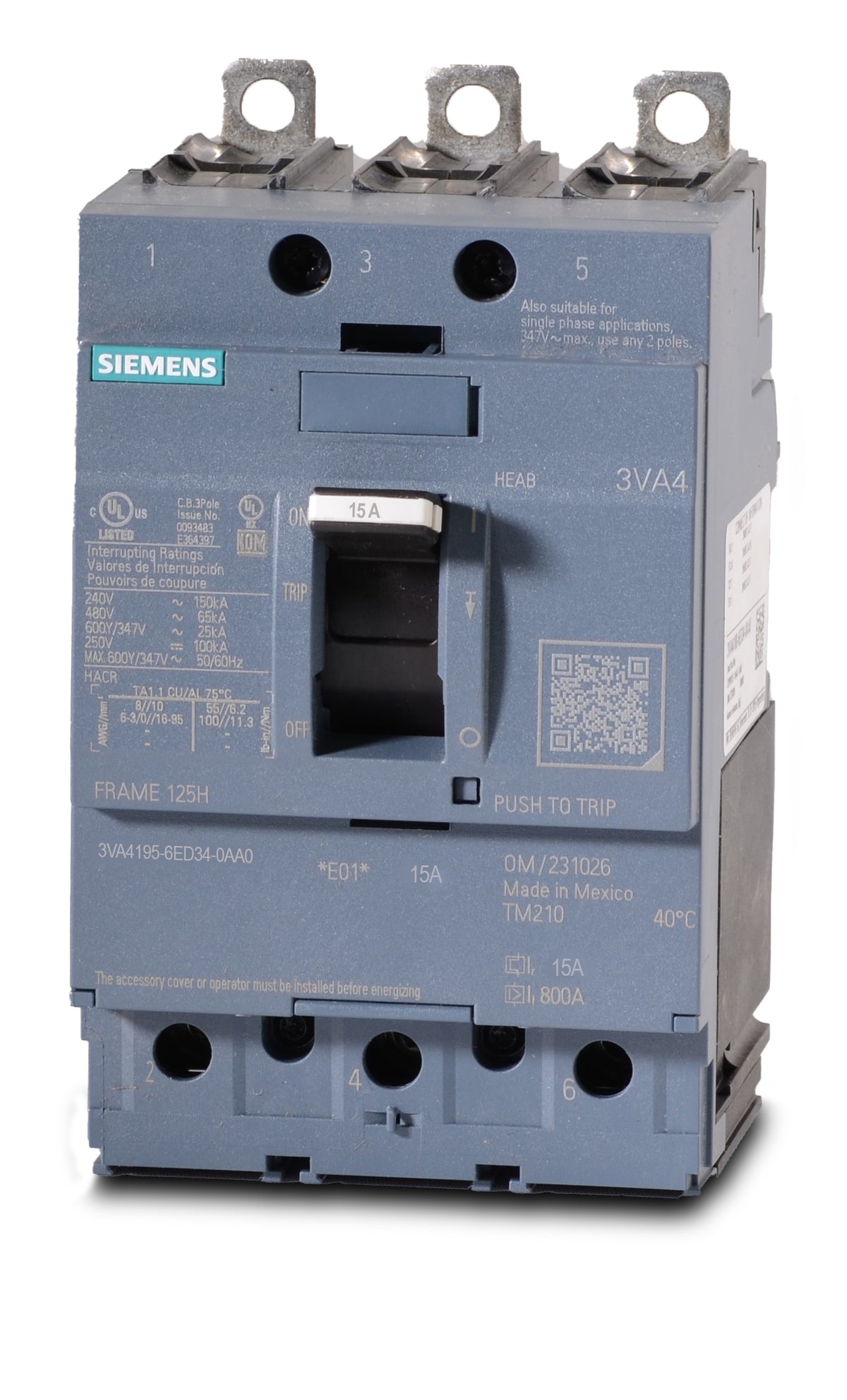

Siemens 3VA4195-6ED34-0AA0 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens
3VA4195-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4195-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4195-6ED34-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4195-6ED34-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4195-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Quantity
Siemens 3VA4195-6ED34-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for 3-phase systems, the Siemens 3VA4195-6ED34-0AA0 is a 15A bolt-on MCCB equipped with a TM210 trip unit. It delivers reliable long-time and instantaneous (LI) protection for commercial and industrial facilities. This 3-pole breaker mounts into Siemens P1 panelboards, ensuring secure connections. With a robust 65kAIC rating at 480V, it also functions as a drop-in replacement for older ED63B015 and HED43B015 breakers, modernizing legacy power distribution setups.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4195-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
6 answersWhich Siemens panelboards accept the 3VA4195-6ED34-0AA0 breaker?
This breaker is designed for use in Siemens Revised P1 panelboards. When installing, verify whether you have an Original P1 or a Revised P1 panel, as they require completely different branch strap kits and breaker mounting hardware.
What breaking capacity class does the 3VA4195-6ED34-0AA0 belong to?
This unit is a Class H breaker. Under the Siemens 3VA4 classification, Class H signifies a high interrupting capacity, rated to safely clear faults up to 65kA at 480V or 25kA at 600Y/347V.
Can I use aluminum conductors with the standard lugs on this breaker?
Yes, the factory-installed load side lugs are dual-rated for both copper and aluminum wire. They accept conductor sizes ranging from 14 AWG up to 8 AWG.
Is the trip unit on the 3VA4195-6ED34-0AA0 adjustable?
No. This breaker is equipped with a TM210 fixed thermal, fixed magnetic (FTFM) trip unit. Both the continuous current overload and the instantaneous short-circuit thresholds are factory-set and cannot be field-adjusted.
Does this MCCB mount directly onto standard DIN rail?
No, the 3VA4195-6ED34-0AA0 is a bolt-on molded case circuit breaker designed specifically for panelboard mounting. It requires panel-specific hardware or strap kits to secure it to the bus and does not snap onto DIN rail.
Is this circuit breaker suitable for HVAC applications?
Yes, the Siemens 3VA4 series is HACR rated. This means it is certified to safely provide branch circuit protection for heating, air conditioning, and refrigeration equipment.
