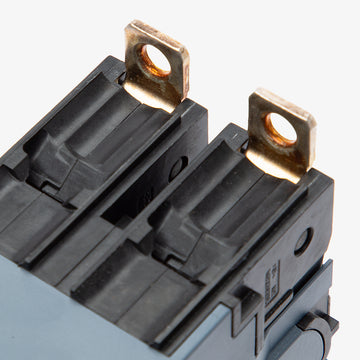

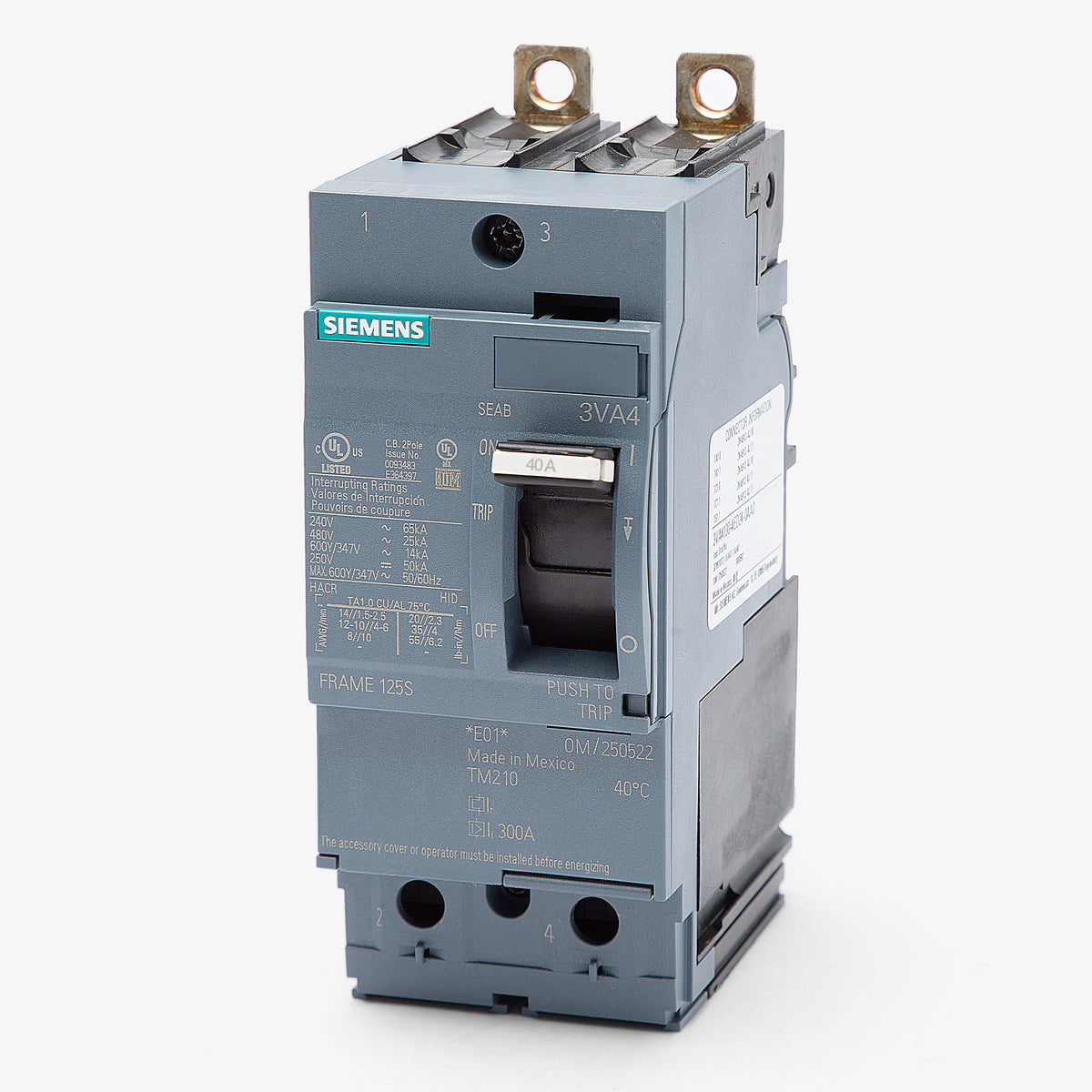

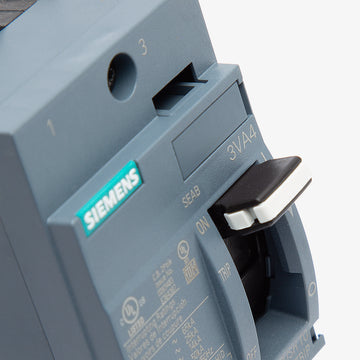

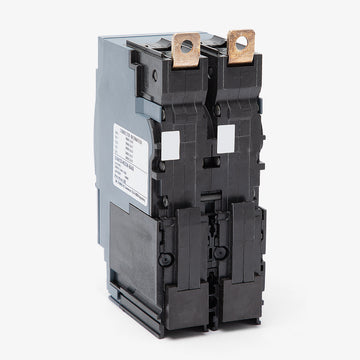

Siemens 3VA4140-4ED24-0AA0 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Siemens
3VA4140-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4140-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4140-4ED24-0AA0 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the Siemens 3VA4140-4ED24-0AA0 is a 40A, 2-pole molded case circuit breaker from the SENTRON 3VA4 family. It features a TM210 thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection. This panel mount MCCB installs into Siemens P1, P2, and P3 panelboards. It serves as a modern upgrade and replaces legacy ED42B040 breakers with a mounting kit. Rated 25 kAIC at 480VAC, it includes load side lugs and reverse feed capability.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4140-4ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat panelboards are compatible with the 3VA4140-4ED24-0AA0?
This breaker is designed for use in Siemens P1, P2, and P3 commercial panelboards, as well as Siemens switchboards. It is not intended for standard residential load centers.
Can this breaker be used in DC circuits?
Yes, it is rated for use in DC applications up to 250V DC, providing an interrupting capacity of 50kA at that voltage.
What does the LI trip function indicate on this breaker?
The LI designation means the thermal magnetic trip unit provides Long Time (L) overload protection and Instantaneous (I) short circuit protection. Both the thermal and magnetic trip settings are fixed on this specific model.
What type of wire can be used with the factory lugs?
The included lugs accept both copper (Cu) and aluminum (Al) wire ranging from 14 AWG to 8 AWG.
How is the 3VA4140-4ED24-0AA0 mounted?
It is a panel mount breaker, meaning it bolts directly into the chassis of compatible commercial panelboards and switchboards rather than snapping onto a busbar like miniature residential breakers.
