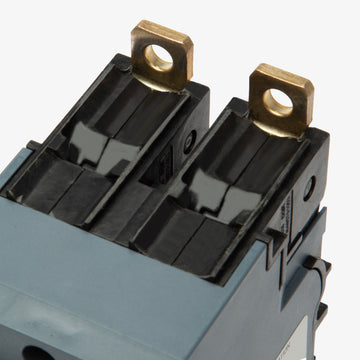

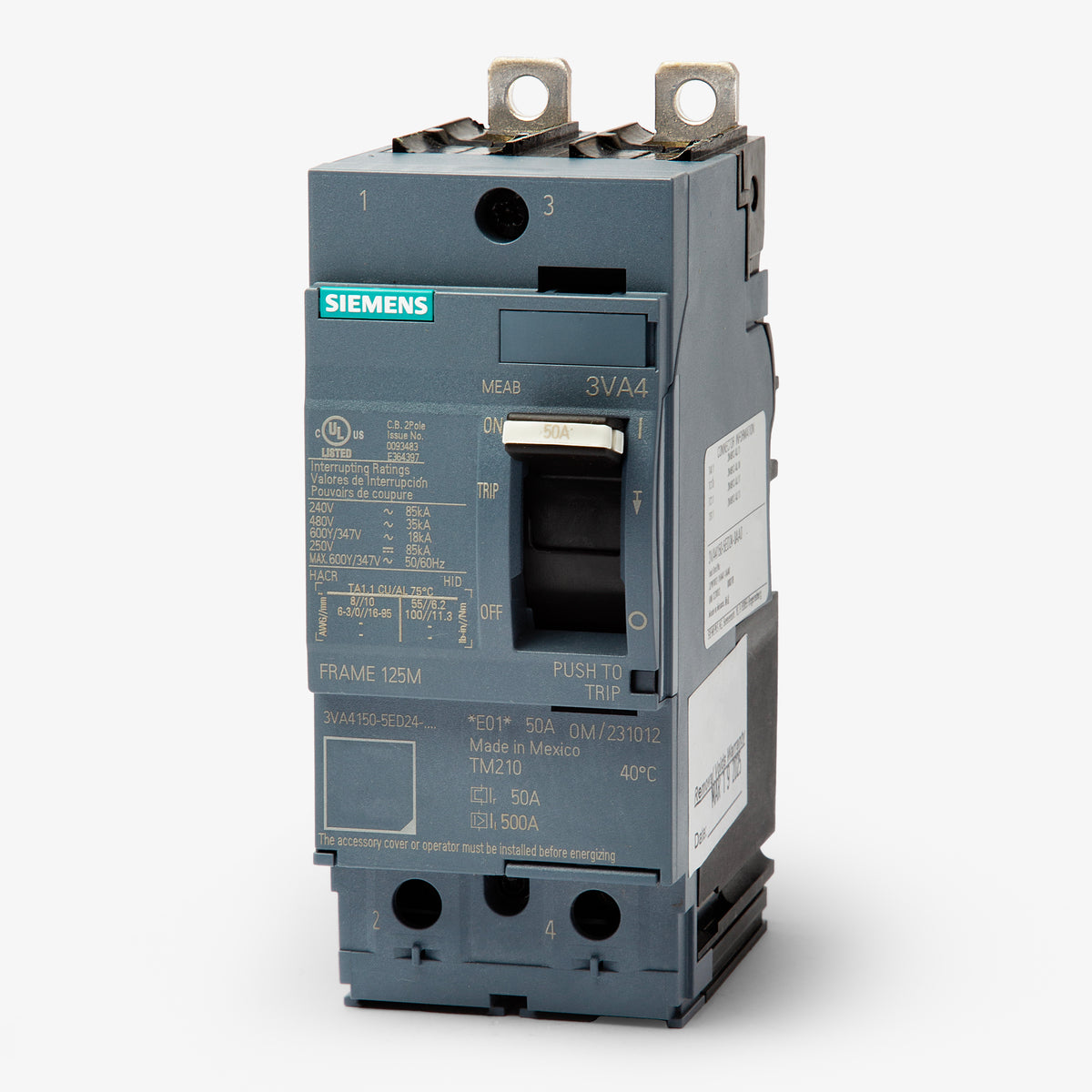

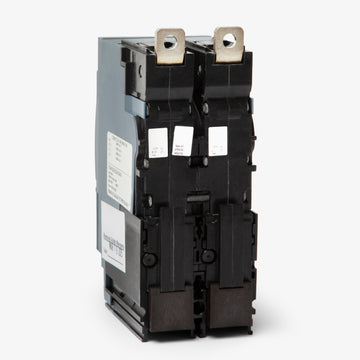

Siemens 3VA4150-5ED24-0AA0 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
3VA4150-5ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4150-5ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4150-5ED24-0AA0 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, this 2-pole, 50A bolt-on molded case circuit breaker is part of the advanced Siemens 3VA4 series. It mounts into Siemens P1, P2, and P3 panelboards, providing a secure connection for demanding environments. This unit serves as an exact replacement for the legacy ED62B050 breaker. Equipped with a fixed thermal-magnetic trip unit, it offers a 35kAIC rating at 480V, current-limiting capabilities, and reverse feed operation.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat panelboards accept the 3VA4150-5ED24-0AA0 breaker?
This bolt-on molded case circuit breaker is designed for installation in Siemens P1, P2, and P3 commercial panelboards. It cannot be used in standard plug-on residential load centers.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept wire gauges from 8 AWG up to 3/0 AWG. The terminals are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Is the 3VA4150-5ED24-0AA0 rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for use in DC systems with an interrupting capacity of 85kA at 250VDC.
Are the thermal and magnetic trip settings adjustable on this 3VA41 frame breaker?
No, this model features a thermal-magnetic trip unit with fixed thermal (Long-Time) and fixed magnetic (Instantaneous) settings. It does not offer the adjustability found in breakers with electronic trip units.
How is the 3VA4150-5ED24-0AA0 installed into the panelboard?
This is a bolt-on circuit breaker that secures directly to the panelboard busbars using bolted connections. This mounting style provides a highly secure, vibration-resistant connection typical in commercial and industrial environments.
Does this breaker provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker designed for equipment and wire protection. It features Long-Time and Instantaneous (LI) trip functions but does not provide Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) protection.
