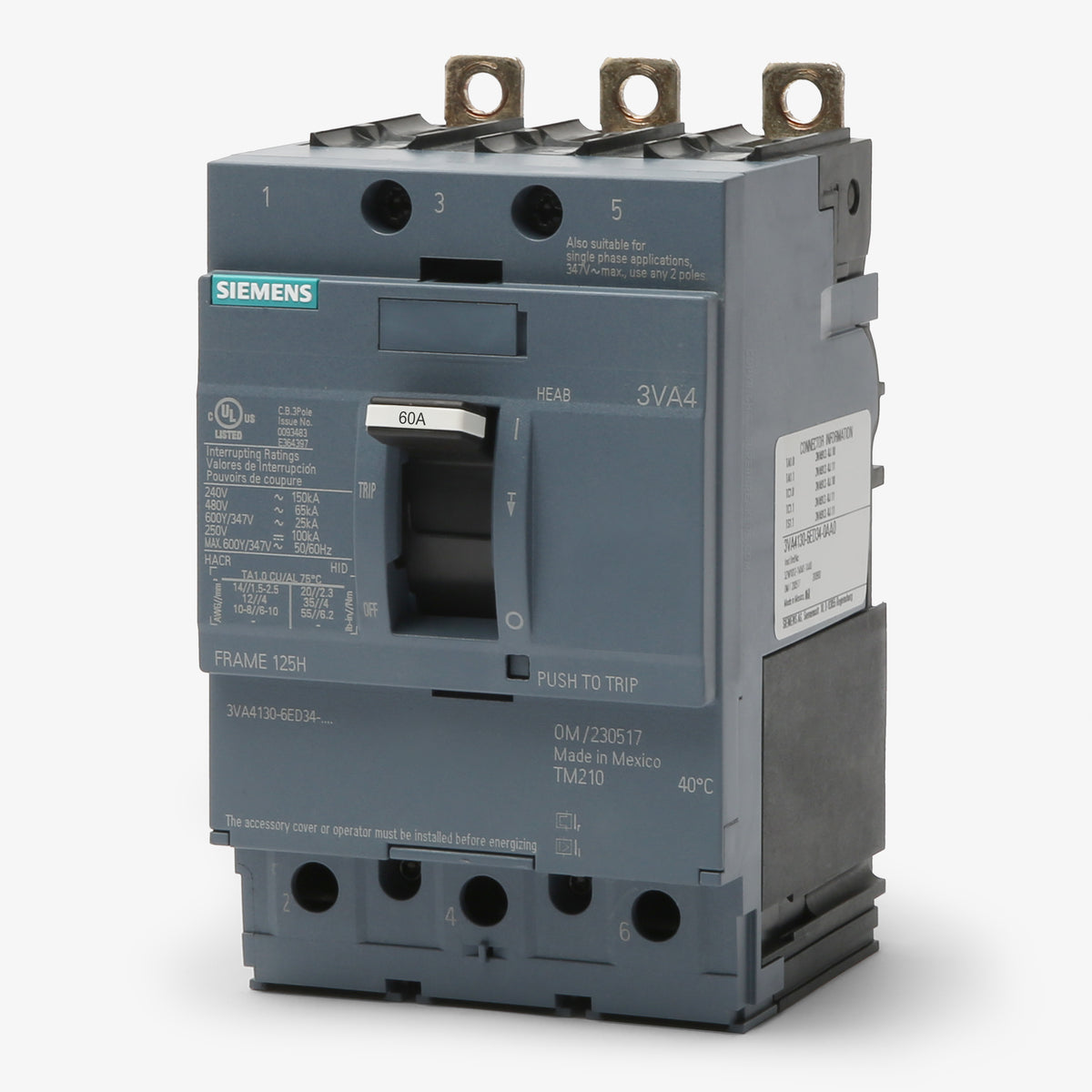

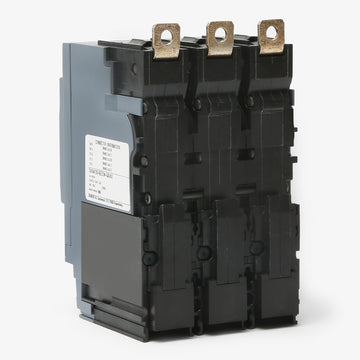

Siemens 3VA4160-6ED34-0AA0 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Siemens
3VA4160-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4160-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4160-6ED34-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4160-6ED34-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Sold out
Quantity
Siemens 3VA4160-6ED34-0AA0 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built to handle heavy commercial loads, this 60A three-pole molded case circuit breaker offers dependable long-time and instantaneous trip functions. It fastens securely into Siemens P1 through P5 panelboards and switchboards, acting as an exact substitute for legacy ED63B060 configurations. With a compact 3VA4 frame, this current-limiting device achieves a 65kAIC rating at 480VAC while supporting reverse feed applications and HACR requirements.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersDoes the 3VA4160-6ED34-0AA0 replace older ED frame circuit breakers?
Yes, the 3VA4 series serves as a direct modernization and replacement for legacy Siemens ED frame breakers. Specifically, this model replaces the older ED63B060 breaker.
Does this breaker require a separate mounting kit for installation?
Yes, when installing into Siemens P1 through P5 panelboards or switchboards, you must use the appropriate strap kit or mounting hardware designed for 3VA41 frames, as this is a bolt-on device that does not plug directly into the bus.
Are the trip settings adjustable on the 3VA4160-6ED34-0AA0?
No. It is equipped with a TM210 thermal-magnetic trip unit featuring fixed thermal and fixed magnetic trip settings (FTFM), meaning neither the overload nor the instantaneous short-circuit parameters can be field-adjusted.

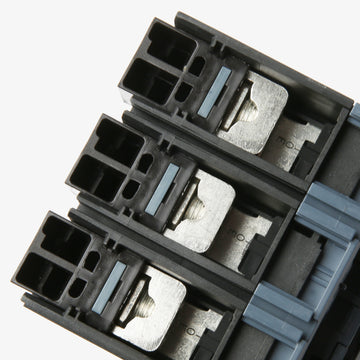

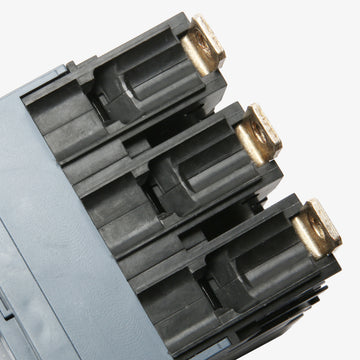

Are mounting lugs included with this circuit breaker?
This specific configuration includes factory-installed lugs on the load side only. The line side is designed to bolt directly to the panelboard bus or requires separate line-side lugs depending on your specific enclosure setup.
Does the 3VA4160-6ED34-0AA0 support reverse feeding?
Yes. Like all 3VA41 thermal-magnetic trip circuit breakers, this unit is UL listed for reverse feed applications. It can be mounted horizontally or vertically and safely fed from the bottom terminals if required by your panel configuration.
Is this circuit breaker HACR rated for HVAC applications?
Yes. It carries a UL 489 HACR (Heating, Air Conditioning, and Refrigeration) rating, meaning it is certified for use in protecting HVAC equipment and refrigeration branch circuits.
