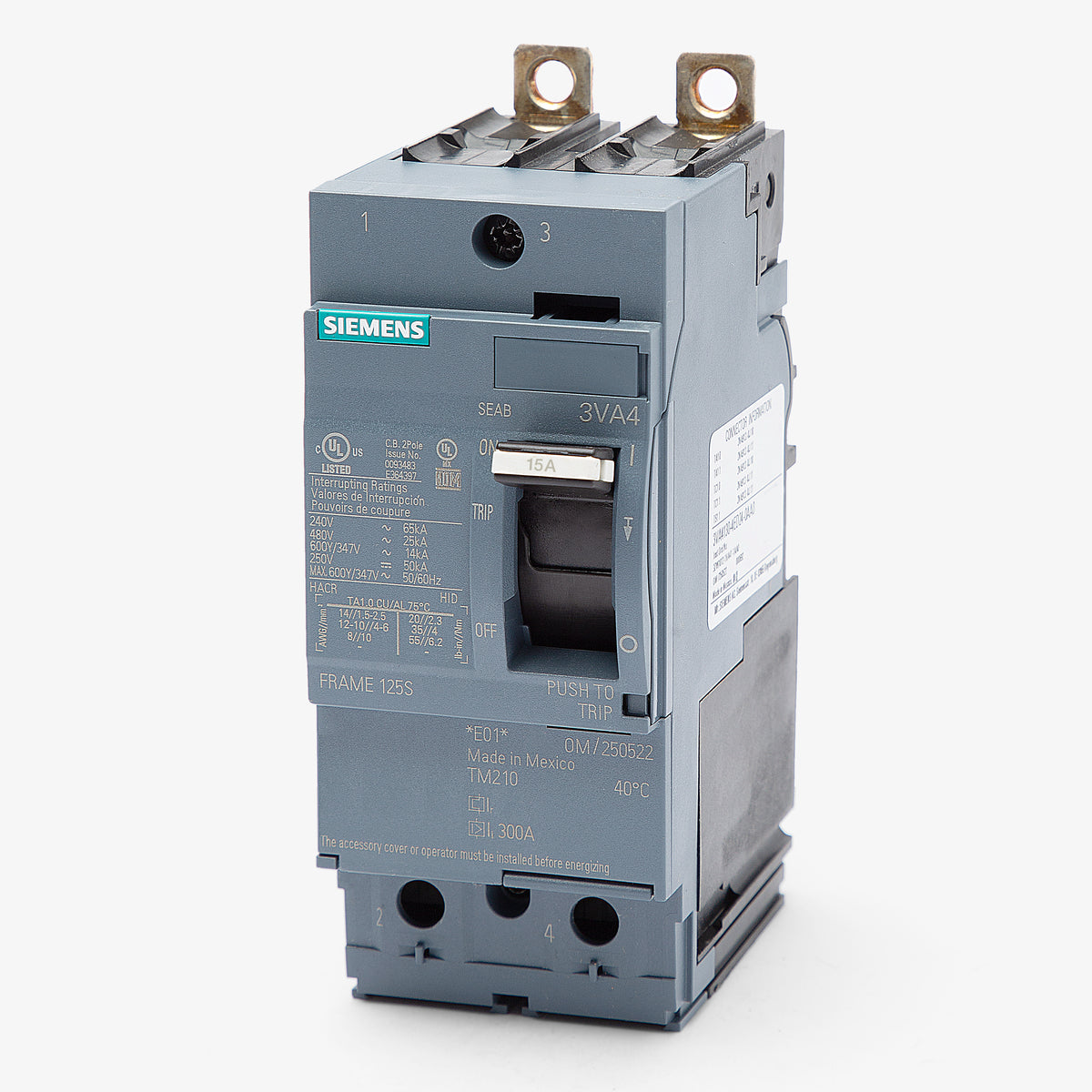

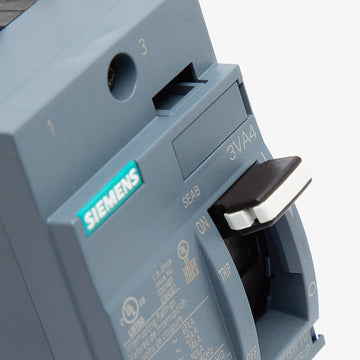

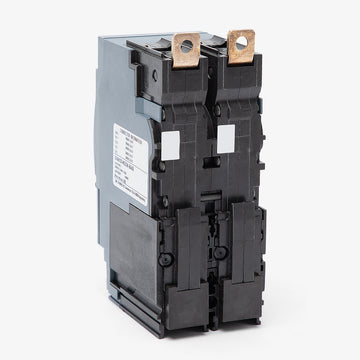

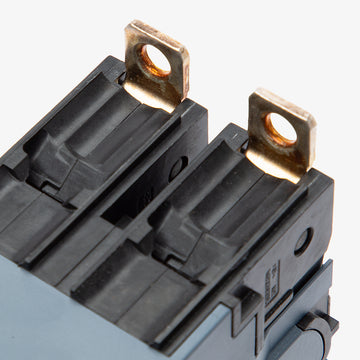

Siemens 3VA4195-4ED24-0AA0 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Siemens
3VA4195-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4195-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4195-4ED24-0AA0 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial distribution, the Siemens 3VA4195-4ED24-0AA0 is a 2-pole, 15A molded case circuit breaker. It utilizes a TM210 thermal-magnetic trip unit to deliver reliable long-time and instantaneous (LI) protection. This unit mounts into Siemens P1, P2, and P3 panelboards. It acts as a cross-reference for the legacy ED42B015, requiring a mounting kit for older enclosures. Featuring a 65kAIC rating at 240VAC, this HACR-rated breaker handles demanding fault currents.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat legacy Siemens breaker does the 3VA4195-4ED24-0AA0 replace?
This 3VA4 breaker serves as a modern cross-reference for the legacy Siemens ED42B015. When retrofitting this breaker into older enclosures, a specific mounting kit may be required.
Is the 3VA4195-4ED24-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA4 molded case circuit breakers are reverse-feed capable, providing installation flexibility for commercial and industrial power distribution systems.
What panelboards are compatible with the 3VA4195-4ED24-0AA0?
This breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as Siemens switchboards.
Are the trip settings adjustable on this breaker?
No, the 3VA4195-4ED24-0AA0 features a TM210 thermal-magnetic trip unit with fixed thermal (overload) and fixed magnetic (short-circuit) settings. It is designed for straightforward installation without the need for field adjustments.
Is this circuit breaker HACR rated?
Yes, Siemens 3VA4 molded case circuit breakers carry an HACR rating, making them suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Can field-installable accessories be added to the 3VA4195-4ED24-0AA0?
Yes, the 3VA41 frame supports various field-installable internal accessories, including shunt trips, auxiliary switches, undervoltage releases, and alarm switches.
Can this breaker be used in DC power systems?
Yes, the 3VA4195-4ED24-0AA0 is rated for DC applications up to 250VDC, delivering a high interrupting capacity of 50kAIC for reliable DC circuit protection.
