Siemens 3VA5135-4ED21-0AA0 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Panel Mount
Siemens
3VA5135-4ED21-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5135-4ED21-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

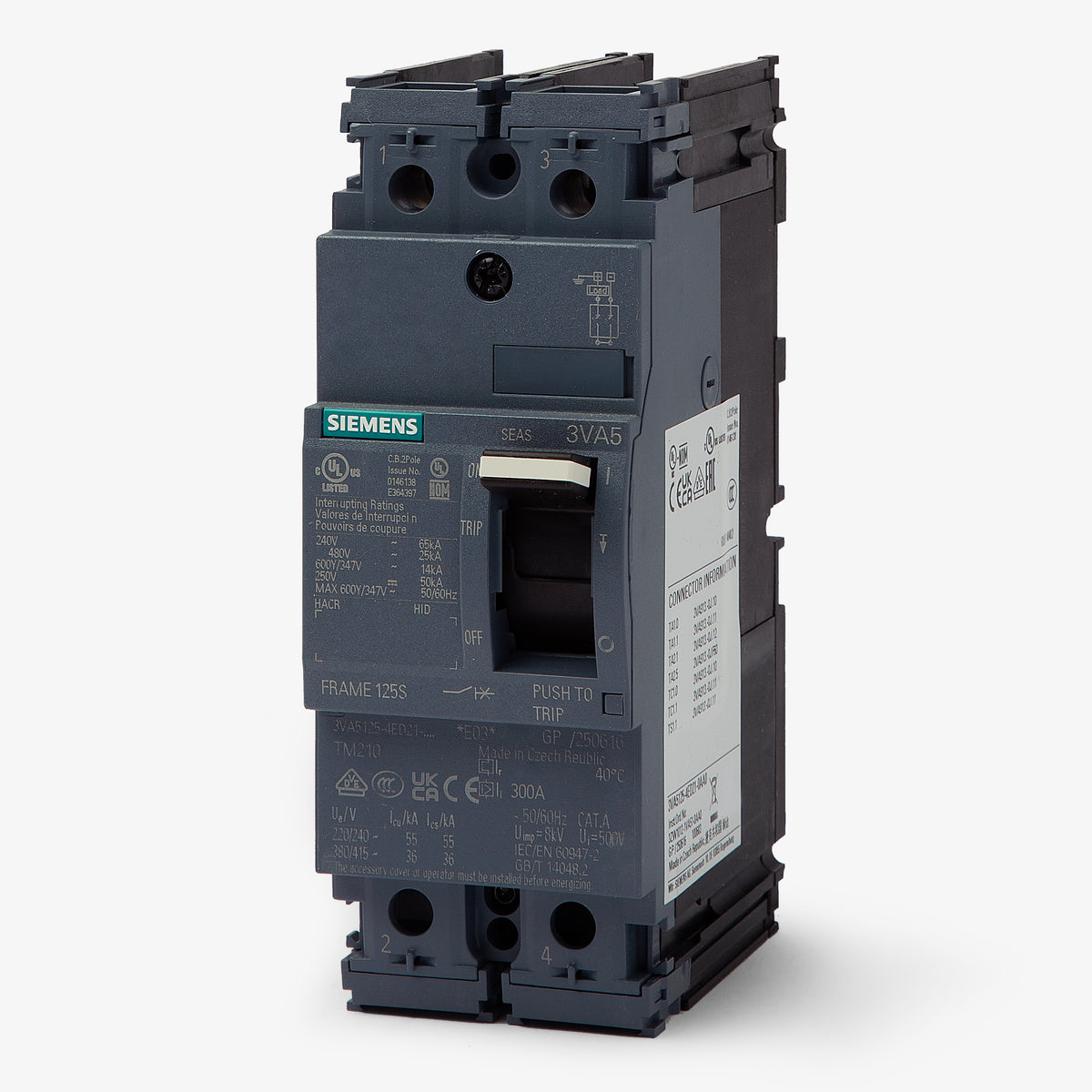

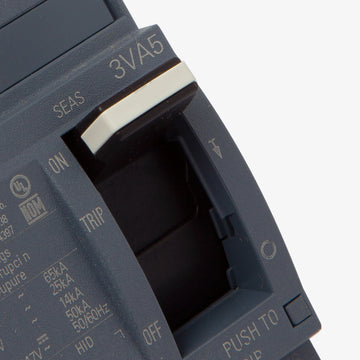

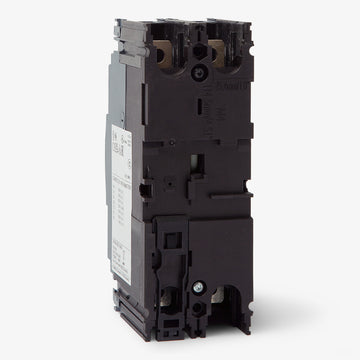

Siemens 3VA5135-4ED21-0AA0 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens 3VA5135-4ED21-0AA0 delivers robust overcurrent protection within a compact 125A frame. This 2-pole, 35A molded case circuit breaker provides a 25 kAIC rating at 480VAC. It installs into Siemens P1, P2, and P3 panelboards, serving as a drop-in replacement for legacy ED62B035 breakers. The unit utilizes a TM210 fixed thermal and magnetic trip mechanism, ensuring dependable long-time and instantaneous (LI) defense.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA5 |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA51 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Padlock Attachment, Handle Tie, DIN Rail Adapter, Lug Kits |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | ABS, CE, CSA, cULus, DNV, EAC, GL, Lloyd's, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens 3VA5135-4ED21-0AA0?
This 35A circuit breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the 3VA5135-4ED21-0AA0 replace older Siemens ED-frame breakers?
Yes, this 3VA51 frame breaker serves as a direct replacement for legacy Siemens ED62B035 circuit breakers in commercial and industrial applications.
What is the frame size of the 3VA5135-4ED21-0AA0?
This breaker is built on the Siemens 3VA51 frame, which is a 125A maximum frame size designed for compact overcurrent protection.
What wire sizes are accepted by the lugs on this 2-pole breaker?
The included lugs accommodate conductors ranging from 14 AWG to 2 AWG.
Is the trip unit on the 3VA5135-4ED21-0AA0 adjustable?
No, it features a TM210 thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip settings.
Can this Siemens 3VA5 breaker be used in DC applications?
Yes, it is rated for use on direct current systems up to 250VDC, providing a 50kA interrupting capacity for DC circuits.
Is the 3VA5135-4ED21-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA5 thermal-magnetic circuit breakers are UL listed for reverse feed applications.
