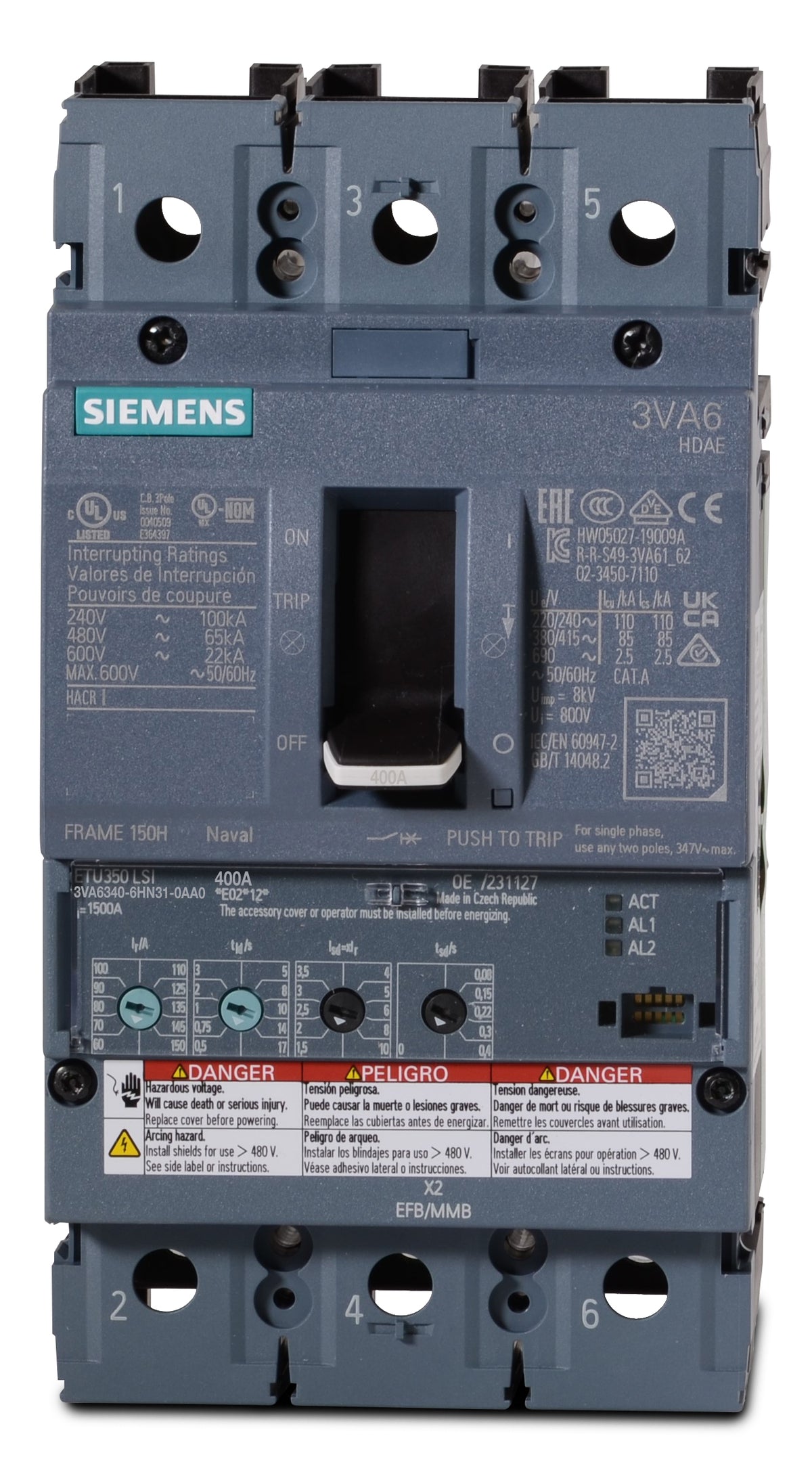

Siemens 3VA6340-6HN31-0AA0 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Panel Mount
Siemens
3VA6340-6HN31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6340-6HN31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6340-6HN31-0AA0 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Part of the Siemens SENTRON 3VA6 line, this 3-pole, 400A molded case circuit breaker is engineered for commercial, industrial, and marine power systems. It installs into Siemens P3, P4, and P5 panelboards, switchboards, and motor control centers. Equipped with an ETU350 electronic trip unit, it offers adjustable long-time, short-time, and instantaneous (LSI) settings for advanced coordination. The breaker delivers a 65 kAIC interrupting rating at 480V and features a current-limiting design.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6340-6HN31-0AA0 |
| Series | 3VA6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC |
| Amperage Range | 160-400A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lugs |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Naval Rated |
Product FAQs
6 answersWhat specific trip unit is used in the 3VA6340-6HN31-0AA0?
This breaker is equipped with a Siemens ETU350 electronic trip unit. It provides LSI (Long Time, Short Time, and Instantaneous) protection, allowing precise adjustability for complex coordination in commercial and industrial electrical systems.
Is the Siemens 3VA6340-6HN31-0AA0 suitable for reverse feed applications?
Yes, all Siemens 3VA63 electronic trip circuit breakers, including this model, are UL listed for reverse feed installations, making them highly versatile for varied electrical layouts.
Which Siemens panelboards are compatible with this circuit breaker?
This 3VA63 frame breaker is engineered for integration into Siemens P3, P4, and P5 panelboards, as well as compatible Siemens switchboards and motor control centers.
Can I integrate this 3VA6 breaker into a facility energy management system?
Yes, 3VA6 series circuit breakers with electronic trip units can be integrated into Siemens automation platforms and PC-based powermanager energy monitoring software when paired with the correct communication accessories.
What safety standards and certifications does this breaker meet?
This breaker holds strict global certifications, including UL 489 for molded case circuit breakers in North America, as well as CSA 22.2 No. 5-13 and IEC 60947-2 standards for international compliance.
Does the ETU350 trip unit on this breaker offer adjustable continuous current?
Yes, the solid-state ETU350 provides an adjustable continuous amperage setting (Long Time) alongside adjustable short-circuit pickup limits (Short Time and Instantaneous) to precisely match your specific load requirements.
