Siemens 3VA6460-6HL31-0AA0 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Panel Mount
Siemens
3VA6460-6HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6460-6HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

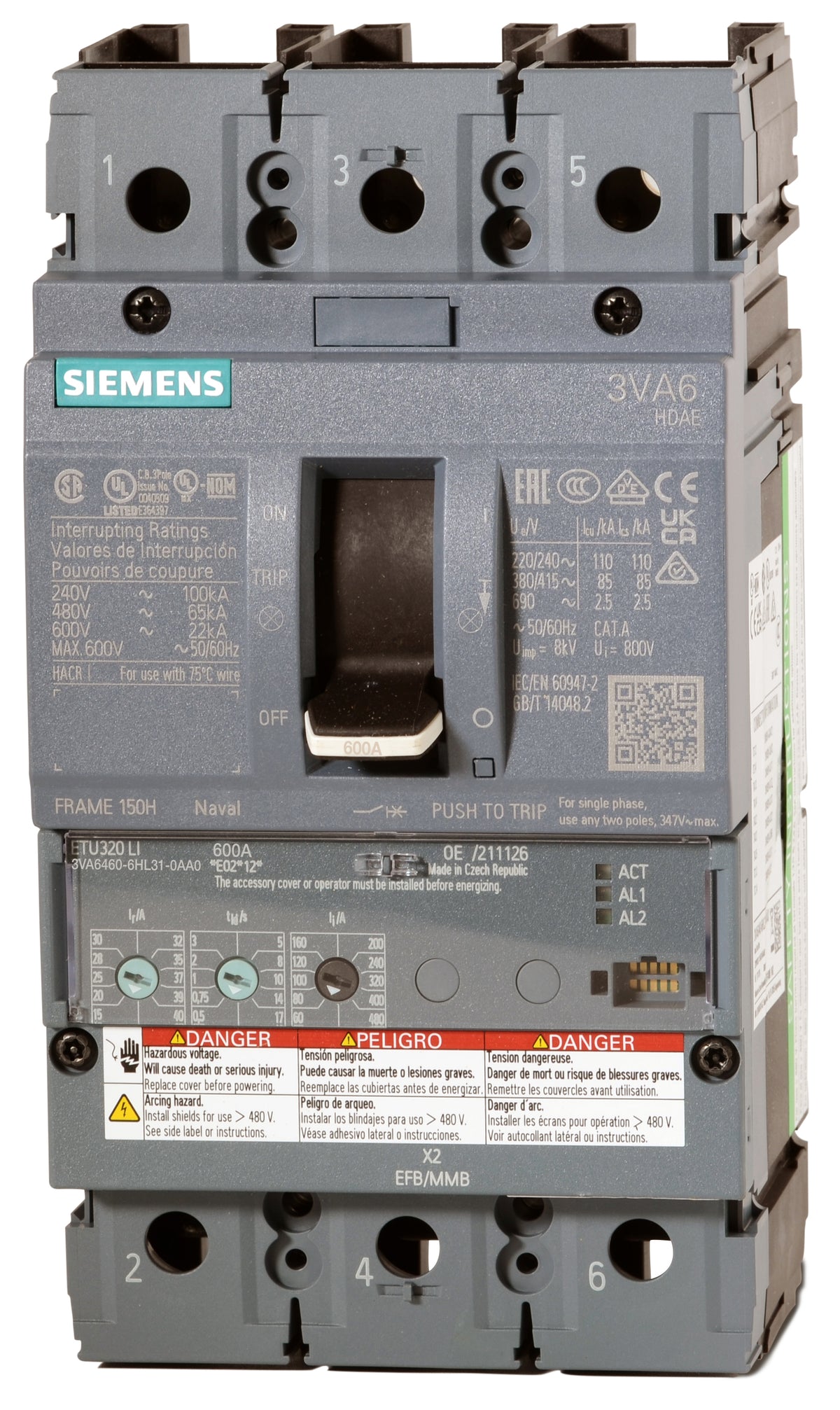

Siemens 3VA6460-6HL31-0AA0 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power systems, the 3VA6460-6HL31-0AA0 is a 600A, 3-pole molded case circuit breaker from Siemens. Designed for panel-mount configurations, this SENTRON 3VA6 frame breaker installs into Siemens P3, P4, and P5 panelboards and switchboards. It features a 65 kAIC rating at 480V and an ETU320 electronic trip unit with adjustable Long-Time and Instantaneous (LI) functions. This microprocessor-based sensing ensures highly accurate overcurrent and short-circuit protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6460-6HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P3, P4, P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Communication Module |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich enclosures are compatible with the 3VA6460-6HL31-0AA0 breaker?
This 600A 3VA6 frame circuit breaker is designed for installation in Siemens P3, P4, and P5 panelboards as well as Siemens switchboards. Ensure your enclosure is configured to accept a feed-thru 3VA64 frame.
Does the 3VA6460-6HL31-0AA0 come with wire lugs installed?
No, the -0AA0 suffix in the catalog number indicates this unit is supplied as a bare breaker without lugs. You must specify and purchase the correct mechanical or compression lugs separately based on your cable size and material.
What is the adjustable overload range for the ETU320 trip unit?
The solid state ETU320 LI trip unit allows you to adjust the Long-Time continuous current pickup (Ir) from a minimum of 240A up to the maximum 600A frame rating.
How much adjustability does the short-circuit protection offer?
The Instantaneous (Ii) short-circuit pickup can be set between 1.5 and 9 times the breaker's rated current (In), allowing for a maximum instantaneous trip setting of up to 5,400A for precise system coordination.
Does this circuit breaker provide ground fault protection?
No, the ETU320 LI trip unit only provides Long-Time (L) and Instantaneous (I) overcurrent and short-circuit protection. It does not include Equipment Ground Fault (LSIG or LIG) capabilities.
