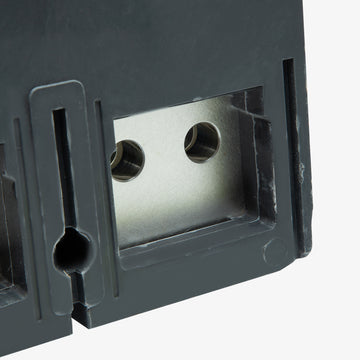

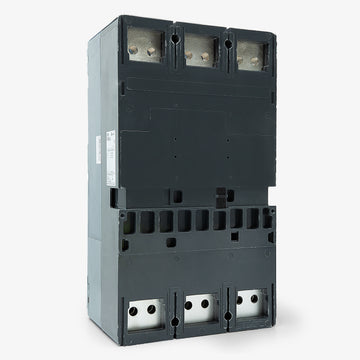

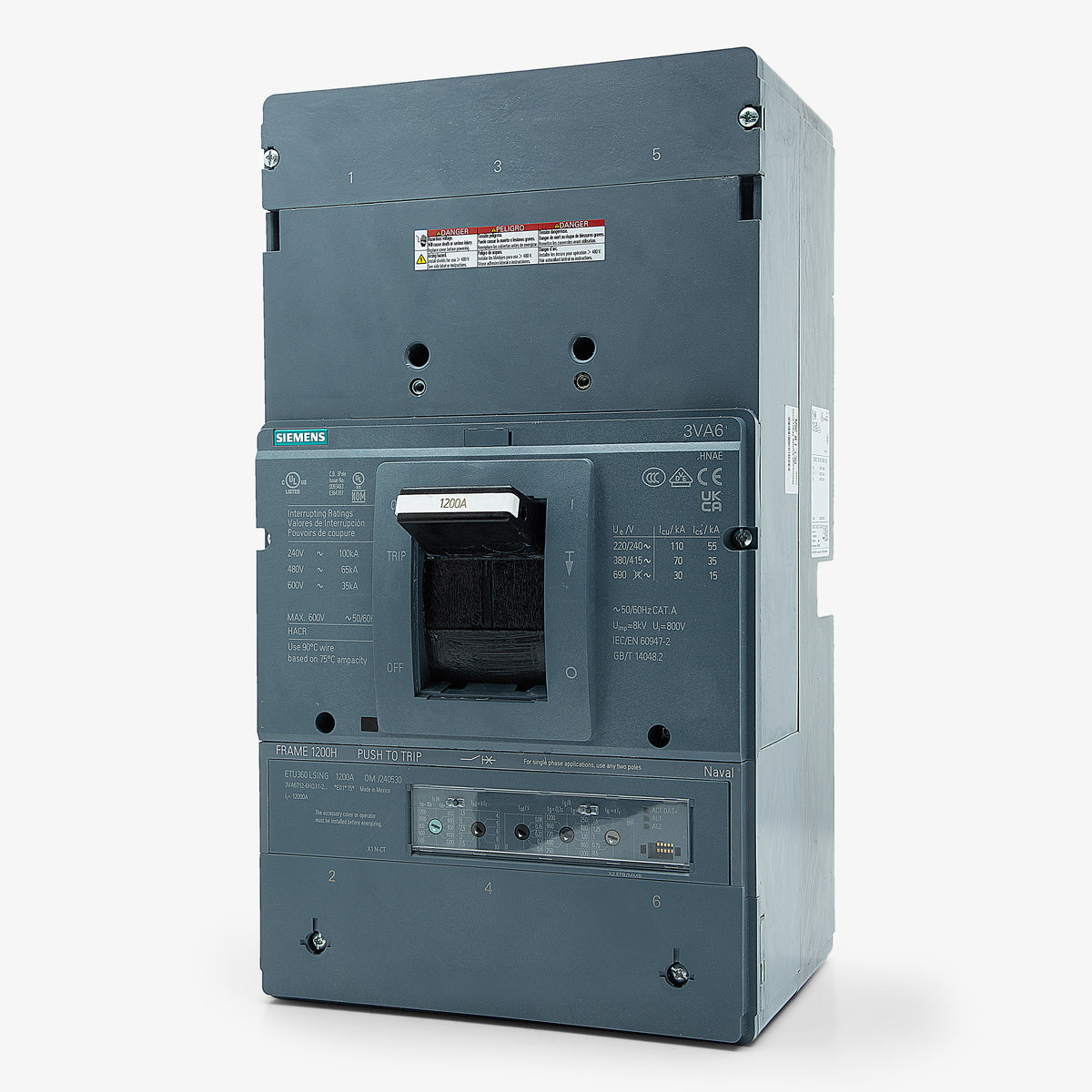

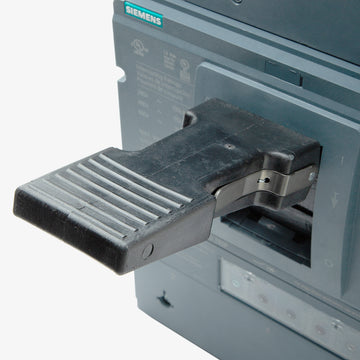

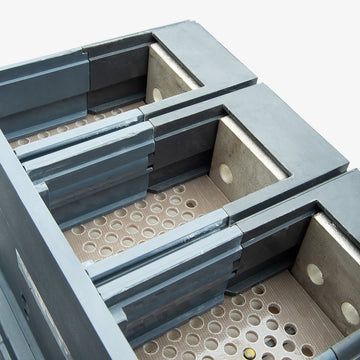

Siemens 3VA6712-6HN31-0AA0 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Panel Mount
Siemens
3VA6712-6HN31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6712-6HN31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6712-6HN31-0AA0 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Siemens 3VA6712-6HN31-0AA0 is a 3-pole molded case circuit breaker rated for 1200A. It utilizes an advanced ETU350 LSI electronic trip unit, allowing facility managers to adjust long-time, short-time, and instantaneous settings for optimal system coordination. This breaker installs into Siemens P5 panelboards, switchboards, and motor control centers. It delivers a 65kAIC interrupting capacity at 480V and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 500-1200A |
|---|
| Frame Type | 3VA67 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P5 Panelboards, Siemens Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Lug Kits, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN 60947-2, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, cULus, HACR, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
5 answersWhat panelboards are compatible with the 3VA6712-6HN31-0AA0 circuit breaker?
This 1200A breaker is designed for installation in Siemens P5 power panelboards, Siemens switchboards, and motor control centers. A separate copper strap kit is required for mounting in P5 panels.
What does the H in the 3VA6712-6HN31-0AA0 catalog number signify?
The H indicates the breaking capacity class for this Siemens 3VA6 series breaker. Class H signifies a high interrupting rating, delivering 65kA at 480V and 35kA at 600V.
How does the LSI electronic trip unit function on this 3VA67 frame breaker?
The LSI designation means the trip unit provides adjustable Long-Time, Short-Time, and Instantaneous protection. This allows electricians to fine-tune overload and short circuit response times for precise system coordination.
Are mounting straps included with this breaker for panelboard installation?
No, this breaker is supplied with lugs for wire termination but does not include panelboard mounting hardware. You will need to source the correct strap kit, such as the S3VA57TD, to mount this 3VA67 frame breaker into a Siemens P5 panelboard.
Which product family does this 1200A Siemens breaker belong to?
The 3VA6712-6HN31-0AA0 is part of the Siemens SENTRON family. Specifically, it falls under the 3VA6 series of molded case circuit breakers equipped with electronic trip units.
