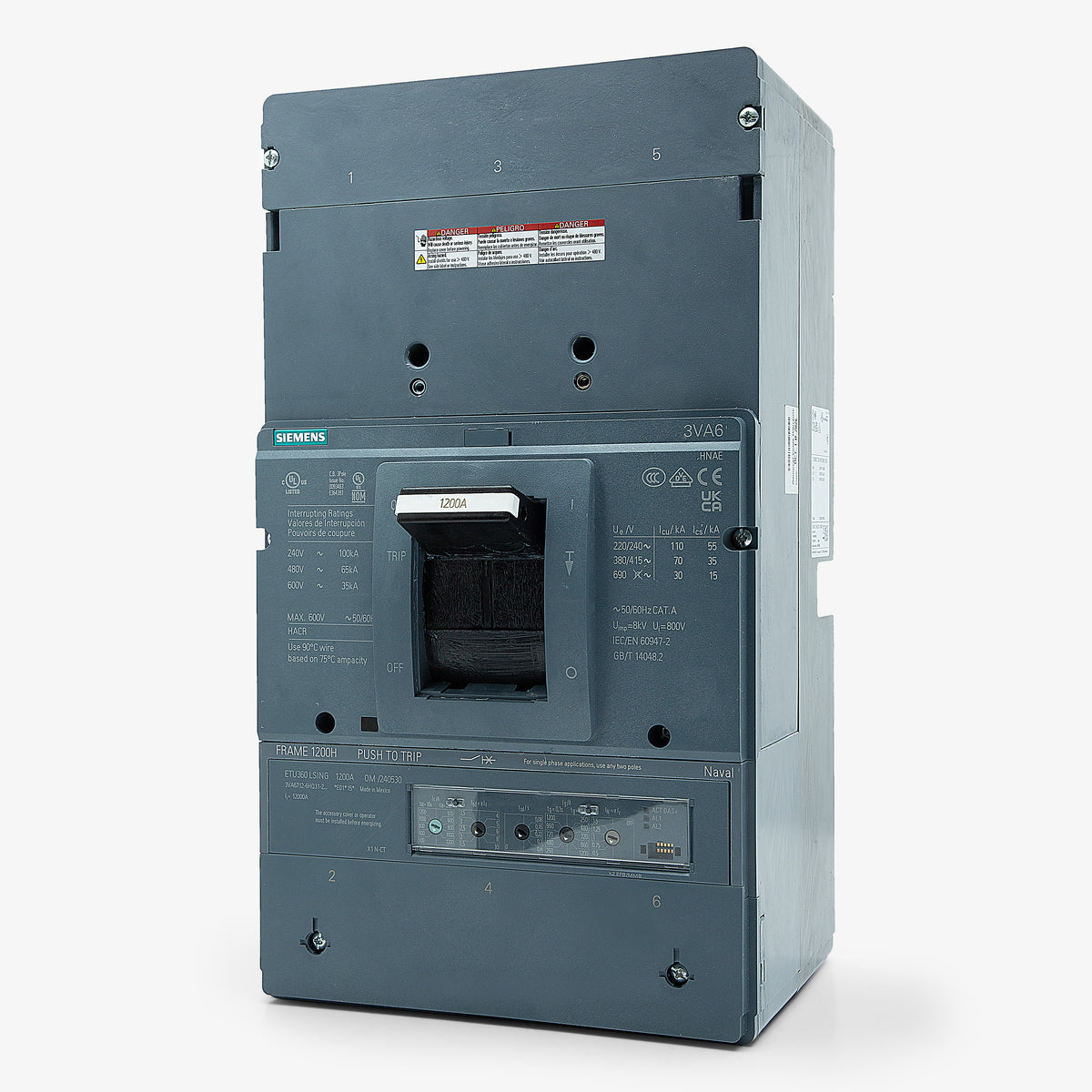

Siemens 3VA6712-6HQ31-0AA0 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Panel Mount
Siemens
3VA6712-6HQ31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6712-6HQ31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6712-6HQ31-0AA0 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
1200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding industrial applications, this 1200A molded case circuit breaker features an ETU360 LSIG electronic trip unit. The microprocessor-based design allows precise adjustments for long-time, short-time, instantaneous, and ground-fault protection, ensuring superior electrical safety. It mounts into Siemens P5 panelboards and switchboards, serving as a replacement for VL HNG3B120 and Sentron HND63B120 breakers. It provides a Class H 65kAIC rating at 480V.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 500-1200A |
|---|
| Frame Type | 3VA67 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P5 Panelboards, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | IEC 60947-2, UL 489, CSA C22.2 No. 5 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat types of enclosures or panels is the 3VA6712-6HQ31-0AA0 compatible with?
This 1200A breaker is designed for installation in Siemens P5 panelboards and switchboards.
Can the 3VA6712-6HQ31-0AA0 replace older Siemens 1200A breakers?
Yes, this 3VA6 series breaker can serve as a replacement for legacy Siemens VL HNG3B120 and Sentron HND63B120 molded case circuit breakers.
Is the Siemens 3VA6712-6HQ31-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA6 electronic trip circuit breakers are UL listed for reverse feed applications, allowing for line and load interchangeability.
What protective settings can be adjusted on the ETU360 trip unit?
The LSIG electronic trip unit allows precise adjustments for long-time, short-time, instantaneous, and ground-fault protection to ensure accurate system coordination.
Does this circuit breaker provide ground fault protection?
Yes, the integrated LSIG electronic trip unit includes built-in ground-fault protection for enhanced electrical safety and equipment protection.
