Siemens B315H Molded Case Circuit Breaker
- 15A
- 3 Pole

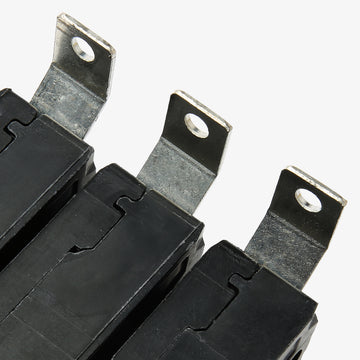

- Bolt-On
Siemens
B315H
Molded Case Circuit Breaker
Brand
Siemens
SKU
B315H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

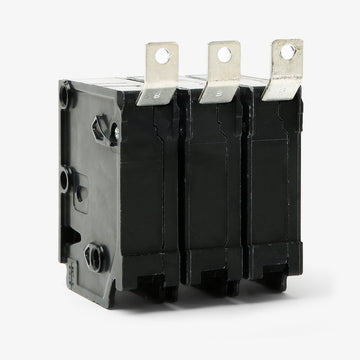

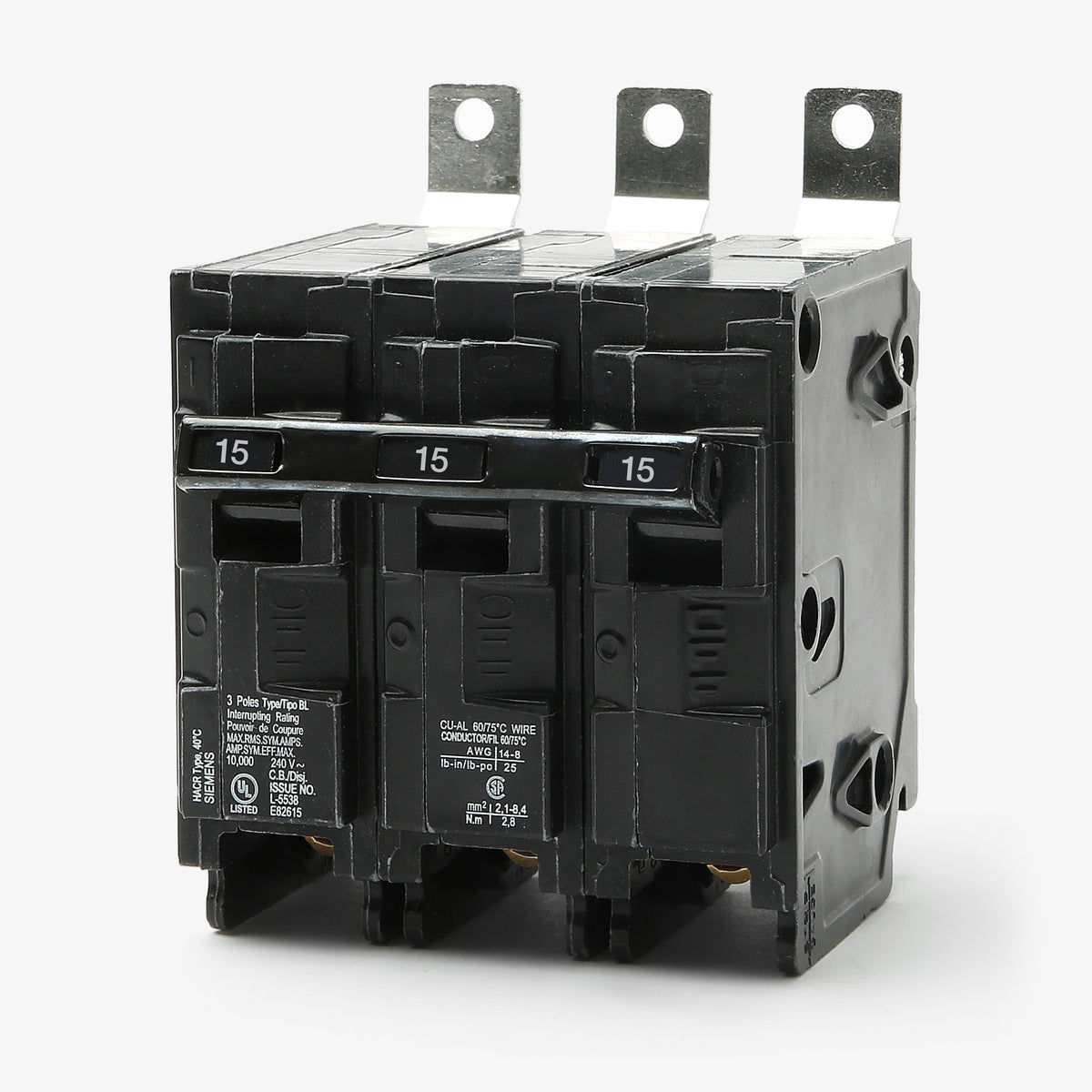

Siemens B315H - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B315H - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B315H |
| Series | B |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens B315H - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B315H-R |
| Series | B |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust 22kAIC fault protection, the Siemens B315H handles demanding commercial electrical loads with proven thermal-magnetic trip technology. This 15-amp, three-pole molded case circuit breaker provides essential long-time and instantaneous protection functions. The bolt-on design integrates seamlessly into Siemens P1, P2, P3, P4, and P5 series panelboards. As an HACR-rated component, it offers versatile application support while maintaining a compact footprint for efficient layouts.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B315H |
| Series | B |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens B315H?
The B315H is a bolt-on circuit breaker designed for use in Siemens P1, P2, P3, P4, and P5 commercial panelboards. Because it requires a bolted connection to the busbar, it will not fit in standard plug-on residential load centers.
What does the "H" in the B315H catalog number indicate?
The "H" designates this as a high-interrupting breaker within the Siemens B-frame family. It provides a 22kAIC interrupting rating at 240VAC, which is higher than the standard 10kAIC rating found on the base B315 model.

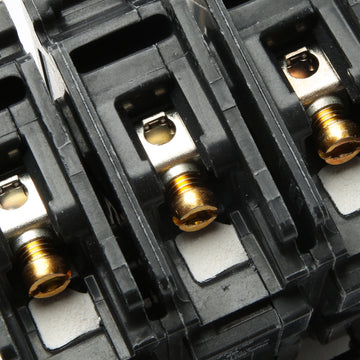

What are the acceptable wire sizes for the B315H breaker terminals?
The terminal lugs accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire. Always refer to the side label on the breaker for exact torque specifications before terminating conductors.
Is the Siemens B315H circuit breaker HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires circuit protection with this specific designation.
Can the B315H replace older ITE circuit breakers?
Yes. Siemens acquired ITE, and the B315H is the direct replacement for older ITE brand breakers with the same B315H catalog number or those designated as 15A, 3-pole BLH type bolt-on breakers.
