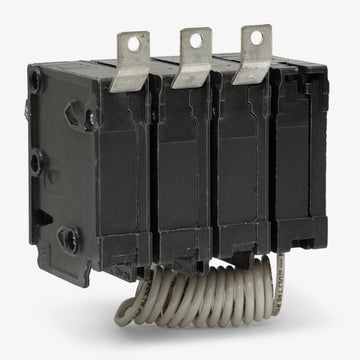

Siemens B320H00S01 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Siemens
B320H00S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B320H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B320H00S01 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description

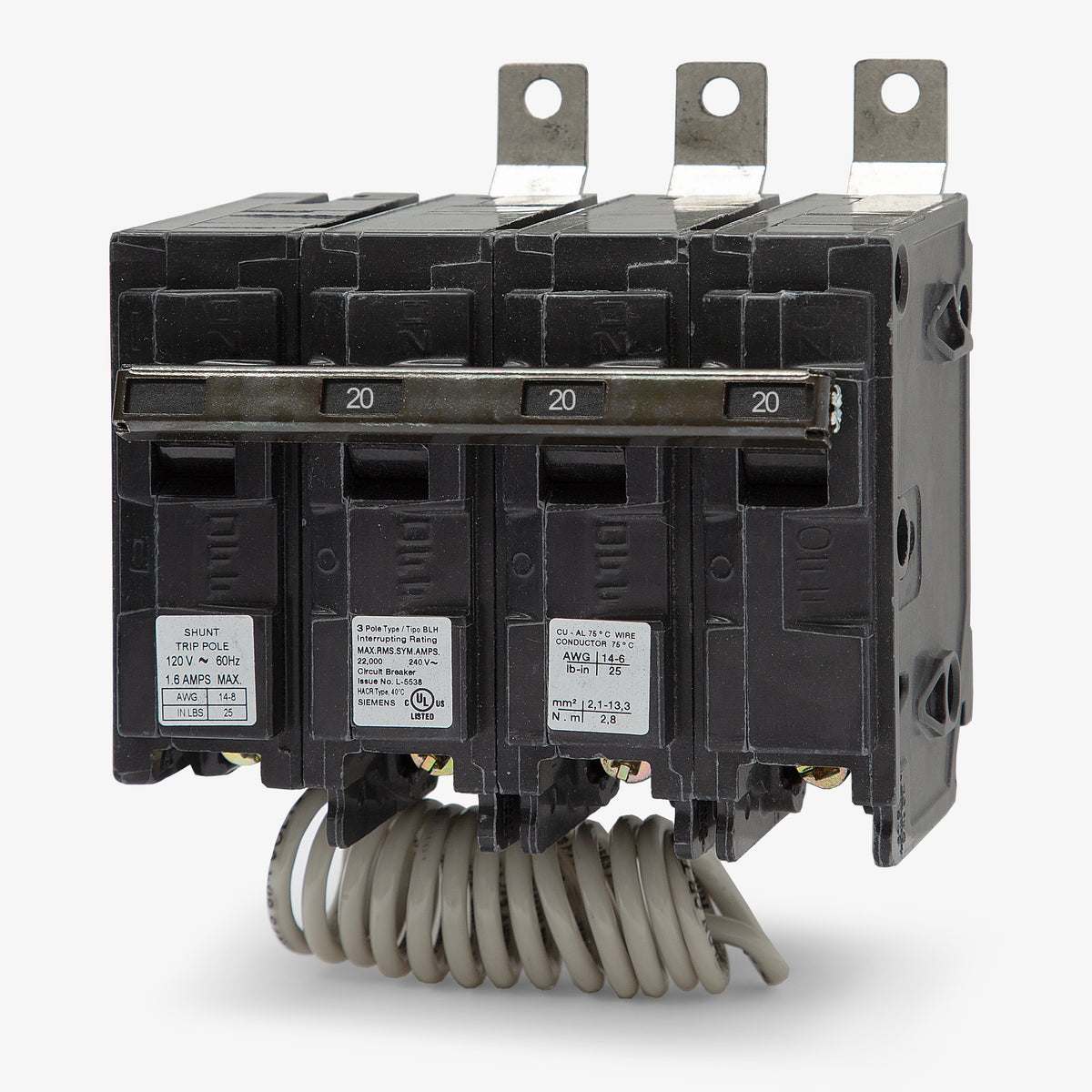

Built for commercial safety systems, the Siemens B320H00S01 is a 3-pole, 20A molded case circuit breaker featuring a factory-installed 120VAC shunt trip. This allows facility managers to remotely disconnect power during emergencies. The bolt-on unit mounts into Siemens P1, P2, and P3 panelboards. It utilizes thermal-magnetic trip technology for standard overcurrent and short-circuit protection. Rated at 22 kAIC at 240VAC, this HACR-rated breaker ensures reliable performance.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B320H00S01 |
| Series | B |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the 00S01 suffix indicate on the Siemens B320H00S01?
The 00S01 suffix designates a factory-installed 120V AC shunt trip. This internal accessory allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency shutdowns or automated control systems.
What is the difference between the Siemens B320H and the B320H00S01?
Both are 20A, 3-pole, B-frame breakers with a 22kAIC rating at 240VAC. The B320H00S01 includes a factory-installed 120V AC shunt trip for remote disconnect applications, whereas the standard B320H does not include this internal accessory.
Which panelboards are compatible with the B320H00S01 circuit breaker?
This bolt-on circuit breaker is designed specifically for installation in Siemens P1, P2, and P3 panelboards.
How is the B320H00S01 secured inside the panelboard?

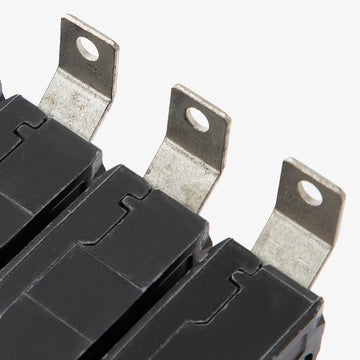

It features a bolt-on connection, meaning it fastens directly to the panelboard bus bars with screws. This provides a secure, vibration-resistant connection typical in commercial and industrial environments.
Does the B320H00S01 require a separate control circuit for the shunt trip?
Yes, the factory-installed 120V AC shunt trip requires a dedicated control power source and an external switching device, such as a push button or relay, to send the voltage signal that trips the breaker.
What wire sizes and materials are approved for the lugs on this breaker?

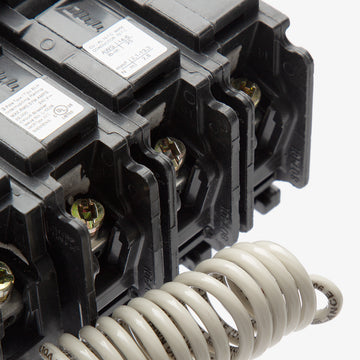

The load side lugs accept 14-10 AWG copper (Cu) wire or 12-10 AWG aluminum (Al) wire.
How does the thermal-magnetic trip unit function on this breaker?
The fixed thermal-magnetic trip unit provides two types of protection. The thermal element responds to prolonged overcurrents for long-time protection, while the magnetic element trips the breaker immediately during a short circuit for instantaneous protection.
