Siemens B315H00S01 Molded Case Circuit Breaker
- 15A
- 3 Pole

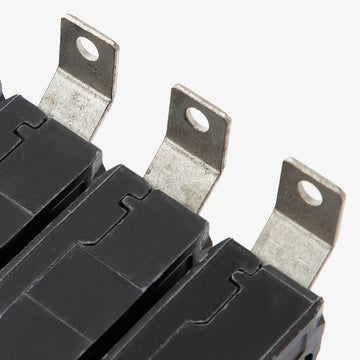

- Bolt-On
Siemens
B315H00S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B315H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B315H00S01 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description

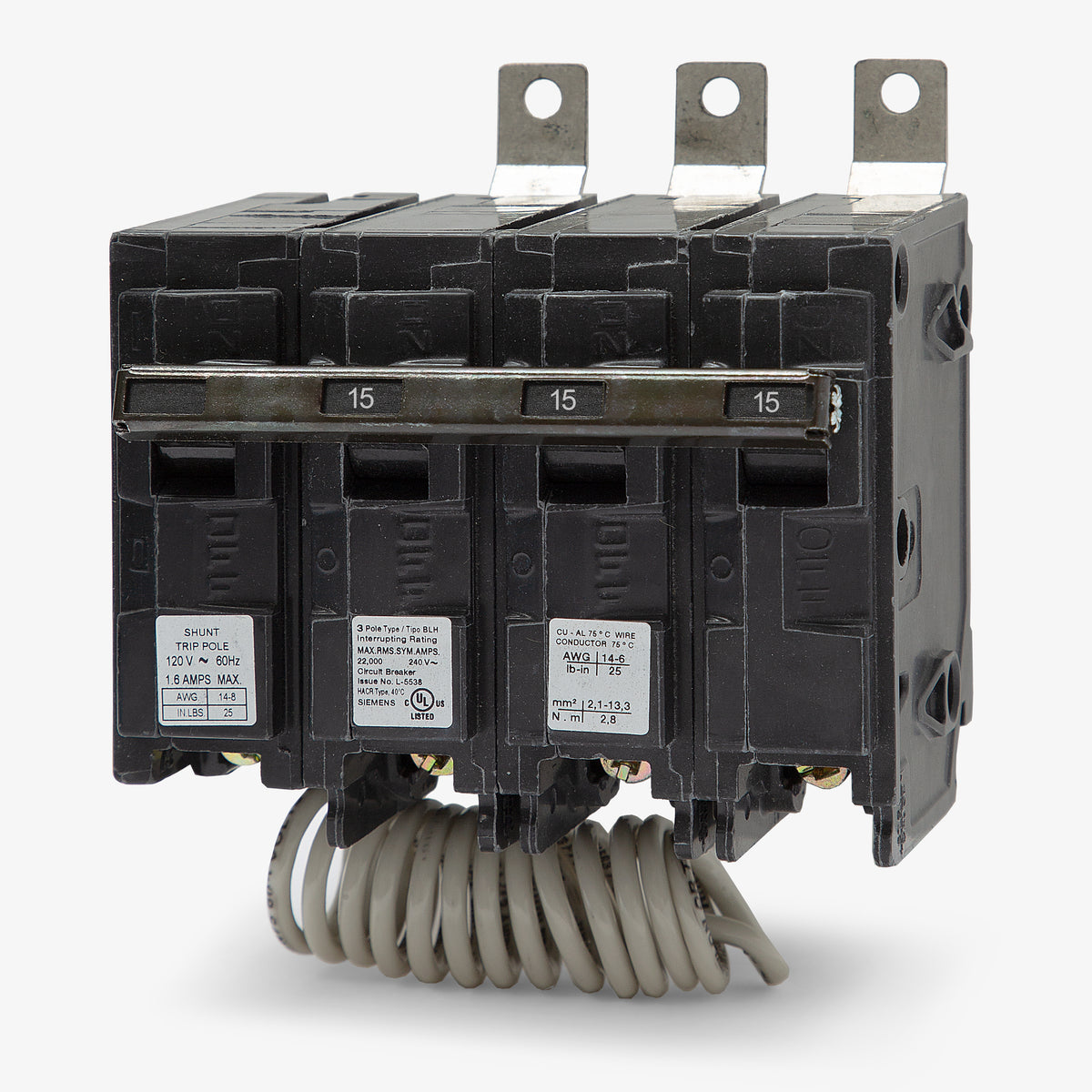

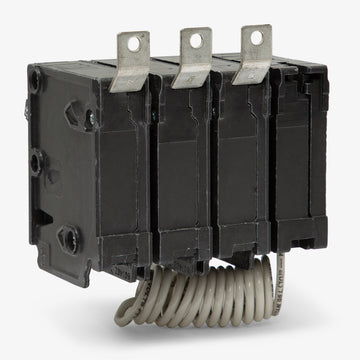

Integrating a factory-installed shunt trip, the Siemens B315H00S01 allows for reliable remote circuit interruption in commercial facilities. This 15-amp, three-pole molded case circuit breaker utilizes thermal-magnetic technology for standard overcurrent protection. It fastens securely into Siemens P1 through P5 panelboards using a standard bolt-on configuration. With a 22kA interrupting capacity at 240VAC, this HACR-rated unit combines high performance with advanced control capabilities.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B315H00S01 |
| Series | B |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards accept the B315H00S01 circuit breaker?
This bolt-on breaker mounts directly into the buswork of Siemens P1, P2, P3, P4, and P5 panelboards.
What does the 00S01 suffix mean on the B315H00S01 catalog number?
The 00S01 suffix indicates that the breaker is equipped with a factory-installed 120VAC shunt trip. The base B315H is the same 15A, 3-pole, 22kAIC breaker but without the remote trip accessory.
How does the B315H00S01 differ from a standard B315 breaker in terms of fault protection?
The H in the catalog number indicates a high interrupting rating. The B315H00S01 provides 22kAIC at 240VAC, whereas a standard B315 offers only 10kAIC.
Can the B315H00S01 be tripped remotely by a fire alarm system?
Yes, the factory-installed 120VAC shunt trip allows the breaker to be opened remotely by an external voltage signal, which is commonly required for emergency stops or fire alarm integration.

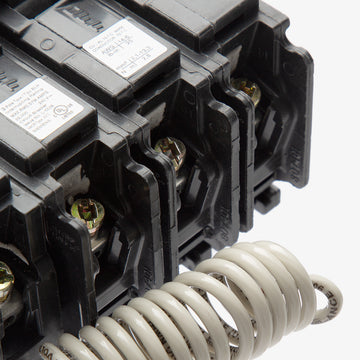

Are the lugs on the B315H00S01 rated for aluminum wire?
Yes, the terminal lugs accept both copper and aluminum conductors. Use 14 to 10 AWG for copper wire, or 12 to 10 AWG for aluminum wire.
