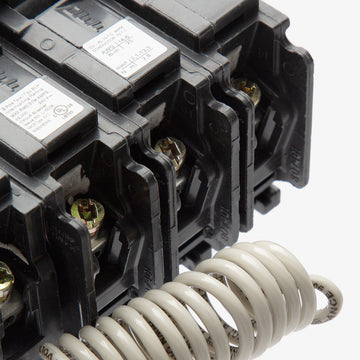

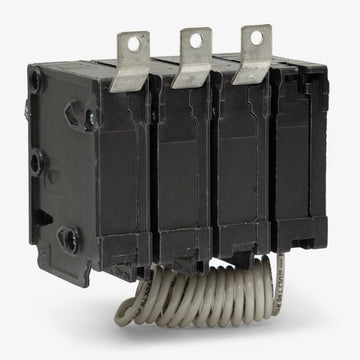

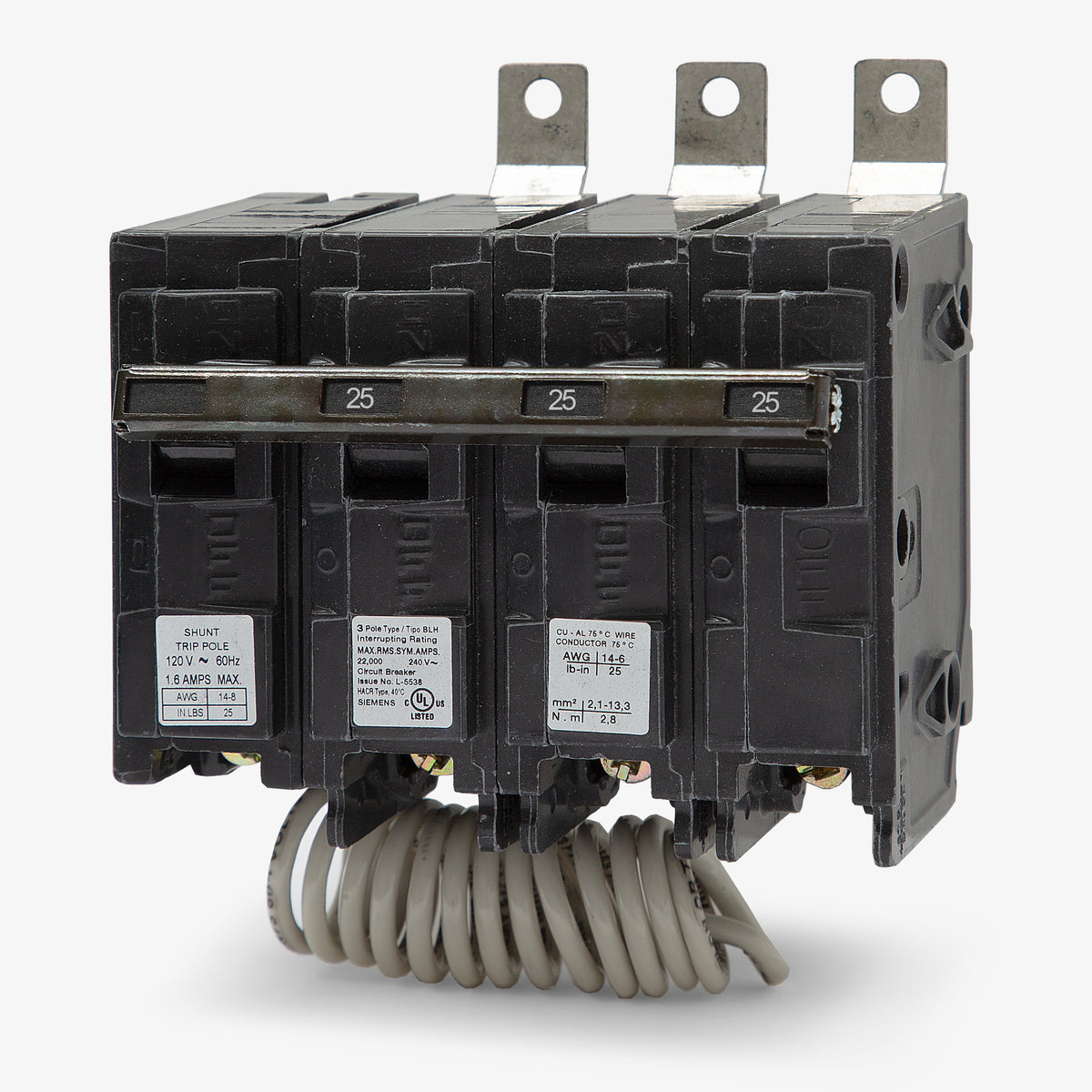

Siemens B325H00S01 Molded Case Circuit Breaker
- 25A
- 3 Pole

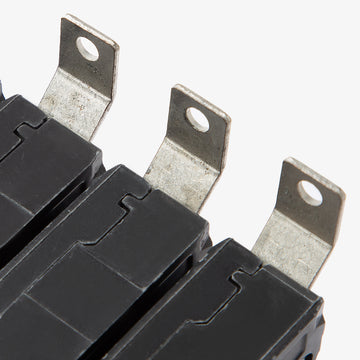

- Bolt-On
Siemens
B325H00S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B325H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B325H00S01 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Offering advanced control for commercial systems, the Siemens B325H00S01 includes a factory-installed 120VAC shunt trip for remote circuit disconnection. This 3-pole, 25-amp molded case circuit breaker delivers reliable thermal-magnetic protection for 240VAC applications. The bolt-on configuration is engineered to fit Siemens P1, P2, P3, P4, and P5 panelboards. Rated at 22kAIC, this HACR-certified BLH type breaker ensures superior safety and performance in demanding industrial environments.Specifications
| Brand | Siemens |
|---|---|
| Series | B |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the 00S01 suffix indicate on this Siemens breaker?
The 00S01 suffix signifies that the breaker comes with a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely via an external control signal.
Can I install the B325H00S01 in a standard residential load center?
No. This is a bolt-on BLH type breaker designed specifically for commercial Siemens P1, P2, P3, P4, and P5 panelboards. It will not fit in standard plug-on residential load centers.
What is the difference between the B325H and the B325H00S01?
Both are 25A, 3-pole, 240VAC breakers with a 22kAIC rating. However, the B325H00S01 includes a factory-installed 120VAC shunt trip for remote disconnection, whereas the standard B325H does not.
Is the B325H00S01 breaker HACR rated for HVAC applications?
Yes, this breaker is HACR certified, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Does the B325H00S01 provide ground fault or arc fault protection?
No. This breaker utilizes standard thermal-magnetic trip technology for overload and short-circuit protection. It does not provide GFCI or AFCI protection.
Can this breaker be used in a 480V electrical system?
No. The maximum voltage rating for this breaker is 240VAC. It is not suitable for 480V or 277/480V commercial systems.
