Siemens B325 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
B325
Molded Case Circuit Breaker
Brand
Siemens
SKU
B325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

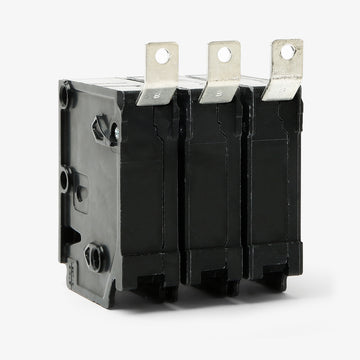

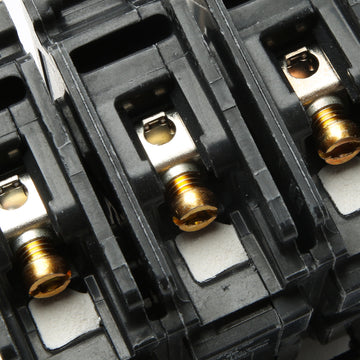

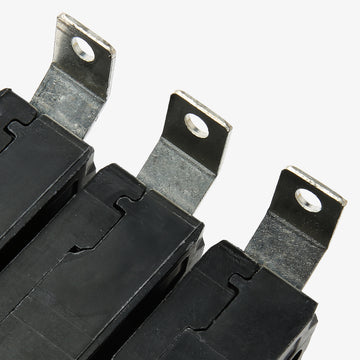

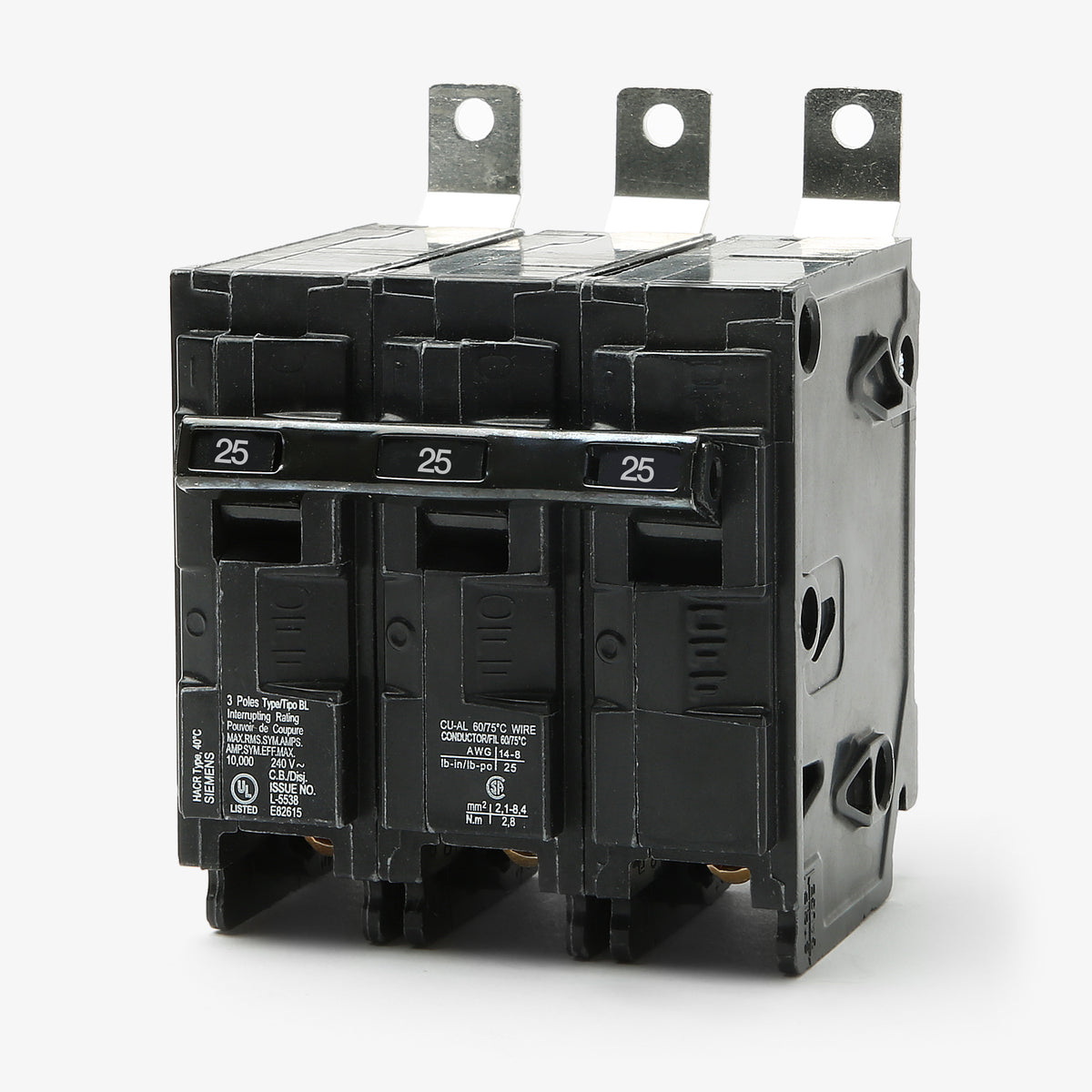

Siemens B325 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B325 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B325 |
| Series | BL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Sold out
Quantity
Siemens B325 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B325-R |
| Series | BL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
The Siemens B325 is a robust 25-amp, 3-pole molded case circuit breaker engineered for reliable commercial power management. Utilizing proven thermal-magnetic trip technology, it provides essential long-time and instantaneous overcurrent protection. This BL-type breaker mounts into Siemens P1, P2, P3, P4, and P5 panelboards via a sturdy bolt-on connection. It carries a 10 kAIC rating at 240VAC, is fully HACR rated, and includes Insta-Wire terminals to streamline the wiring process.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B325 |
| Series | BL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 10-8 AWG (Cu), 10-6 AWG (Al) |
| Max Wire | 8 AWG (Cu), 6 AWG (Al) |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Product FAQs
4 answersWhich panelboards accept the Siemens B325?
The B325 is a Type BL bolt-on breaker engineered specifically for commercial panelboards, including the Siemens P1, P2, P3, P4, and P5 series. It is not compatible with standard residential load centers, which typically require plug-on Type QP circuit breakers.
Is the Siemens B325 suitable for use as a back-fed main breaker?
Yes. Siemens Type BL circuit breakers, including the B325, are thermal-magnetic breakers without line or load specific markings, making them suitable for reverse feeding. When used as a back-fed main in a panelboard, code requires a separate hold-down kit like the Siemens MBKBFA.
Does the B325 carry an HACR rating?
Yes. The B325 is HACR rated, meaning it is safety certified to provide overcurrent protection for the group motor loads commonly found in commercial heating, air conditioning, and refrigeration equipment.
Can the Siemens B325 replace a legacy ITE B325?
Yes. Siemens acquired ITE, and the current Siemens B325 is the direct, UL listed replacement for older ITE B325 and ITE Gould B325 bolt-on circuit breakers.
