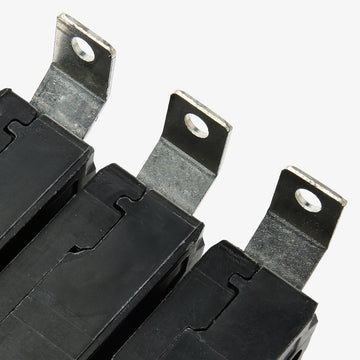

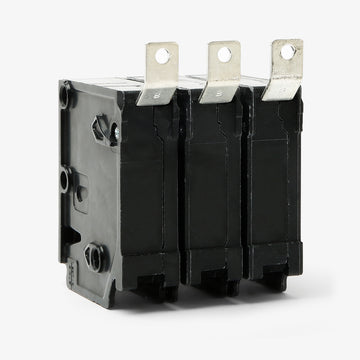

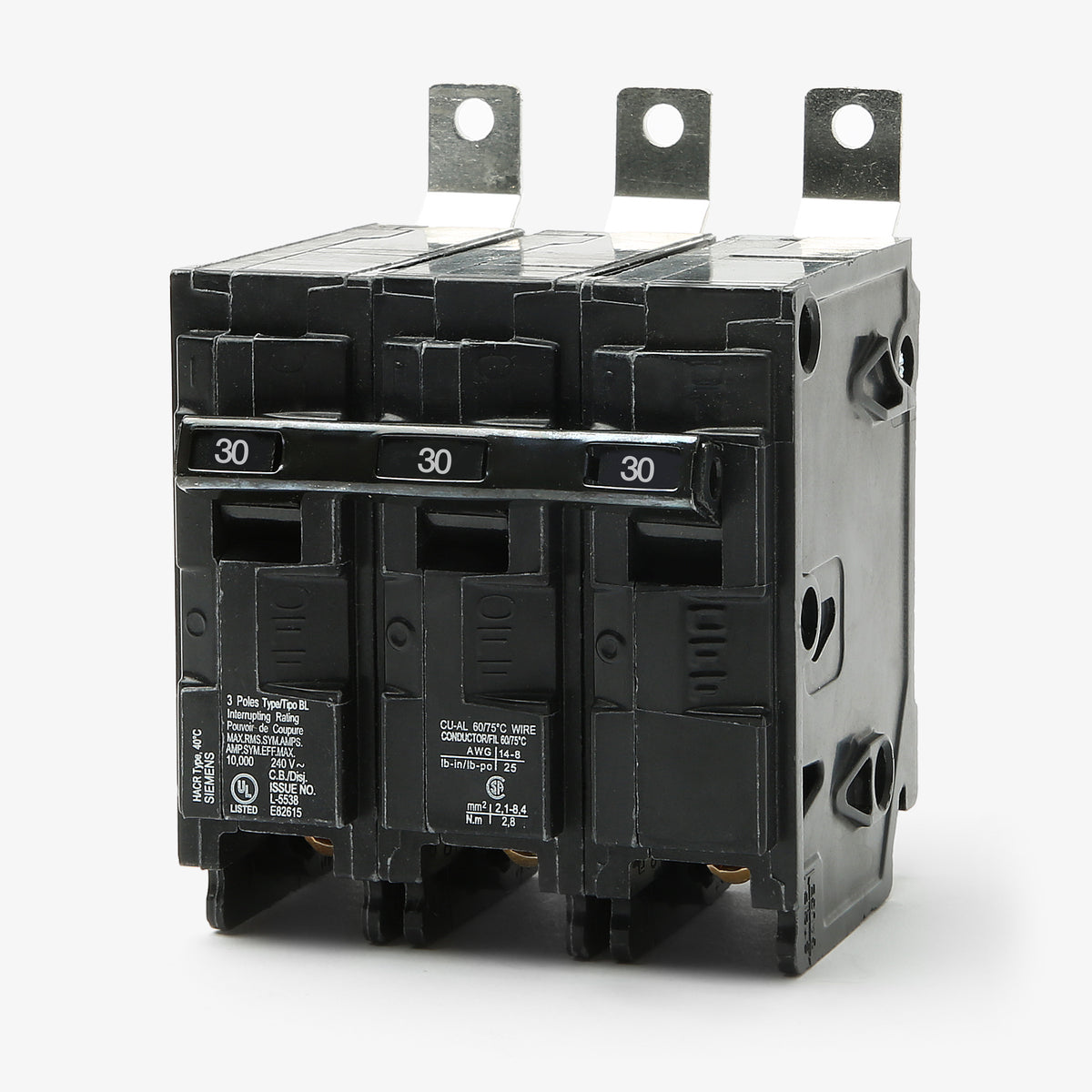

Siemens B330H Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
B330H
Molded Case Circuit Breaker
Brand
Siemens
SKU
B330H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B330H - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B330H - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B330H |
| Series | B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Insta-Wire, High Interrupting Capacity |
Sold out
Quantity
Siemens B330H - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B330H-R |
| Series | B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Insta-Wire, High Interrupting Capacity |
Similar Items
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens B330H is a 3-pole, 30A molded case circuit breaker. It provides essential long-time and instantaneous protection for branch circuits. Designed with a bolt-on mounting style, this BLH type breaker fits into Siemens P1 through P5 panelboards. It serves as a functional cross-reference to BAB3030H and QOB330VH breakers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B330H |
| Series | B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Insta-Wire, High Interrupting Capacity |
Product FAQs
7 answersWhat panelboards are compatible with the Siemens B330H?
This bolt-on breaker is designed for direct mounting into Siemens P1, P2, P3, P4, and P5 panelboards. It requires three pole spaces and fits standard B-frame or BLH footprints.
Is the Siemens B330H circuit breaker rated for HVAC equipment?
Yes, this unit is HACR rated. It is fully approved to protect branch circuits serving heating, air conditioning, and refrigeration equipment.
What are the wire size requirements for the B330H?

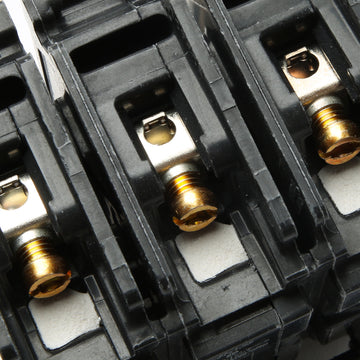

The factory load lugs accept 14 to 6 AWG copper conductors or 12 to 6 AWG aluminum conductors. Always refer to the breaker label for proper torque specifications prior to terminating.
What is the difference between Siemens BL and BLH circuit breakers?
Standard BL breakers carry a 10kAIC rating at 240VAC. BLH models like this one are high-interrupting versions that offer a 22kAIC rating while maintaining the exact same physical dimensions and bolt-on requirements.
How does the trip unit operate on this 30A breaker?
It features a fixed, non-interchangeable thermal magnetic trip mechanism. The thermal element provides long-time protection against continuous overloads, while the magnetic element provides instantaneous protection to clear severe short circuits.
What industry safety standards apply to the B330H?
This breaker is UL 489 listed and CSA certified, making it compliant for commercial and industrial low voltage branch circuit protection.
Can the Siemens B330H be reverse fed?
Yes. Because the thermal magnetic trip unit is fixed and not removable, standard Siemens BLH series breakers like this model are suitable for reverse feed applications per UL 489 guidelines.
