Siemens B335H Miniature Circuit Breaker
- 35A
- 3 Pole

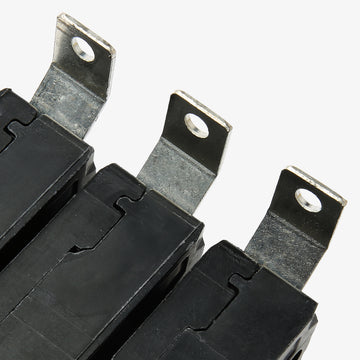

- Bolt-On
Siemens
B335H
Miniature Circuit Breaker
Brand
Siemens
SKU
B335H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

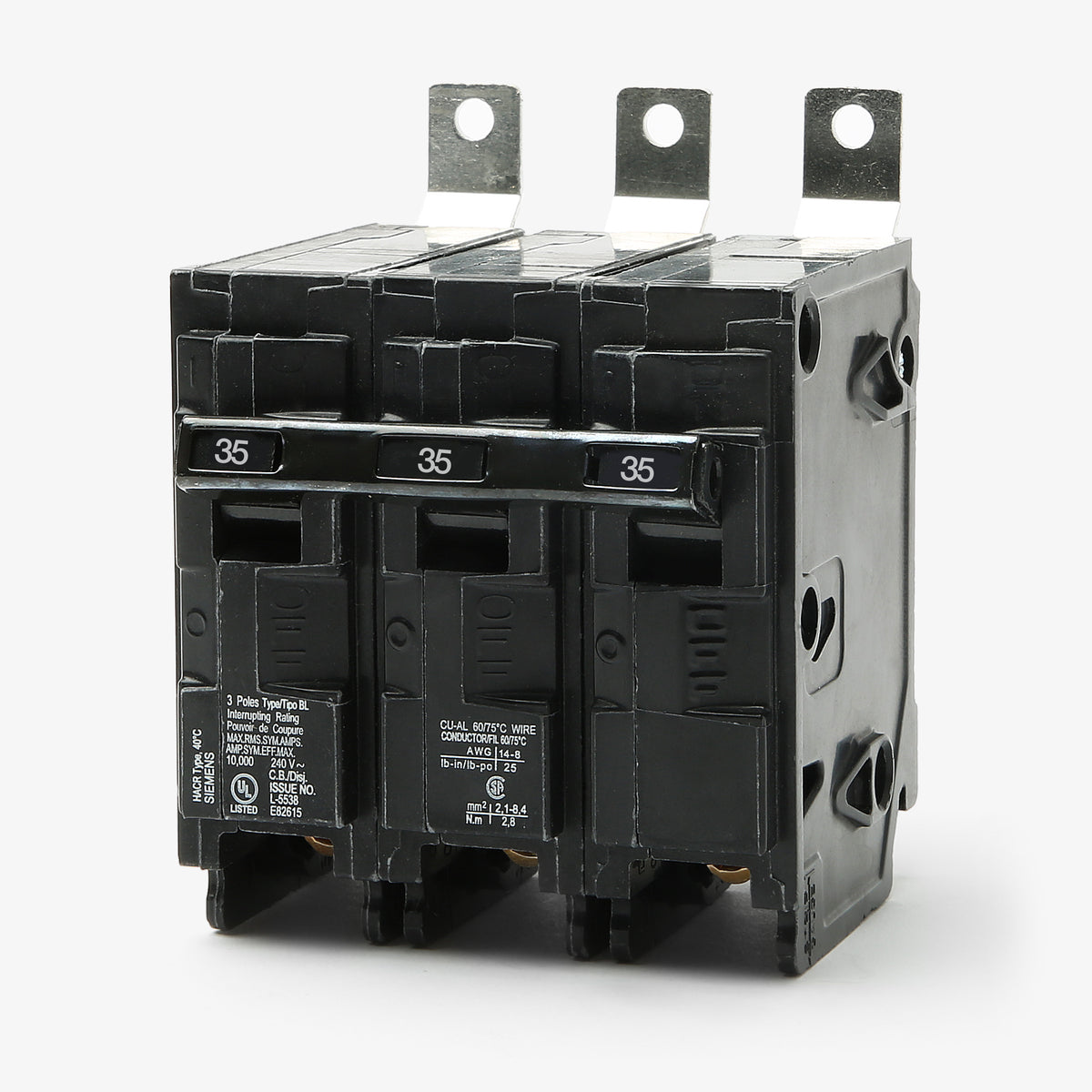

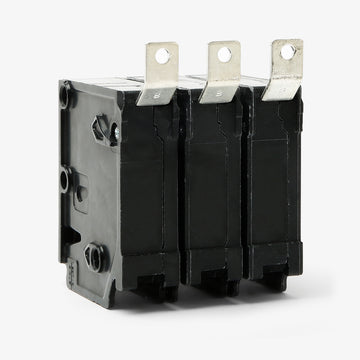

Siemens B335H - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description

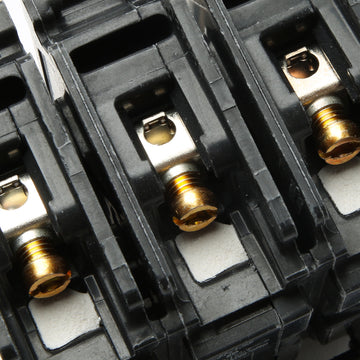

Built for robust commercial applications, the Siemens B335H is a 3-pole, 35A miniature circuit breaker from the BLH series. It provides an elevated interrupting capacity of 22kAIC at 240VAC, ensuring superior protection against severe electrical faults. This unit mounts securely into Siemens P1 through P5 panelboards via a standard bolt-on connection. It features Insta-Wire connectors and load side lugs. Delivering fixed thermal-magnetic protection, this breaker is fully HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B335H |
| Series | B |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
Product FAQs
6 answersWhich panelboards accept the Siemens B335H circuit breaker?
The B335H mounts via a bolt-on connection and is compatible with Siemens P1, P2, P3, P4, and P5 commercial panelboards.
What wire gauges are accepted by the B335H terminals?
The included load-side lugs accommodate 8 to 6 AWG copper conductors or 8 to 4 AWG aluminum conductors.
What is the difference between the Siemens B335 and the B335H?
Both are 35A, 3-pole breakers, but they have different short-circuit interrupting capacities. The standard B335 is rated for 10kAIC at 240VAC, while the B335H is the high-interrupting variant rated for 22kAIC at 240VAC.
Is the Siemens B335H suitable for HVAC equipment?
Yes, the B335H is fully HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration systems.
What does the LI trip function on the B335H indicate?
The LI designation means the breaker provides Long-Time overload protection and Instantaneous short-circuit protection through its thermal-magnetic trip mechanism.
Is the B335H approved for reverse feed applications?
Yes, because it utilizes a fixed, non-interchangeable thermal-magnetic trip unit, the B335H is UL listed for reverse feeding.
