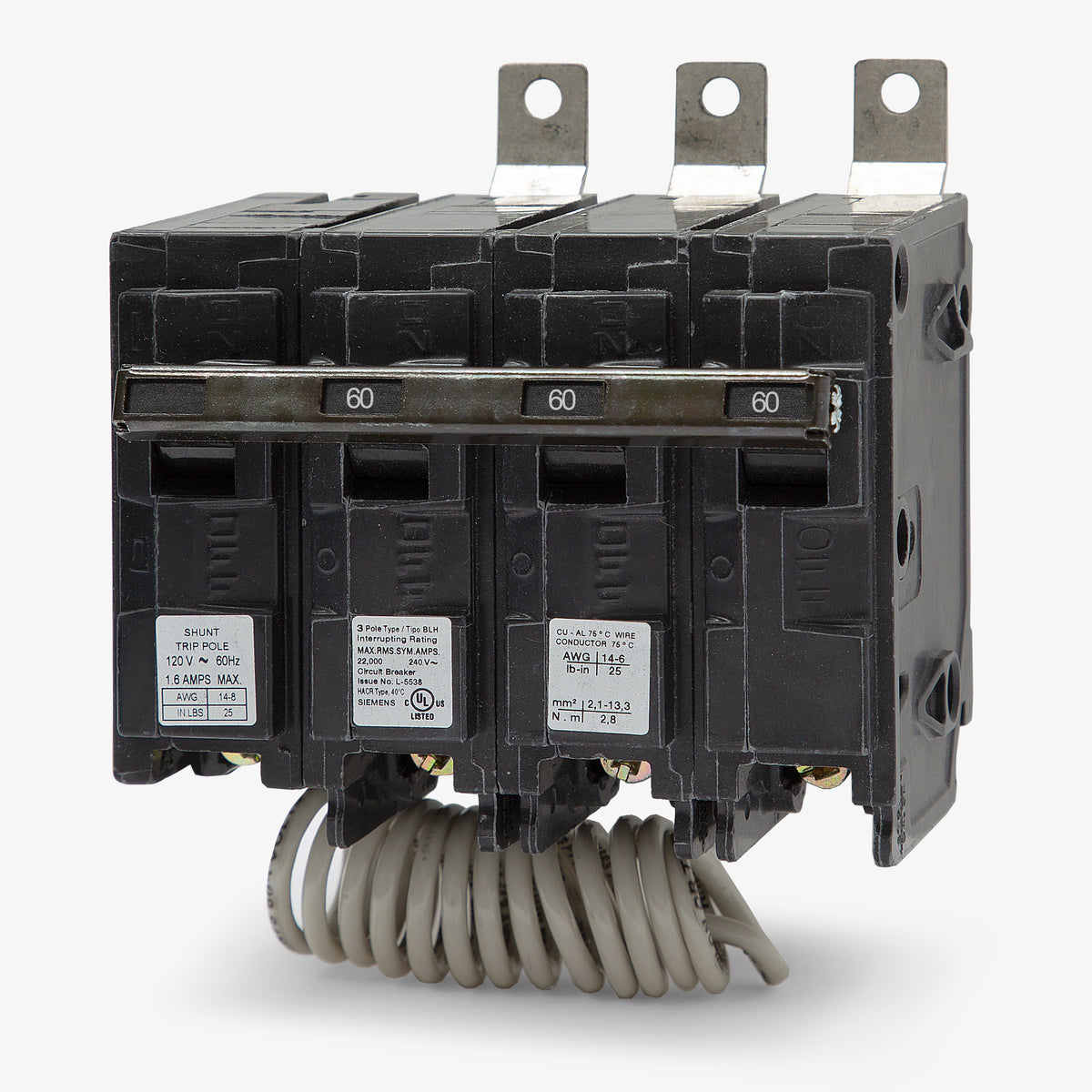

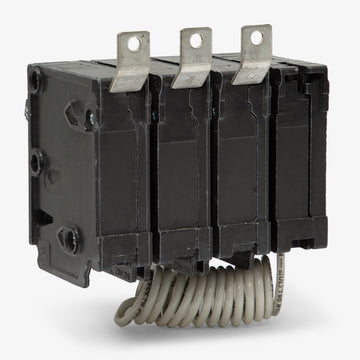

Siemens B360H00S01 Miniature Circuit Breaker
- 60A
- 3 Pole

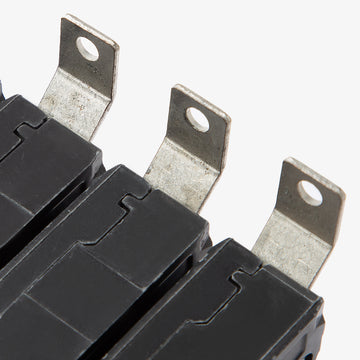

- Bolt-On
Siemens
B360H00S01
Miniature Circuit Breaker
Brand
Siemens
SKU
B360H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B360H00S01 - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens B360H00S01 delivers reliable overcurrent protection with a 60A rating. This three-pole, 240VAC component is part of the BLH family of miniature circuit breakers. It mounts into Siemens P1, P2, and P3 panelboards using a standard bolt-on configuration. The unit accepts 8-4 AWG copper or 8-2 AWG aluminum wire via load side lugs. Rated for 22kAIC, this model includes a factory-installed 120VAC shunt trip for remote tripping.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B360H00S01 |
| Series | B |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-4 AWG (Cu), 8-2 AWG (Al) |
| Max Wire | 4 AWG (Cu), 2 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the 00S01 suffix mean on the B360H00S01 catalog number?
The 00S01 suffix indicates that this breaker is equipped with a factory-installed 120VAC shunt trip. This allows the breaker to be tripped remotely via a control signal, which is commonly used for emergency stops or automated equipment shutdown systems.
Can I install the B360H00S01 in a standard residential load center?
No, the B360H00S01 is a bolt-on breaker designed specifically for commercial and industrial Siemens P1, P2, and P3 panelboards. It is not compatible with standard plug-on residential load centers.
What is the difference between the B360H00S01 and a standard B360 breaker?
The H in the B360H00S01 part number designates it as a BLH type breaker, which provides a higher interrupting rating of 22kAIC at 240VAC compared to the 10kAIC rating of a standard B360 (BL type). This specific model also includes the integrated 120VAC shunt trip.
How does the integrated shunt trip on the B360H00S01 operate during an emergency?
The 120VAC shunt trip allows the breaker to be wired to external safety devices like fire alarms or emergency stop buttons. When the external control circuit applies 120V to the shunt trip coil, it mechanically forces the breaker to trip and disconnect power to the load.
What are the conductor requirements for terminating the B360H00S01?

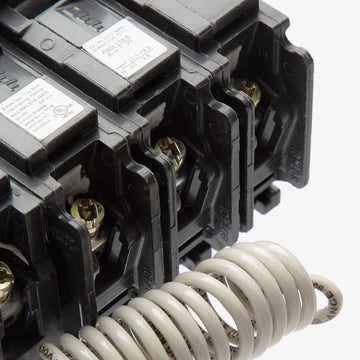

The load lugs on this breaker accept 8 to 4 AWG copper conductors or 8 to 2 AWG aluminum conductors. Always verify that the wire insulation temperature rating aligns with the breaker specifications and apply the correct torque listed on the device label during installation.
