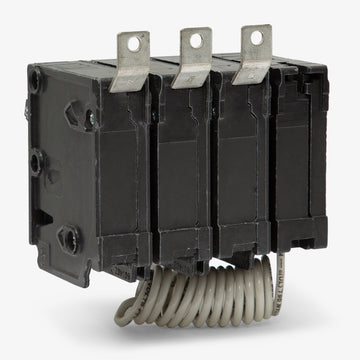

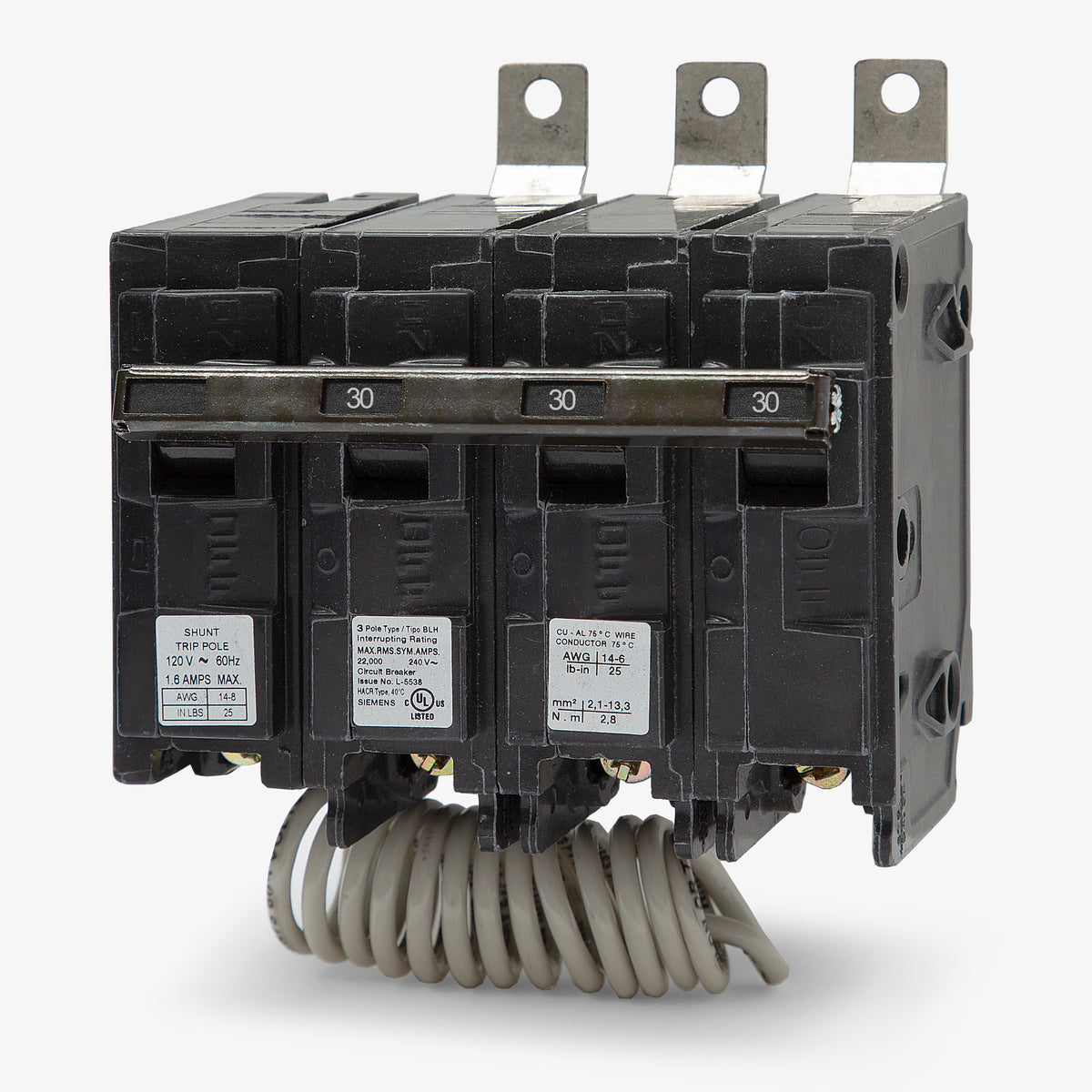

Siemens B330H00S01 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens
B330H00S01
Miniature Circuit Breaker
Brand
Siemens
SKU
B330H00S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B330H00S01 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Engineered for higher fault currents, the Siemens B330H00S01 is a 3-pole, 30A miniature circuit breaker rated at 22kAIC at 240VAC. It includes a factory-installed 120VAC shunt trip, providing remote shut-off capabilities for emergency or control systems. This BLH-type breaker installs into Siemens P1 panelboards using a standard bolt-on mounting style. The lugs accommodate 14-6 AWG copper wire. It delivers reliable thermal-magnetic protection and is fully HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B330H00S01 |
| Series | B |
| Amperage | 30A |
| Poles | 3 |

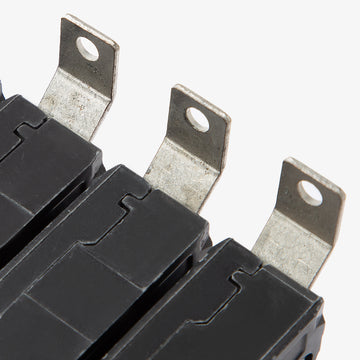

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | B |
|---|---|

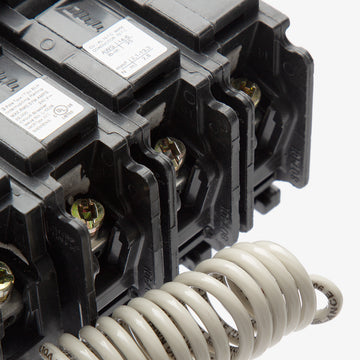

| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat does the 00S01 suffix mean on the B330H00S01 catalog number?
The 00S01 suffix designates that this breaker is equipped with a factory-installed 120VAC shunt trip. This accessory allows the breaker to be tripped remotely by applying a 120V control signal, which is commonly used for emergency stops or automated safety shutdowns.
How does the B330H00S01 differ from a standard B330 breaker?
The standard B330 is a BL-type breaker with a 10kAIC rating. The B330H00S01 is a BLH-type breaker, meaning it has a higher interrupting capacity of 22kAIC at 240VAC. It also includes the factory-installed 120VAC shunt trip.
Can the trip settings on the B330H00S01 be adjusted in the field?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit protection settings are factory calibrated and non-adjustable.
Is the B330H00S01 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified branch circuit protection.
Can I install this breaker in a standard Siemens load center?
No. The B330H00S01 is a bolt-on breaker designed specifically for Siemens P1 commercial panelboards. It will not fit in standard residential plug-on load centers that require QP or QPH type breakers.
