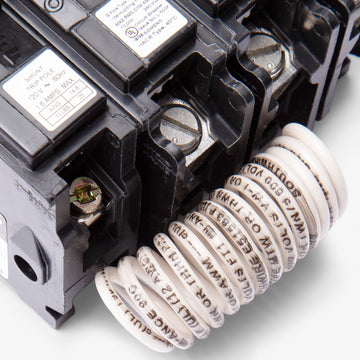

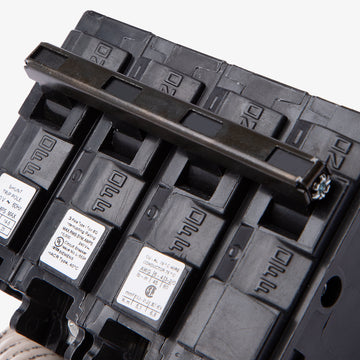

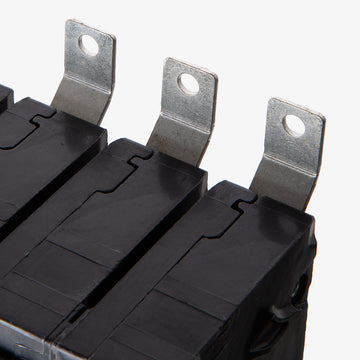

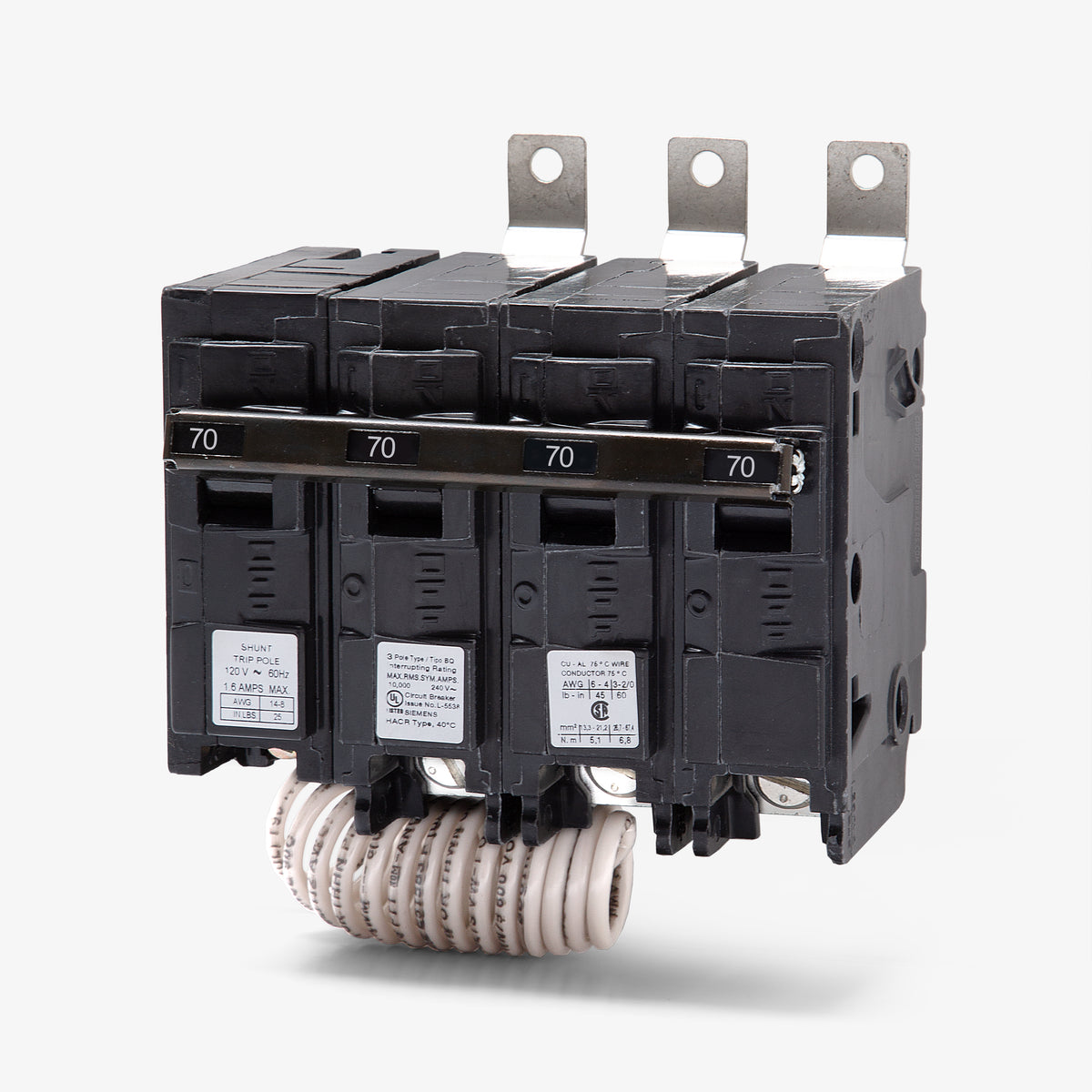

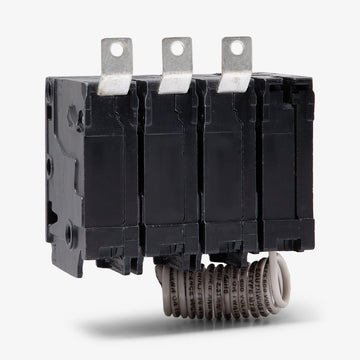

Siemens B37000S01 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Siemens
B37000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
B37000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens B37000S01 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens B37000S01 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B37000S01-R |
| Series | B |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Sold out
Quantity
Siemens B37000S01 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B37000S01-R |
| Series | B |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial applications, the Siemens B37000S01 provides 70 amps of thermal-magnetic protection across three poles. This B-frame device ensures consistent performance in 240VAC electrical distribution systems. Designed for seamless integration, it mounts into Siemens P1, P2, and P3 panelboards. The bolt-on configuration guarantees a secure connection to the busbar. A factory-integrated 120VAC shunt trip allows facility managers to open the circuit remotely.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B37000S01-R |
| Series | B |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu), 2-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG (Cu), 2 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the S01 suffix indicate on the B37000S01 part number?
The S01 suffix designates that this breaker includes a factory-installed 120VAC shunt trip. This accessory allows the circuit to be opened remotely by a control switch or automated system.
What specific frame type is the Siemens B37000S01?
While it belongs to the broader Siemens B family, this specific model is a BL frame molded case circuit breaker designed for bolt-on panelboard mounting.
What safety and testing standards does this BL frame breaker meet?
The B37000S01 is UL 489 listed and CSA C22.2 certified for use in commercial and industrial electrical distribution systems. It is also HACR rated for heating, air conditioning, and refrigeration applications.
How is the B37000S01 secured inside the panelboard?
This is a bolt-on breaker, meaning it fastens directly to the busbar of compatible Siemens P1, P2, or P3 panelboards. This provides a highly secure connection that resists vibration in commercial environments.
What type of conductors can be used with the load lugs on this 70A breaker?
The integrated lugs are dual-rated for copper and aluminum conductors. They accept 4 AWG to 1/0 AWG copper wire, or 2 AWG to 1/0 AWG aluminum wire.
