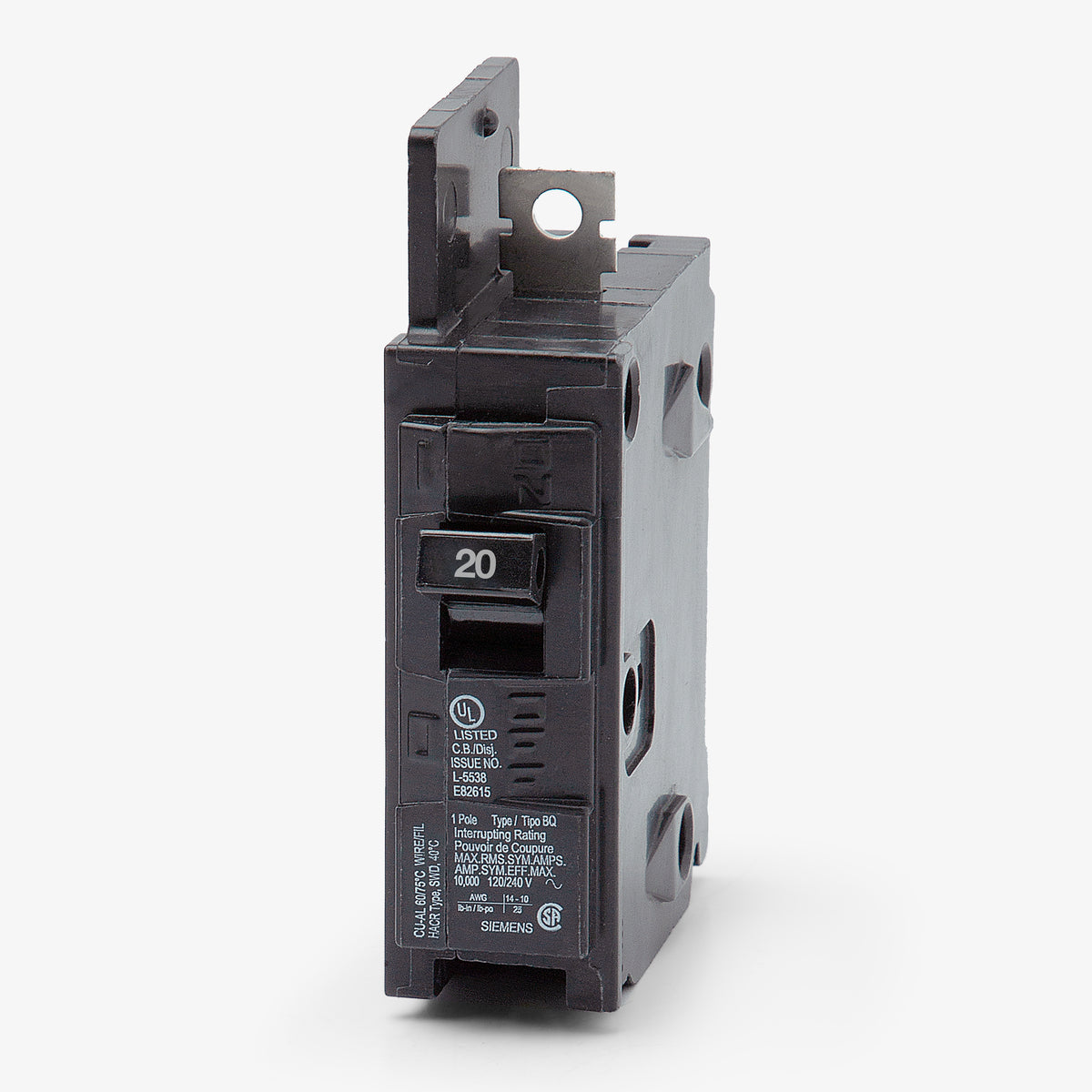

Siemens BQ1B020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Siemens
BQ1B020
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020 |
| Series | BQ |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
Quantity
Siemens BQ1B020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020-R |
| Series | BQ |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
The BQ1B020 is a 1-pole, 20A molded case circuit breaker engineered for commercial power distribution. It delivers reliable thermal-magnetic trip protection with a 10kAIC rating at 120/240VAC. This bolt-on breaker installs securely into Siemens P1, P2, and P3 panelboards. It comes equipped with load side lugs and accepts 14-6 AWG copper or 12-6 AWG aluminum wiring for flexible installation. This BQ frame breaker is SWD, HID, and HACR rated, making it suitable for lighting and HVAC loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020 |
| Series | BQ |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
Product FAQs
8 answersIs the BQ1B020 suitable for switching lighting and HVAC loads?
Yes, this breaker is SWD (Switching Duty), HID (High Intensity Discharge), and HACR (Heating, Air Conditioning, and Refrigeration) rated. This makes it approved for direct switching of 120V fluorescent lighting, HID lighting, and continuous motor loads.
Will this bolt-on breaker fit a standard Siemens residential load center?
No. The BQ1B020 is designed exclusively for commercial Siemens panelboards, such as the P1, P2, and P3 series. Standard residential load centers typically require a plug-on breaker, such as the Siemens QP line.
Can I use this Siemens breaker to replace an older ITE model?
Yes. Siemens acquired ITE and continues to manufacture the BQ series to the original specifications. This model serves as a direct, code-compliant replacement for vintage ITE breakers sharing the BQ1B020 catalog number.

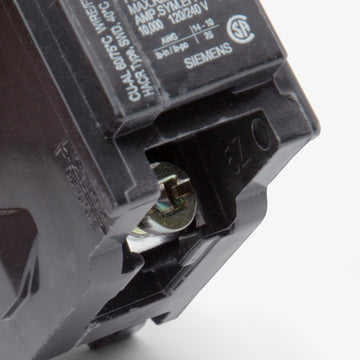

What are the temperature ratings for the wire terminals?
The load lugs on this 20-amp breaker are UL-listed for use with 60 or 75 degree Celsius rated copper or aluminum conductors.

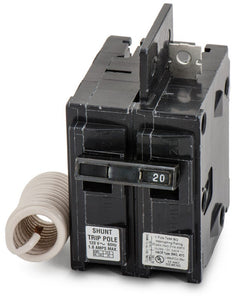

Can I add a field-installable shunt trip or auxiliary switch to this unit?
No. Internal accessories for Siemens BQ breakers, including shunt trips and auxiliary contacts, are factory-installed only. They must be ordered with the appropriate catalog number suffix and cannot be retrofitted in the field.

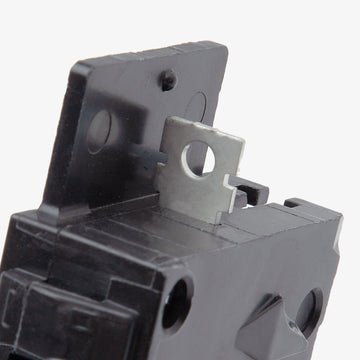

Why does this commercial breaker use a bolt-on connection rather than a plug-on?
Bolt-on connections provide a mechanically secured, rigid contact with the panelboard bus. This prevents the breaker from backing off or loosening over time due to heavy vibrations, thermal cycling, or high fault currents, ensuring a safer connection in commercial settings.
What is the physical width of the BQ1B020?
The BQ series features a standard full-size footprint, measuring exactly 1 inch wide per pole.
Does this breaker provide arc-fault (AFCI) or ground-fault (GFCI) protection?
No, the BQ1B020 is a standard thermal-magnetic breaker providing only overload and short-circuit protection. It does not include integral AFCI, GFCI, or dual-function circuitry.
