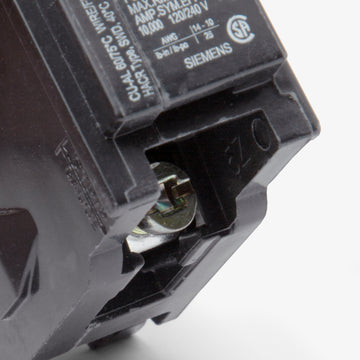

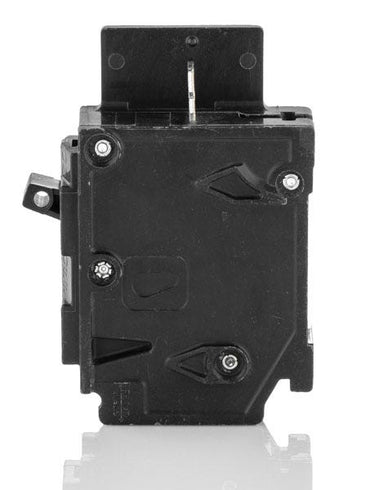

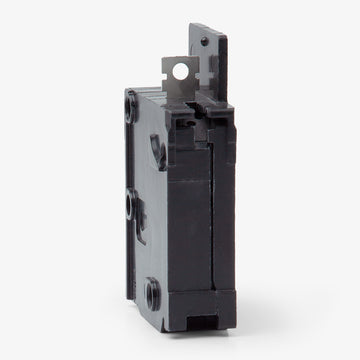

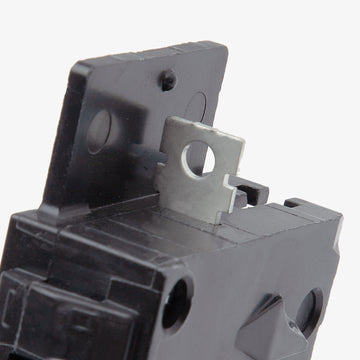

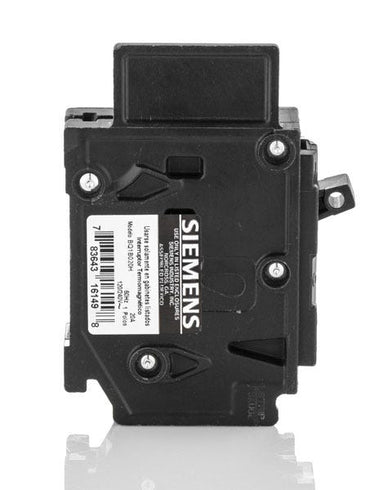

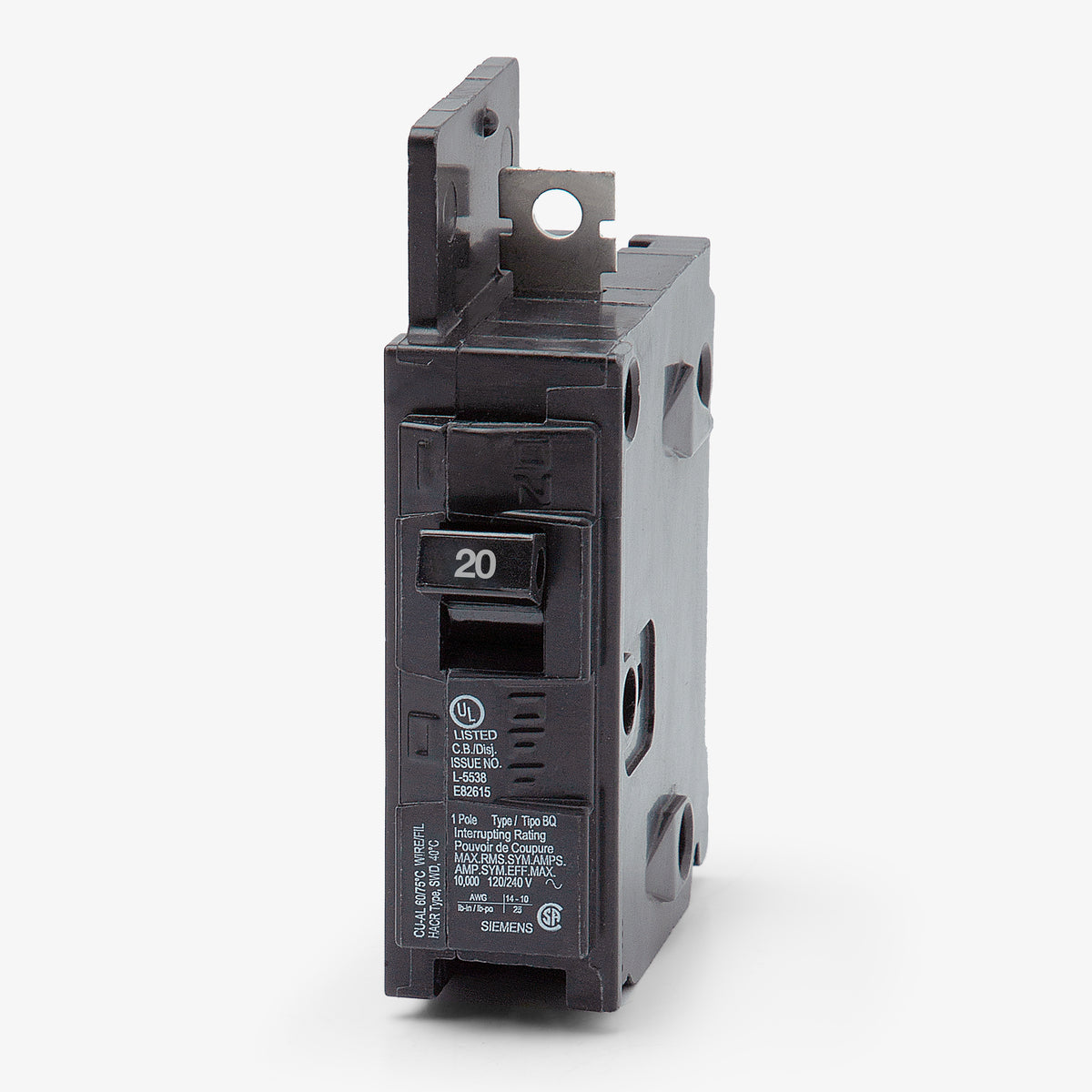

Siemens BQ1B020H Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Siemens
BQ1B020H
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B020H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B020H - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B020H - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020H |
| Series | BQH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG (Cu), 6 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Siemens BQ1B020H - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020H-R |
| Series | BQH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG (Cu), 6 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
40A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Delivering high interrupting capacity for commercial environments, the BQH series 20-amp device provides robust thermal-magnetic protection. It fastens securely into Siemens P1, P2, P3, P4, and P5 panelboards to serve demanding electrical distribution systems. Featuring a 22kAIC rating at 120/240VAC, this unit is HACR and SWD rated for switching fluorescent lighting loads. The bolt-on design ensures a stable connection for continuous industrial operations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B020H |
| Series | BQH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG (Cu), 6 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhich Siemens panelboards accept the BQ1B020H bolt-on breaker?
The BQ1B020H is compatible with Siemens P1, P2, P3, P4, and P5 commercial panelboards. It features a bolt-on connection that fastens directly to the panel bus for a secure installation in heavy-duty environments.
What is the difference between the Siemens BQ1B020 and BQ1B020H?
The H in the BQ1B020H catalog number indicates a higher interrupting capacity. The BQ1B020H is rated at 22kAIC, while the standard BQ1B020 is rated at 10kAIC. Both share the same physical footprint and bolt-on mounting.
Is the BQ1B020H rated for switching lighting loads?
Yes, this 20-amp breaker is SWD (Switching Duty) rated, which means it is approved for switching 120V fluorescent lighting loads on a regular basis. It is also HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does the BQ1B020H come with load side lugs?
Yes, the breaker includes factory-installed load side lugs that accept 14 to 6 AWG copper wire or 12 to 6 AWG aluminum wire. Line side connections are made via the bolt-on mounting directly to the panelboard bus.
Is the BQ1B020H suitable for 277V commercial lighting circuits?
No. While it is a commercial bolt-on breaker, the BQ1B020H is strictly rated for 120VAC maximum. For 277V lighting circuits, a different breaker family such as the Siemens BQD series is required.
Will the Siemens BQ1B020H replace an older ITE BQ1B020H?
Yes. Siemens acquired the ITE electrical line and continues to manufacture the BQ and BQH series to the original specifications. A modern Siemens BQ1B020H is a direct, code-compliant replacement for an ITE breaker with the exact same catalog number.
