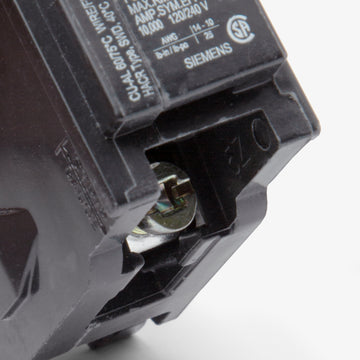

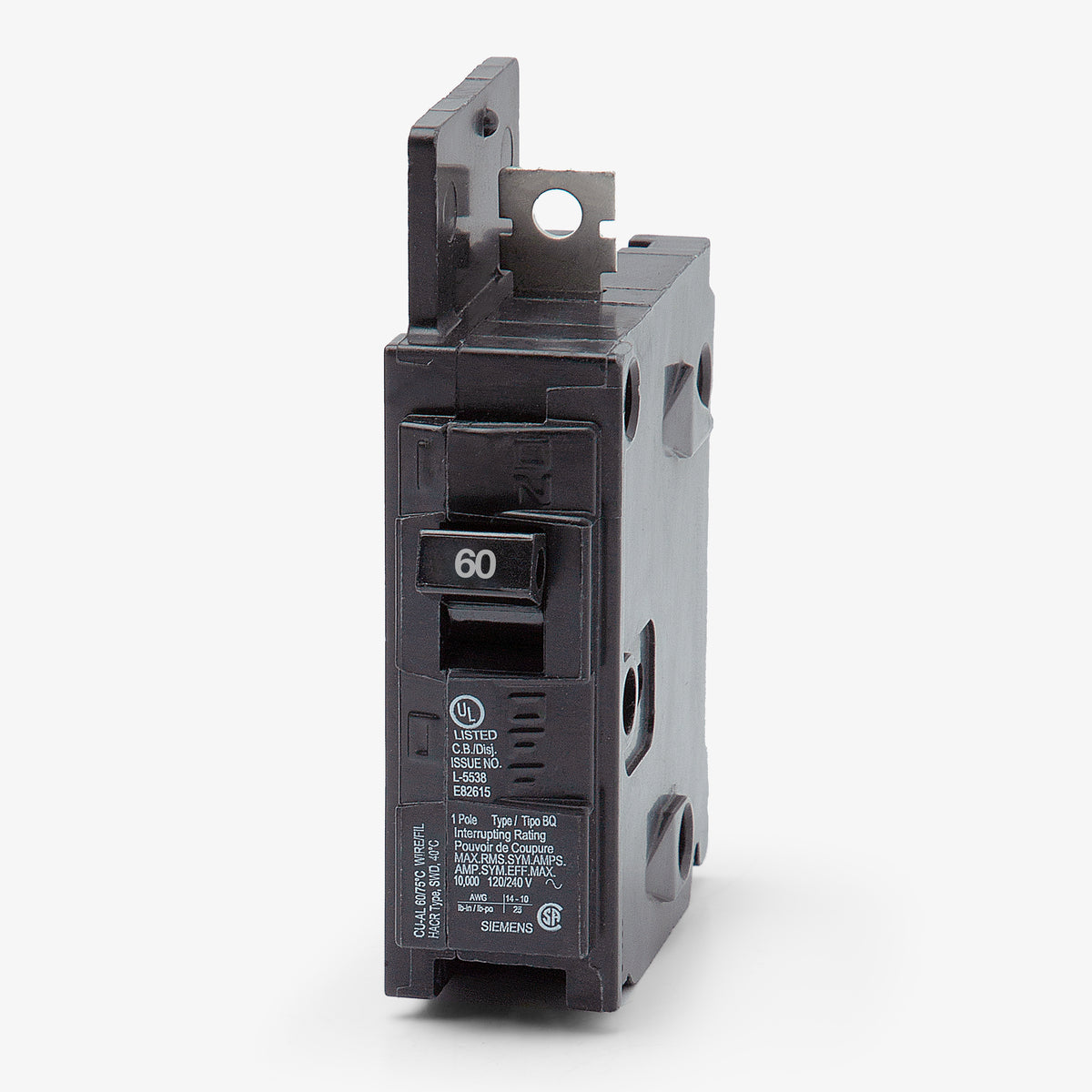

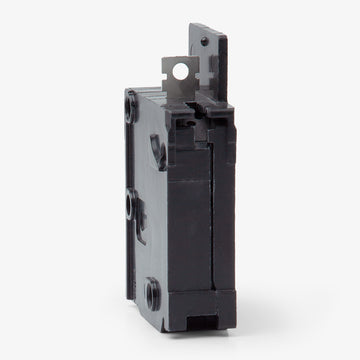

Siemens BQ1B060H Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Siemens
BQ1B060H
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B060H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B060H - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Mounts into Siemens P1, P2, P3, P4, and P5 panelboards to deliver robust commercial and industrial circuit protection. The Siemens BQ1B060H is a 1-pole, 60A bolt-on MCCB featuring a high interrupting rating of 22kAIC at 120/240VAC. Equipped with fixed thermal-magnetic trip technology, it accurately handles overloads and short circuits. This HACR-rated unit includes load side lugs and provides a reliable upgrade over standard 10kA breakers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B060H |
| Series | BQH |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhich panelboards are compatible with the Siemens BQ1B060H circuit breaker?
This bolt-on breaker is specifically designed for use in Siemens P1, P2, P3, P4, and P5 panelboards. It is not compatible with standard plug-on load centers, which typically require QP or QT series breakers.
What is the difference between the Siemens BQ1B060 and the BQ1B060H?
The H in the BQ1B060H catalog number designates a higher interrupting rating. The BQ1B060H is rated at 22kAIC at 120VAC, whereas the standard BQ1B060 is rated at 10kAIC.
How does the BQ1B060H connect to the panelboard bus?

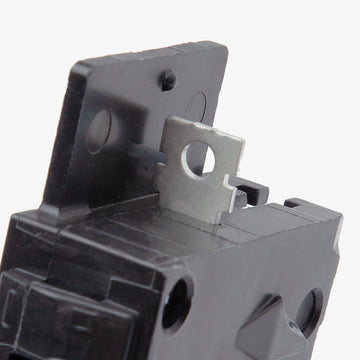

The BQ1B060H features a bolt-on connection type, meaning it physically bolts directly to the panelboard bus bars for a secure, vibration-resistant installation. This is required for Siemens P-series panelboards, unlike the plug-on connections used in residential load centers.
Can I install the BQ1B060H in a GE or Square D panelboard?
No. Siemens circuit breakers are engineered and UL listed exclusively for Siemens panels. Installing this breaker in a GE, Square D, or other third-party panelboard can lead to electrical hazards and will void the safety listings.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit includes both Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function provides immediate tripping during severe short circuits.
