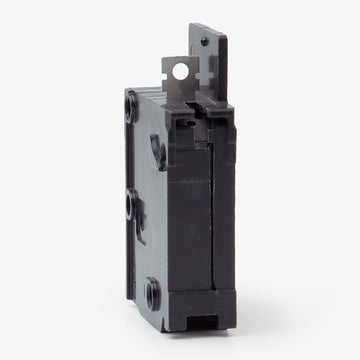

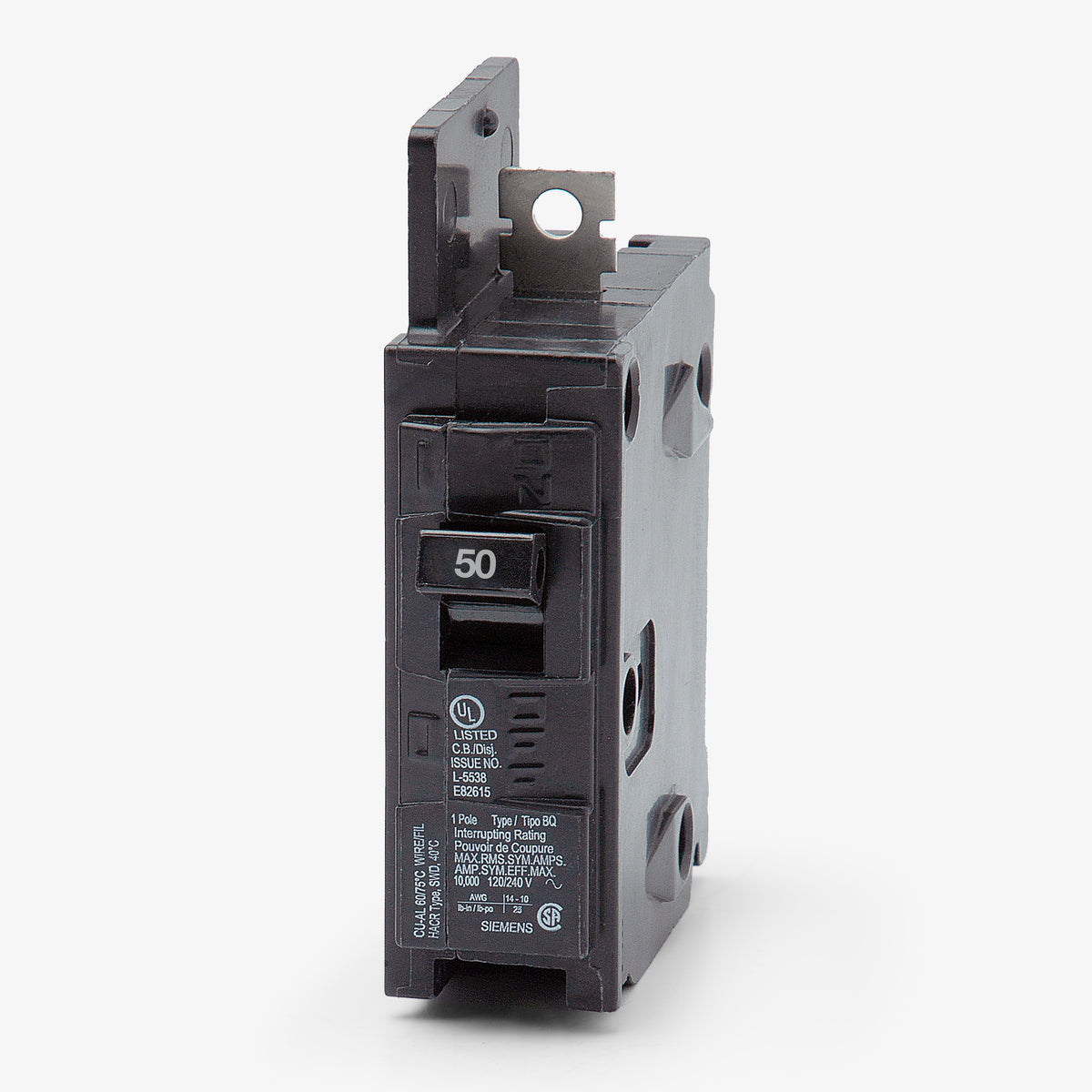

Siemens BQ1B050H Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Siemens
BQ1B050H
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B050H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B050H - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B050H - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B050H |
| Series | BQH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Sold out
Quantity
Siemens BQ1B050H - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B050H-R |
| Series | BQH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
40A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Designed to safeguard commercial electrical systems, the Siemens BQ1B050H is a 1-pole, 50A molded case circuit breaker. It utilizes proven thermal-magnetic trip technology to protect against overloads and short circuits. This BQH series component features a sturdy bolt-on mounting style for secure installation in Siemens P1 through P5 panelboards. The load lugs accept 8-1 AWG copper or 6-1/0 AWG aluminum wire. With a high 22kAIC rating at 120/240VAC, it is fully HACR and HID rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B050H |
| Series | BQH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3, P4, P5) |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards accept the BQ1B050H?
It is designed for use in Siemens P1, P2, P3, P4, and P5 commercial panelboards.
What is the difference between the BQ1B050 and the BQ1B050H?
The standard BQ1B050 has an interrupting rating of 10kAIC. The BQ1B050H is the high-interrupting version, rated for 22kAIC at 120VAC, making it suitable for systems with higher available fault currents.
Does this breaker replace older I-T-E or Gould BQ breakers?
Yes. Siemens acquired the electrical divisions of I-T-E and Gould. The BQ1B050H is the direct, UL-listed replacement for older I-T-E and Gould 50A, 1-pole BQ-frame bolt-on breakers.
Can the BQ1B050H be used for 240V equipment?
No. As a 1-pole breaker, it only provides 120V to ground. You must use a 2-pole BQ or BQH breaker for 240V loads.
Are load lugs included with the BQ1B050H?

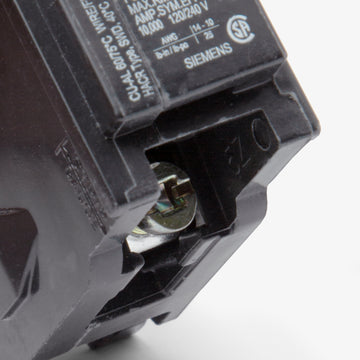

Yes, it comes with factory-installed mechanical lugs. They accept 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
How does the BQ1B050H mount to the panelboard?

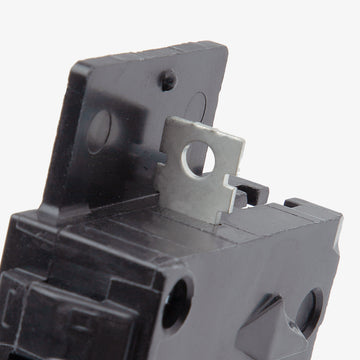

It is a bolt-on breaker that secures directly to the panelboard bus with a bolt. This creates a highly secure, vibration-resistant connection required for commercial and industrial P-series panels.
What type of trip mechanism does the BQ1B050H use?
It uses a fixed thermal-magnetic trip mechanism. The thermal element provides delayed protection against overloads, while the magnetic element provides instantaneous protection against short circuits.
