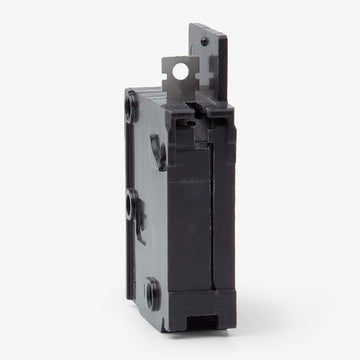

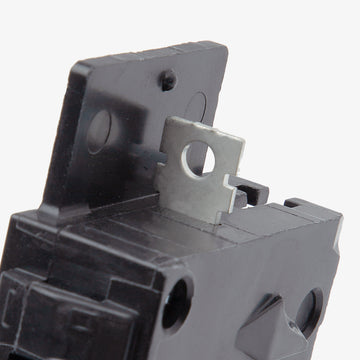

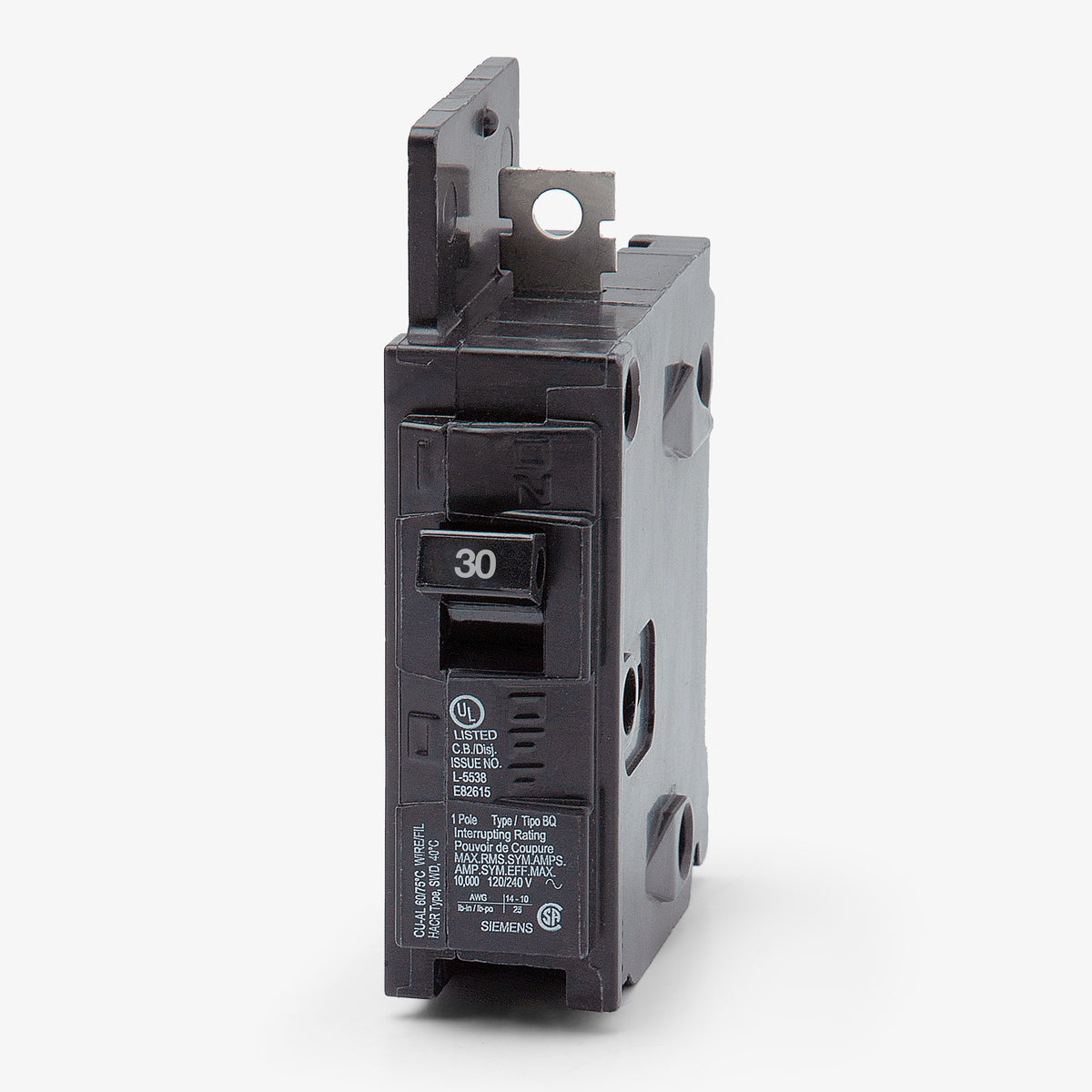

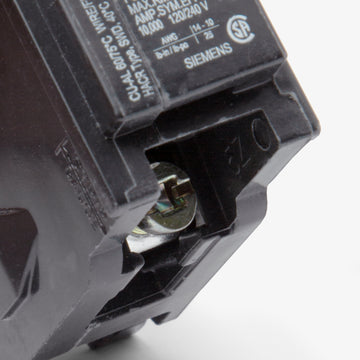

Siemens BQ1B030H Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
BQ1B030H
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B030H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B030H - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B030H - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B030H |
| Series | BQ |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ1B030H - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B030H-R |
| Series | BQ |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Similar Items
45A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Delivering reliable 22kAIC high-interrupting capacity at 120/240VAC, this single-pole Siemens BQ series component serves demanding commercial and industrial environments. The bolt-on design ensures a secure connection within compatible electrical distribution systems. It installs seamlessly into Siemens P1, P2, and P3 panelboards, offering robust long-time and instantaneous trip functions. Standard HACR rating makes it suitable for heating, air conditioning, and refrigeration equipment circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B030H |
| Series | BQ |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhat is the difference between the Siemens BQ1B030 and the BQ1B030H?
The H designation indicates a higher interrupting rating. While the standard BQ1B030 is rated for 10kAIC at 120V, the BQ1B030H is rated for 22kAIC at 120V, making it suitable for commercial systems with higher available fault currents.
Can the BQ1B030H be used to replace older ITE or Gould circuit breakers?
Yes, Siemens acquired ITE and Gould, and the current Siemens BQ frame breakers are direct, exact-fit replacements for legacy ITE and Gould BQ bolt-on circuit breakers.
Is the Siemens BQ1B030H suitable for reverse feed applications?
Yes, standard Siemens BQ thermal magnetic circuit breakers are not marked with Line and Load designations, meaning they are UL listed for reverse feed or backfeed applications.
Which panelboards are compatible with the BQ1B030H circuit breaker?
This bolt-on breaker is designed specifically for installation in Siemens P1, P2, and P3 series panelboards. It is not compatible with standard plug-on residential load centers.
Is this circuit breaker HACR rated for HVAC equipment?
Yes, Siemens BQ frame molded case circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific protection profile.
