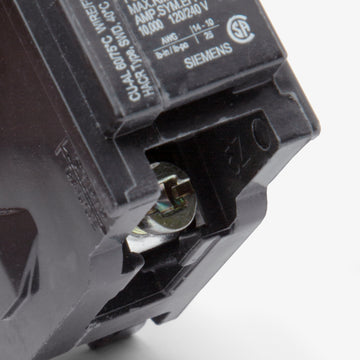

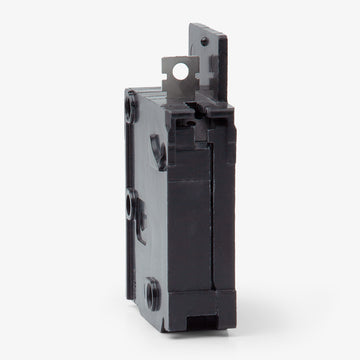

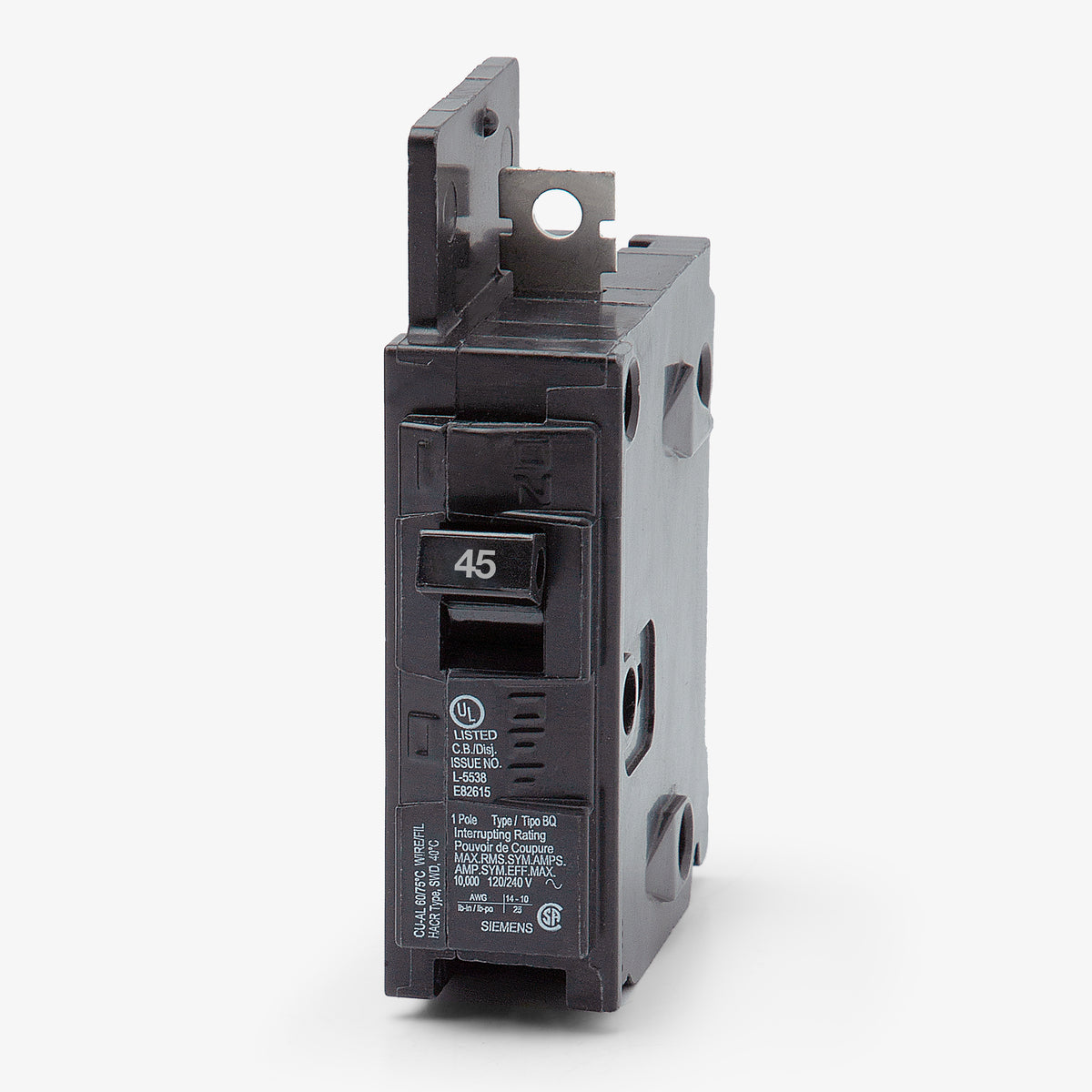

Siemens BQ1B045 Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
Siemens
BQ1B045
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B045 - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens BQ1B045 is a 45A, 1-pole molded case circuit breaker. It delivers standard thermal-magnetic trip functionality to protect branch circuits against overloads and short circuits. Designed with a bolt-on mounting style, this unit installs into Siemens P1, P2, and P3 panelboards. Rated for 10kAIC at 120VAC, this BQ series breaker is both HACR and HID lighting rated, making it versatile for specialized commercial loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B045 |
| Series | BQ |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the BQ1B045 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards.
Is there a plug-in equivalent for the BQ1B045?
Yes, the Siemens Q145 is the plug-in equivalent for this 45A breaker, designed for use in standard Q or QP series load centers.
Does the BQ1B045 carry a HACR rating?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Is this 45A breaker rated for high-intensity discharge (HID) lighting?
Yes, the BQ1B045 is HID rated, allowing it to safely switch high-intensity discharge lighting loads.
What wire sizes and materials are accepted by the lugs on the BQ1B045?
The factory-installed lugs accommodate 8 to 1 AWG copper conductors or 6 to 1/0 AWG aluminum conductors.

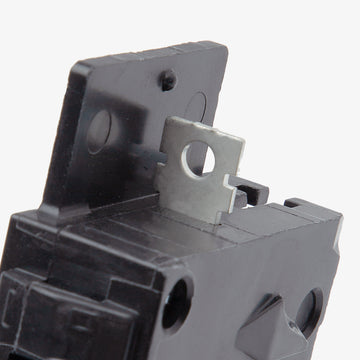

How does the BQ1B045 mount into the panelboard?
This is a bolt-on circuit breaker that secures directly to the panelboard bus using a bolted connection, providing a secure contact for commercial applications.
Are the trip settings on the BQ1B045 adjustable?
No, this thermal magnetic breaker features fixed long-time and instantaneous trip functions.
