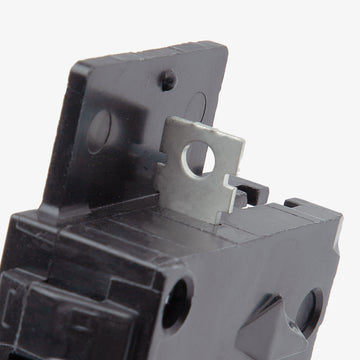

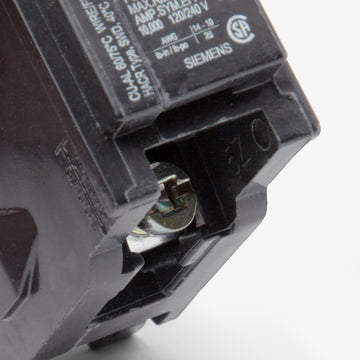

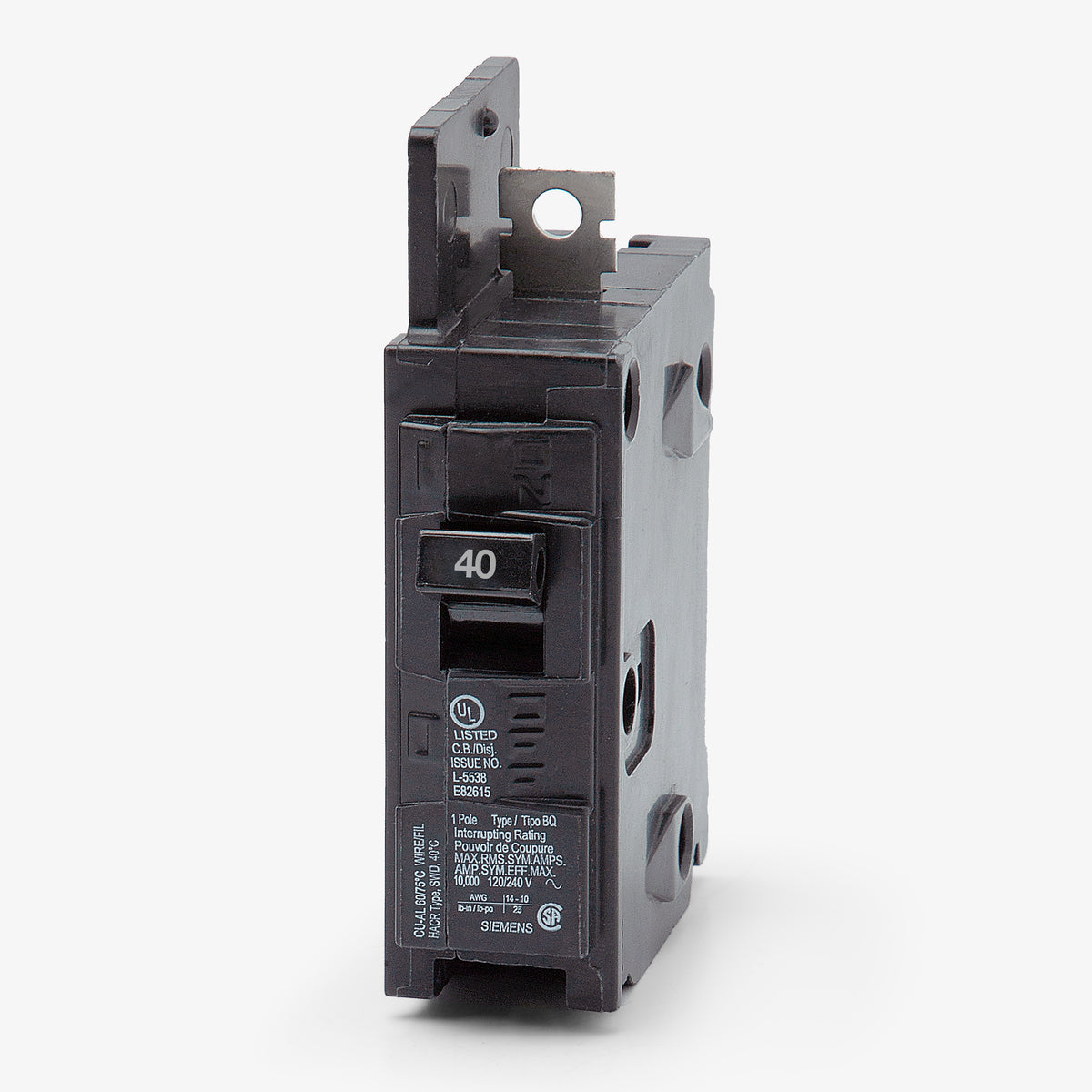

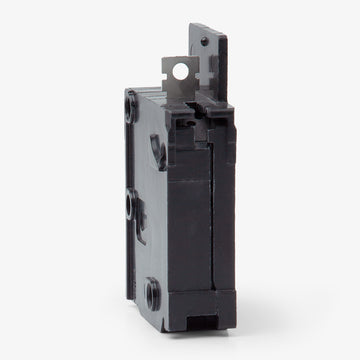

Siemens BQ1B040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Siemens
BQ1B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B040 |
| Series | BQ |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Sold out
Quantity
Siemens BQ1B040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B040-R |
| Series | BQ |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Built for reliable power distribution, the Siemens BQ1B040 is a 1-pole, 40A molded case circuit breaker. It provides essential overcurrent protection for commercial branch circuits. Designed for Siemens infrastructure, this unit mounts into P1, P2, and P3 panelboards. The bolt-on connection offers superior mechanical stability compared to plug-on alternatives in heavy-use environments. With a 10kAIC rating at 120VAC, this breaker meets UL 489 standards. It is HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B040 |
| Series | BQ |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3) |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated |
Product FAQs
6 answersWhich panelboards accept the Siemens BQ1B040 circuit breaker?
This breaker is specifically designed for bolt-on installation in Siemens P1, P2, and P3 commercial panelboards.
Can I install the BQ1B040 in a standard Siemens residential load center?
No. The BQ1B040 is a bolt-on breaker built for commercial panelboards. Standard Siemens residential load centers require plug-on breakers, such as the QP series.
Is the BQ1B040 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
What wire gauges and materials can be used with the lugs on this breaker?
The integrated load-side lugs are dual-rated for both copper and aluminum conductors. They accept 14-6 AWG copper wire or 12-6 AWG aluminum wire.
What is the difference between the BQ1B040 and the BQH or HBQ versions?
The BQ1B040 is the standard version with a 10kAIC interrupting rating. The BQH series offers a higher 22kAIC rating, and the HBQ series provides a 65kAIC rating. All three share the same physical dimensions and panelboard compatibility.
Does the BQ1B040 feature an adjustable trip setting?
No, this breaker utilizes a fixed thermal-magnetic trip unit. It provides long-time protection for overloads and instantaneous protection for short circuits, but the trip thresholds cannot be adjusted in the field.
