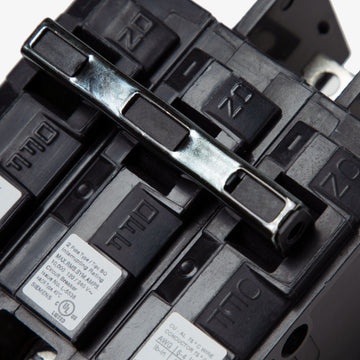

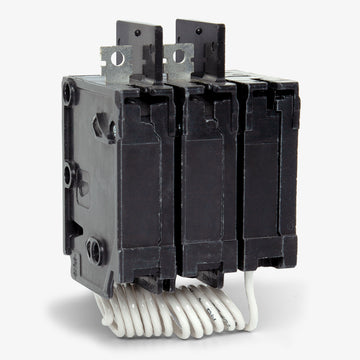

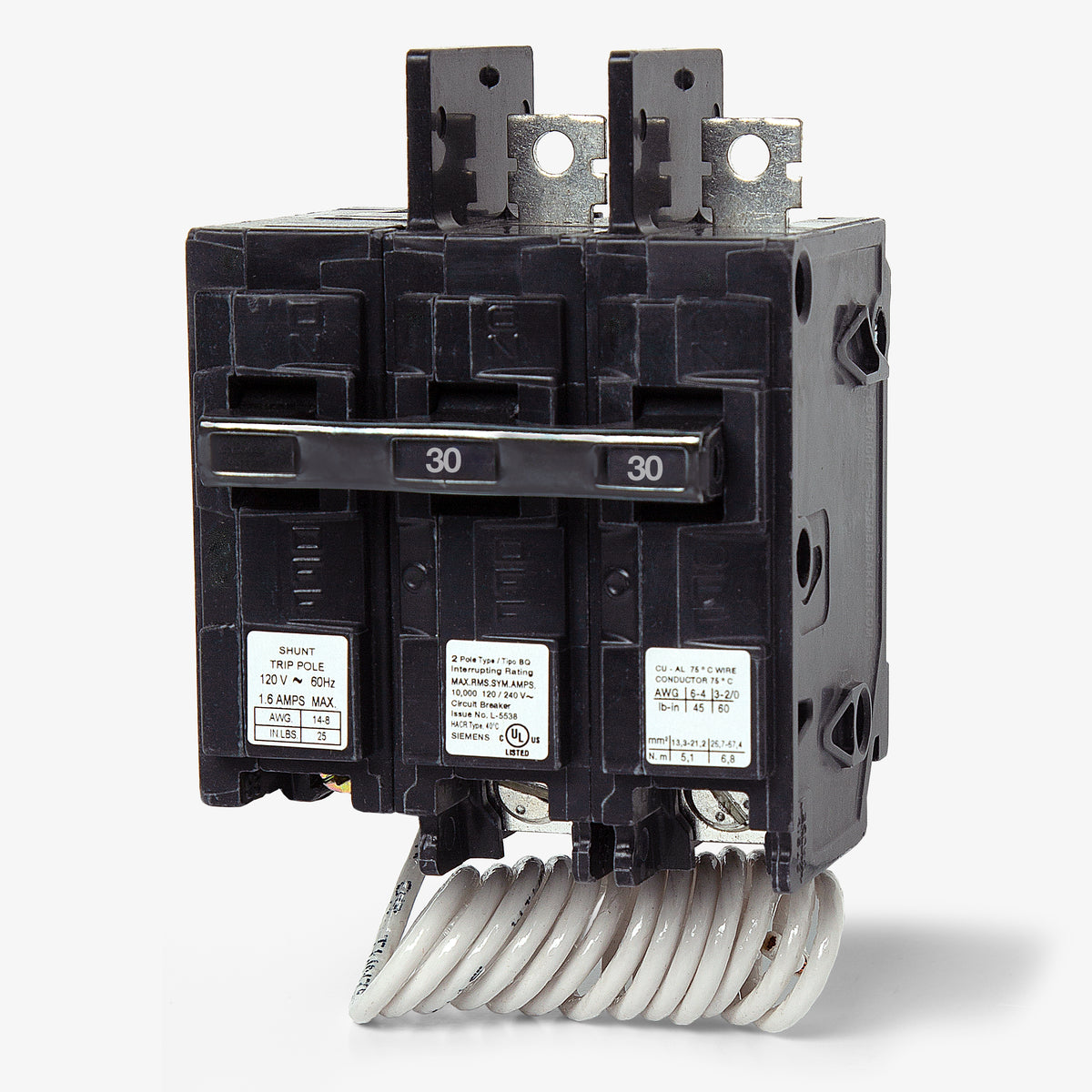

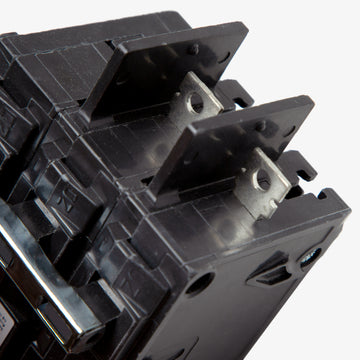

Siemens BQ2B03000S01 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Siemens
BQ2B03000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ2B03000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ2B03000S01 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Integrating remote disconnect capabilities, this 30-amp molded case circuit breaker features a factory-installed 120VAC shunt trip mechanism. It delivers reliable thermal-magnetic protection for commercial power distribution networks. The bolt-on design fastens securely into Siemens P1, P2, and P3 panelboards to ensure a stable connection. It serves as a highly capable solution for facilities requiring emergency circuit interruption.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ2B03000S01 |
| Series | BQ |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC, Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the Siemens BQ2B03000S01 circuit breaker?
This BQ frame breaker is designed for bolt-on installation in Siemens P1, P2, and P3 commercial panelboards. It is not compatible with standard residential load centers.
What does the 00S01 suffix indicate on this catalog number?
The 00S01 suffix signifies that the breaker includes a factory-installed 120VAC shunt trip. This internal mechanism allows the breaker to be tripped remotely for emergency disconnect or control applications.
Can the shunt trip on the BQ2B03000S01 be field-installed or replaced?
No, the 120VAC shunt trip is a factory-installed internal accessory. It cannot be removed, modified, or added in the field to a standard BQ breaker.
Is this breaker interchangeable with Siemens Type QP plug-on breakers?
No, the BQ2B03000S01 features a bolt-on connection for commercial panelboards. It cannot be used in residential load centers that require Type QP plug-on breakers.
How does the BQ2B03000S01 differ from BQH or HBQ series breakers?
The standard BQ series provides a 10kAIC interrupting rating. The BQH series offers 22kAIC, and the HBQ series provides 65kAIC. Always verify the available fault current of your system before installation to ensure the correct breaker is selected.
Does this breaker come with load side lugs?
Yes, the BQ2B03000S01 includes factory-installed load side lugs. The line side connects directly to the panelboard bus via the bolt-on mounting bracket.
