Siemens BQ2B080H - 80A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ2B080H
5.0
Rated 5.0 out of 5 stars
1 Review
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens BQ2B080H - 80A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ2B080H
5.0
Rated 5.0 out of 5 stars
1 Review
Select Item Condition
Earn 142 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens BQ2B080H - 80A 2 Pole Molded Case Circuit Breaker

New

$142.87 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

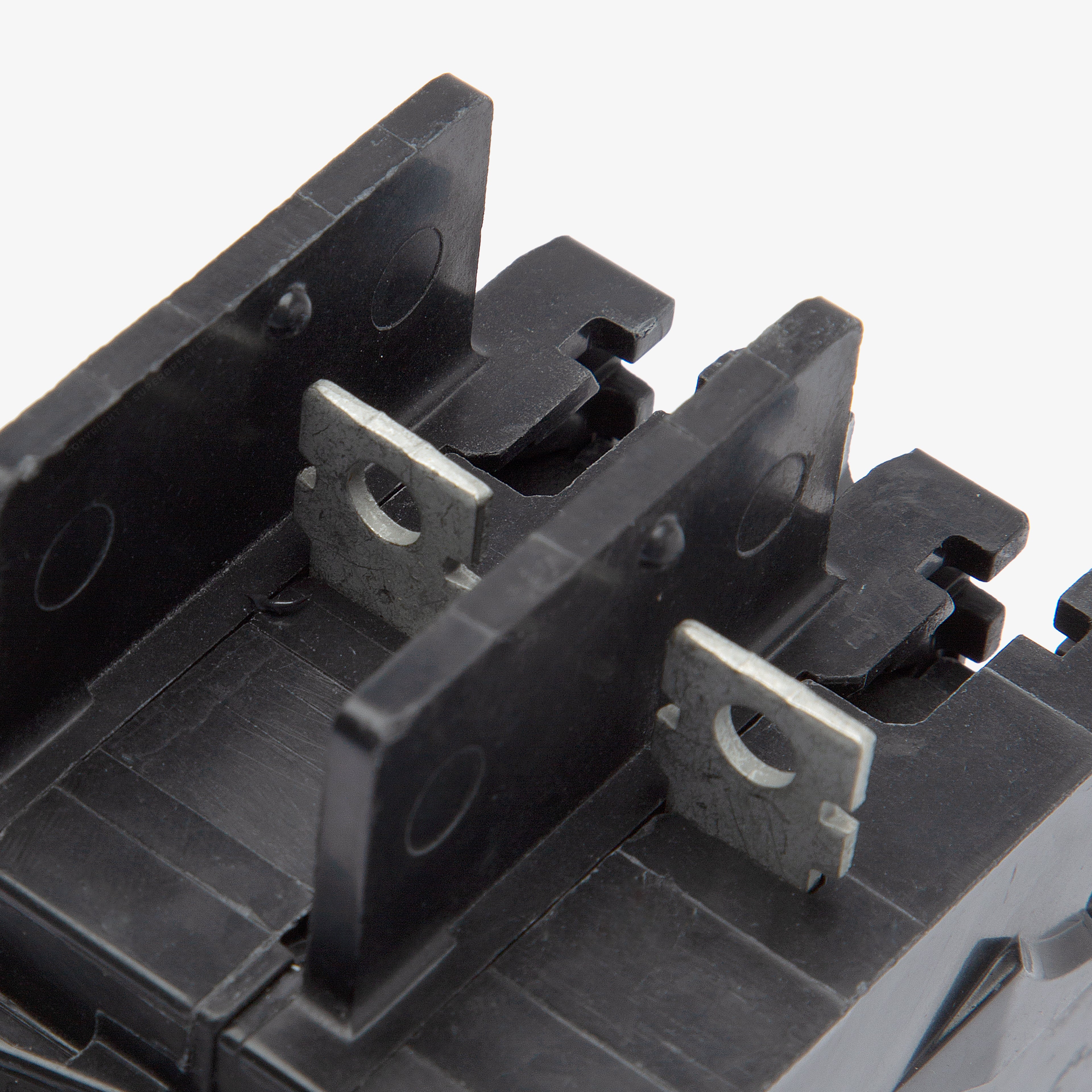

Rated for 22kAIC at 120/240V, the Siemens BQ2B080H provides reliable thermal-magnetic protection for commercial and industrial applications. This two-pole, 80-amp breaker features a non-interchangeable trip and common trip functionality. It mounts into Siemens modular meter centers and serves as an exact replacement for legacy ITE panelboards. Built with load side lugs and an HACR rating, this high-interrupting capacity MCCB ensures code-compliant overcurrent defense.

Specifications

Brand Siemens
Series BQH
Part Number BQ2B080H
Amperage 80A
Voltage 120/240VAC
Poles 2
Phase 1
AIC Rating 22kA @ 120/240VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens Modular Meter Centers, Legacy ITE Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 8-1 AWG (Cu), 6-1/0 AWG (Al)
Max Wire 1 AWG (Cu), 1/0 AWG (Al)
Min Wire 8 AWG (Cu), 6 AWG (Al)
Available Options Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
Construction Features HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity
