Siemens BQ3B05000S01 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Siemens
BQ3B05000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B05000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

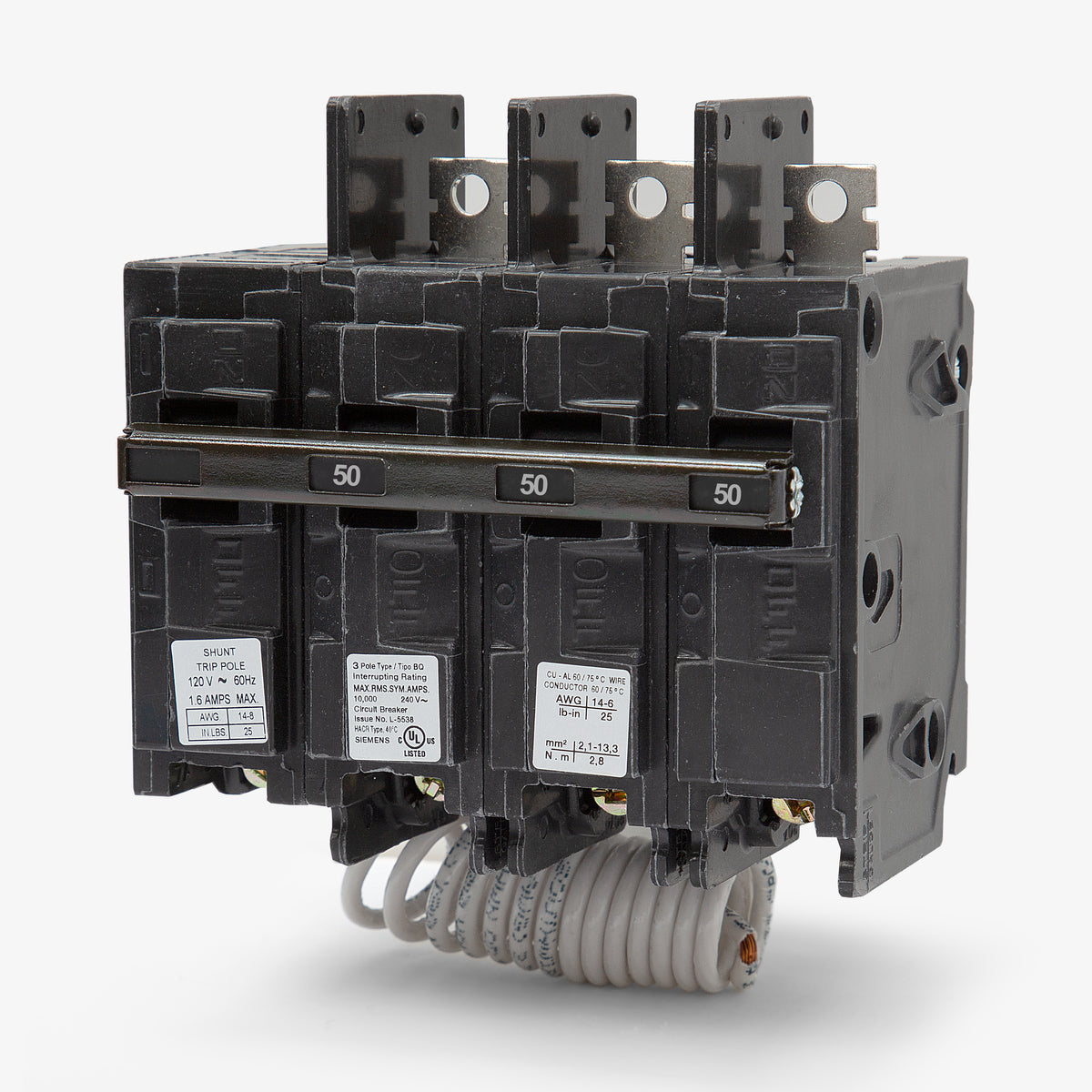

Siemens BQ3B05000S01 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial power distribution, this 50-amp Siemens BQ frame breaker provides reliable thermal-magnetic protection. It features a factory-installed 120VAC shunt trip mechanism, allowing facility managers to remotely open the circuit for emergency shutdowns or automated control systems. The bolt-on design installs securely into Siemens P1, P2, and P3 panelboards. Rated for 10kAIC at 240VAC, it delivers standard interrupting capacity for commercial branch circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ3B05000S01 |
| Series | BQ |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs, Shunt Trip 120VAC |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat does the 00S01 suffix indicate on the BQ3B05000S01 breaker?
The 00S01 suffix signifies that this breaker includes a factory-installed 120V AC shunt trip mechanism. This feature allows facility managers or automated systems to remotely open the circuit.
Which panelboards are compatible with the BQ3B05000S01?
This BQ frame breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards.
Can this breaker replace an older ITE BQ3B05000S01?
Yes, Siemens acquired ITE, making this current Siemens model the direct replacement for the legacy ITE BQ3B05000S01.
What are the acceptable wire sizes for the BQ3B05000S01 terminals?
The load side lugs accept 8 to 1 AWG copper wire or 6 to 1/0 AWG aluminum wire.
How does the LI trip function operate on this 50A breaker?
The thermal-magnetic trip unit provides Long-Time (L) protection against sustained overcurrents and Instantaneous (I) protection to rapidly clear short circuits.
Are the trip settings adjustable on the BQ3B05000S01?
No, this breaker features fixed thermal and fixed magnetic trip settings.
