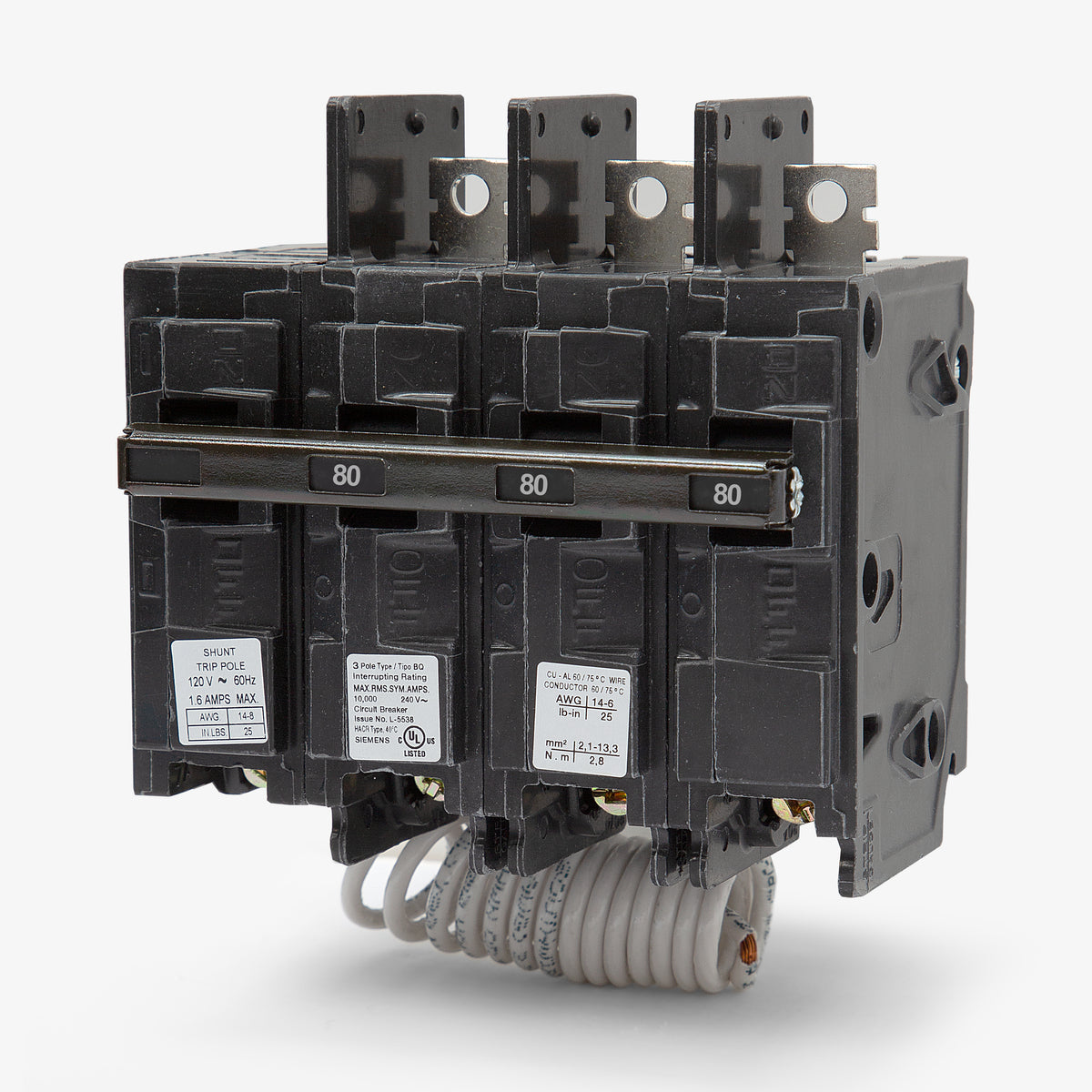

Siemens BQ3B08000S01 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
BQ3B08000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ3B08000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ3B08000S01 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description

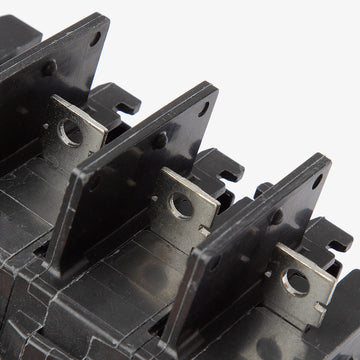

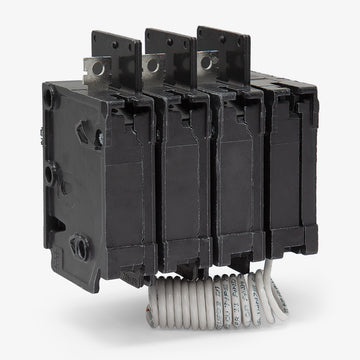

Rated for 10kAIC at 240VAC, this Siemens BQ3B08000S01 molded case circuit breaker combines standard thermal-magnetic protection with advanced control features. The integrated 120VAC shunt trip mechanism enables remote tripping, making it ideal for emergency stops or automated safety systems in commercial facilities. This 3-pole, 80-amp breaker utilizes a secure bolt-on mounting design for compatibility with Siemens P1, P2, and P3 panelboards. It is fully HACR rated for motor loads.Specifications
| Brand | Siemens |
|---|---|
| Series | BQ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip 120VAC, Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich Siemens panelboards accept the BQ3B08000S01 circuit breaker?
This BQ frame breaker is designed for installation in Siemens P1, P2, and P3 series panelboards.
What does the 00S01 suffix indicate on the BQ3B08000S01 catalog number?

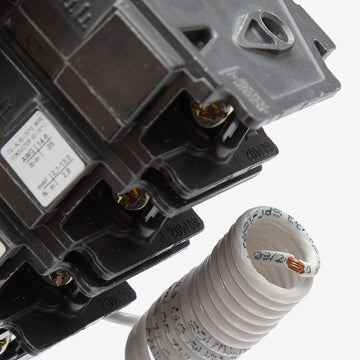

The 00S01 suffix designates that this circuit breaker is factory-equipped with a 120V AC shunt trip accessory for remote tripping capabilities.
What is the function of the 120V shunt trip on this breaker?
The integrated 120V AC shunt trip allows the breaker to be opened remotely when a voltage signal is applied to the accessory leads. This is frequently required for emergency stop circuits, elevator recalls, or automated equipment shutdowns.
How does the thermal-magnetic trip unit operate on the BQ3B08000S01?
The fixed LI (Long-Time, Instantaneous) trip unit uses a bimetallic element to provide delayed tripping for sustained overloads, combined with an electromagnet that trips the breaker instantly during high-fault short circuits.
Can the Siemens BQ3B08000S01 replace an older ITE version of the same part number?
Yes. Siemens acquired the ITE brand, and the current Siemens BQ3B08000S01 is the direct replacement for the legacy ITE BQ3B08000S01.
Can the BQ3B08000S01 be installed in a 480V panelboard?
No. This breaker has a maximum voltage rating of 240V AC with a 10kAIC interrupting rating. It is not rated for use on 277V or 480V systems.
