Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ3B100
4.9
Rated 4.9 out of 5 stars
66 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU BQ3B100
4.9
Rated 4.9 out of 5 stars
66 Reviews
Select Item Condition
Earn 161 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

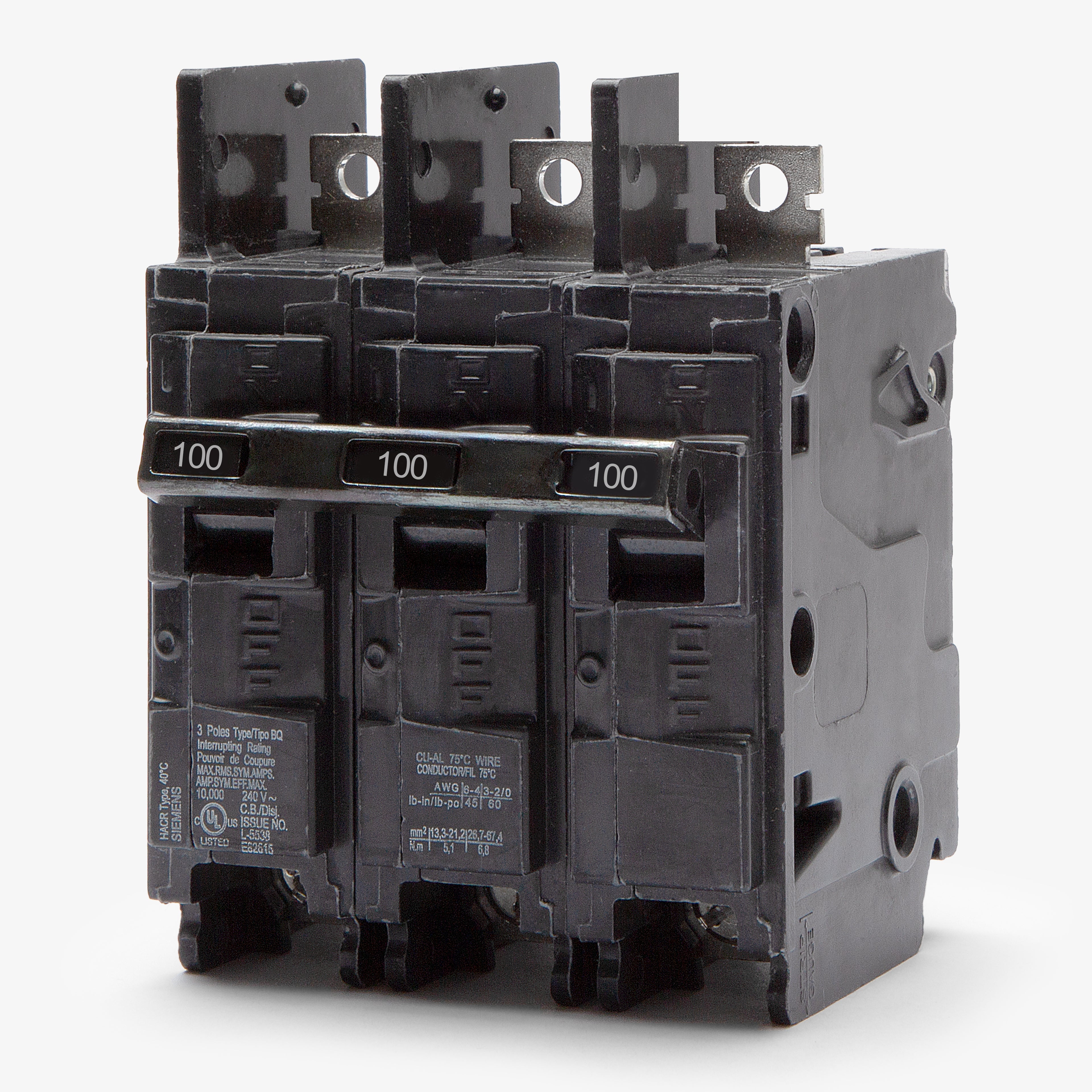

Siemens BQ3B100 - 100A 3 Pole Molded Case Circuit Breaker

New

$161.70 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the BQ series, this 100A three-pole molded case circuit breaker delivers standard commercial overcurrent protection. It features a thermal-magnetic trip unit configured for 240VAC systems. Designed for seamless integration, the unit installs into Siemens P1 panelboards and legacy ITE enclosures. The bolt-on mounting style ensures a secure mechanical connection for demanding environments. Rated at 10kA interrupting capacity, this HACR-certified component accepts 8-1 AWG copper wire.

Specifications

Brand Siemens
Series BQ
Part Number BQ3B100
Amperage 100A
Voltage 240VAC
Poles 3
Phase 3
AIC Rating 10kA @ 240VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1 Panelboards, ITE Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 8-1 AWG (Cu), 6-1/0 AWG (Al)
Max Wire 1 AWG (Cu), 1/0 AWG (Al)
Min Wire 8 AWG (Cu), 6 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, UL 489
Approval CSA, HACR, UL
Temp Rating 40C
