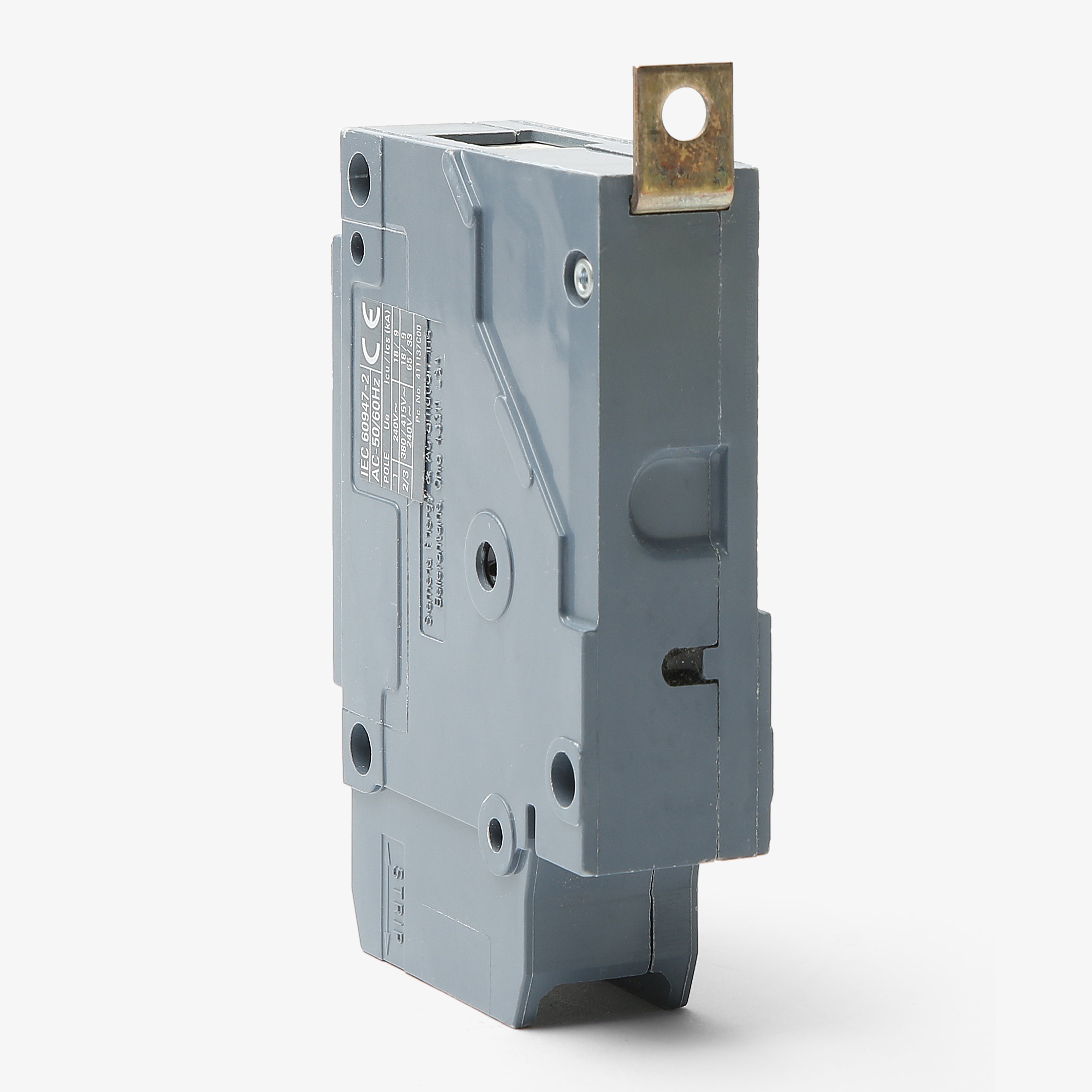

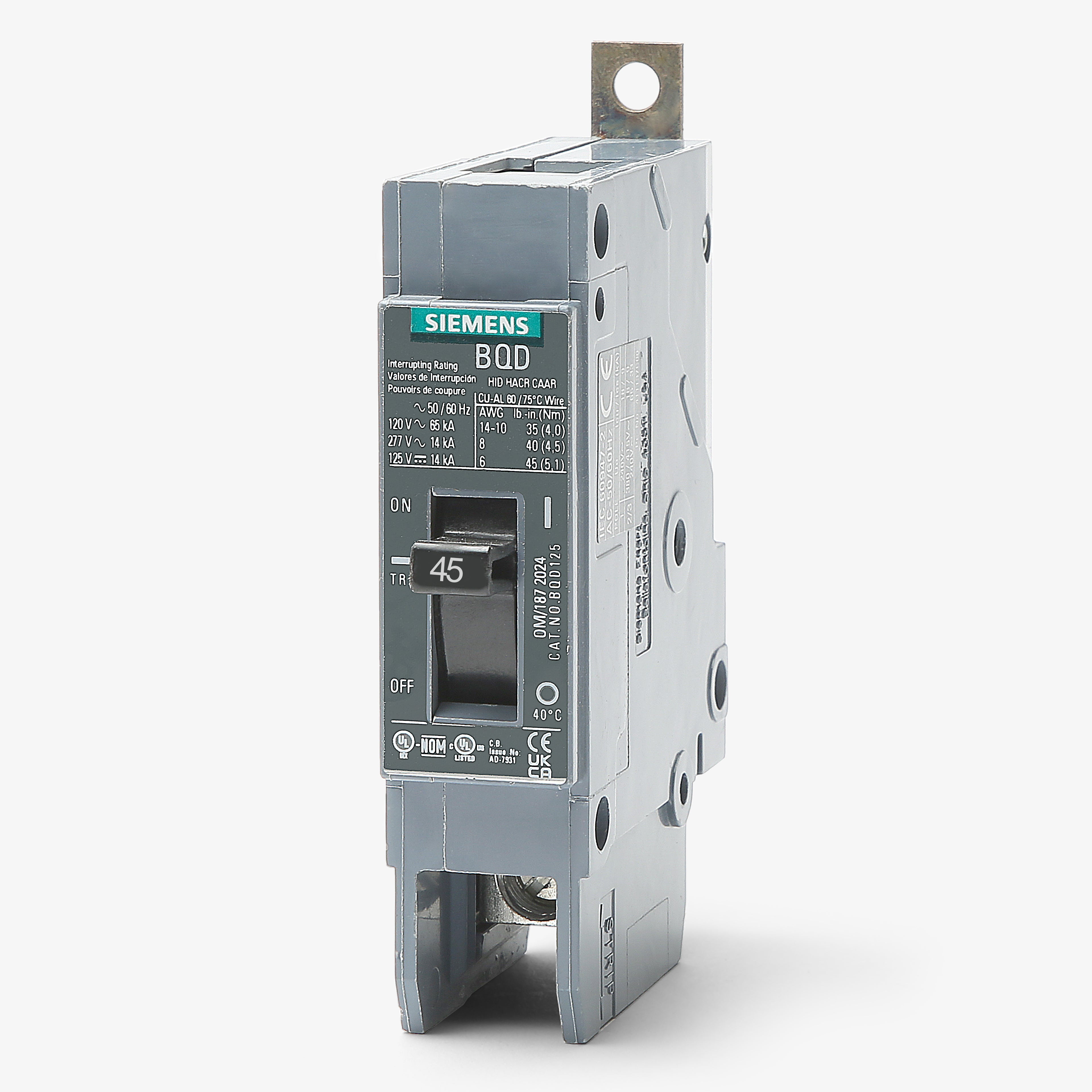

Siemens BQD145 Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
Siemens
BQD145
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQD145 - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description

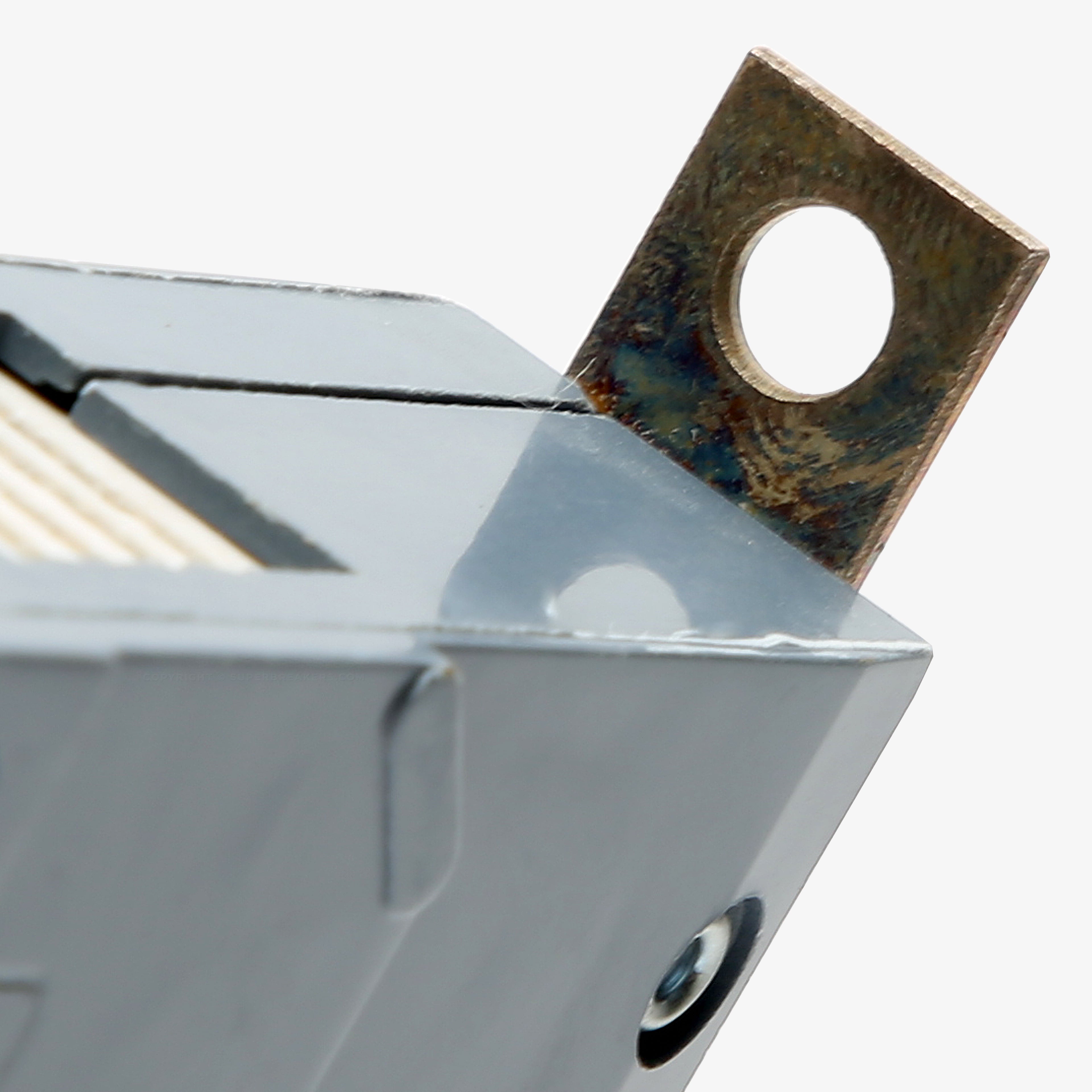

Providing 45 amps of thermal-magnetic protection, the Siemens BQD145 is a 1-pole molded case circuit breaker optimized for commercial facilities. It operates at up to 277VAC, delivering a 14 kAIC interrupting rating to safeguard critical branch circuits. This BQD frame breaker fastens securely into Siemens P1, P2, P3, P4, and P5 panelboards via a standard bolt-on connection. It accepts 8-1 AWG copper or 6-1/0 AWG aluminum wiring for flexible installation. Features include HACR and HID ratings.Specifications
| Brand | Siemens |
|---|---|
| Series | BQD |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the Siemens BQD145?
The BQD145 is a bolt-on circuit breaker designed specifically for use in Siemens commercial panelboards, including the P1, P2, P3, P4, and P5 series. It is not compatible with standard residential load centers.
Can I install the BQD145 in a standard Siemens residential load center?
No. The BQD145 is a commercial bolt-on breaker and will not fit in standard Siemens residential load centers, such as the EQ, PL, PN, or SN series. Those panels typically require plug-on QP or QT type breakers.
What wire sizes are accepted by the lugs on the BQD145?

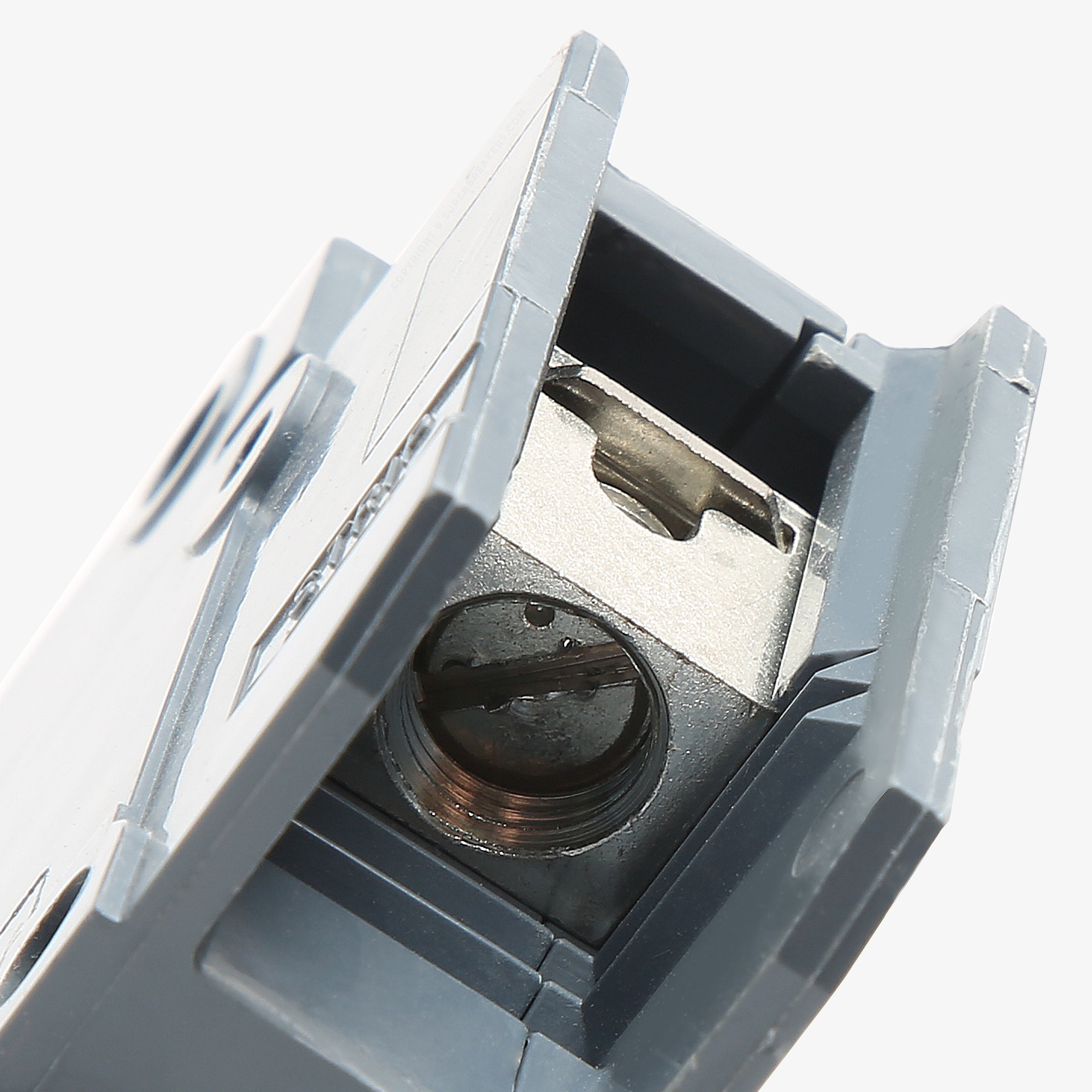

The load side lugs on this 45A breaker accept 8 to 1 AWG copper wire, or 6 to 1/0 AWG aluminum wire. Always ensure connections are torqued to the manufacturer specifications printed on the breaker label during installation.
Is the BQD145 suitable for DC voltage applications?
Yes, this breaker is rated for use in DC systems up to 125VDC, where it provides an interrupting capacity of 14kA. This makes it suitable for specific control circuits, battery backups, and industrial DC applications.
Is there a DIN rail mount equivalent for the BQD145?
Yes. If your application requires a DIN rail mounted or cable-in/cable-out version of this breaker, you should use the Siemens CQD series, specifically the CQD145. The BQD series is strictly for bolt-on panelboard mounting.
What type of trip mechanism does the BQD145 use?
It utilizes a non-interchangeable, fixed thermal magnetic trip unit. The thermal component protects against prolonged overloads, while the magnetic instantaneous function protects against severe short circuits.
